wedi Underfloor Heating.

wedi underfloor heating – dry installation heating boards for bathrooms

wedi underfloor heating is the ideal solution for creating a warm, comfortable bathroom floor in a short time. Thanks to the dry installation system with pre-routed heating boards, renovation time is significantly reduced while providing even, pleasant heat distribution. Perfect for both new builds and renovation projects.

Dry installation underfloor heating with minimal build-up height

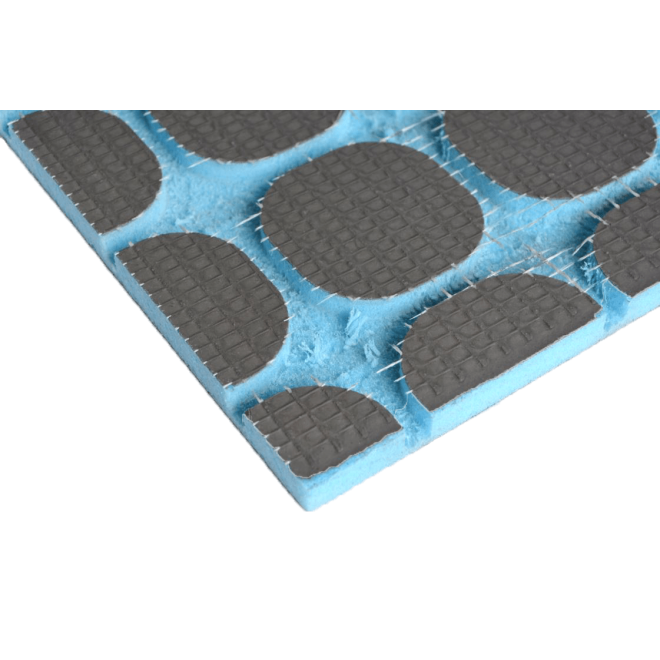

The heating boards feature a blue core made from (H)CFC-free extruded polystyrene (XPS), finished with a glass-fibre reinforced mortar coating. The pre-cut channels are designed for 12 mm heating pipes with a 5-layer, 100% diffusion-tight outer layer. This makes the system ideal for cement-free dry underfloor heating installations.

Comfortable climate system by wedi & Uniwarm

Developed in cooperation with Uniwarm, the wedi climate system combines heating, cooling and a stable tiling base in one integrated solution. The boards are suitable for concrete subfloors as well as timber floors and can be easily connected to existing heating systems.

Benefits of wedi underfloor heating boards

• ➕ Fully waterproof heating boards
• ➕ Very low build-up height – ideal for renovations
• ➕ Pre-routed channels for fast pipe installation
• ➕ Lightweight and easy to handle
• ➕ Suitable for concrete and wooden subfloors
• ➕ Heating, cooling and tile backer in one system
• ➕ Fast response to heating and cooling demand
• ➕ Durable and energy-efficient performance
• ➕ Compatible with existing heating installations
• ➕ Suitable for various floor finishes

Installing wedi underfloor heating

Installing wedi underfloor heating is quick and straightforward. Lay the boards onto the subfloor and press the heating pipes directly into the routed channels. The channels are then filled using wedi 320 filler, which can also be used as tile adhesive. Depending on the chosen finish, the boards can be tiled directly or covered with PVC, wood or laminate flooring.

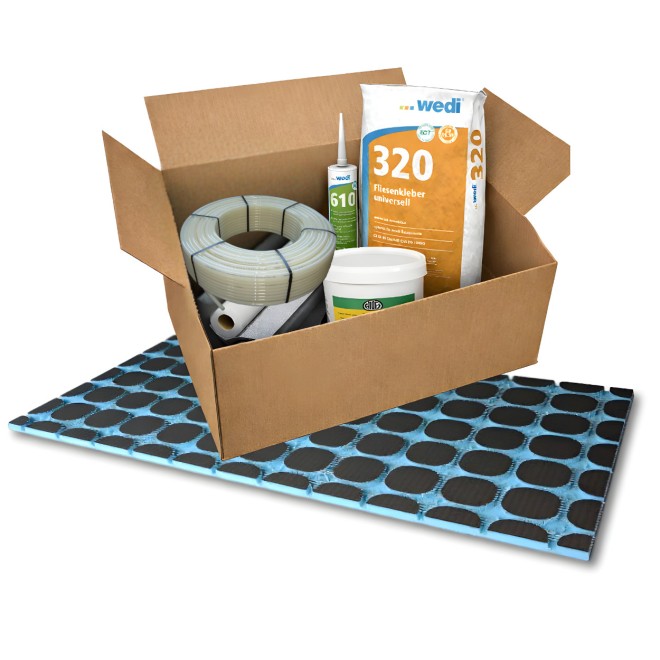

Required installation components

• ➕ wedi 610 adhesive
• ➕ wedi 320 filler / tile adhesive
• ➕ 12 mm underfloor heating pipe
• ➕ Underfloor heating manifold with connectors
• ➕ wedi shower tray or wedi Building Board (optional)

Why choose wedi underfloor heating?

wedi underfloor heating offers comfort, speed and reliability. The lightweight system is fully waterproof, easy to install and suitable for both professionals and DIY users. Choose a future-proof solution and enjoy the luxury of a warm bathroom floor every day.

Order wedi online today and experience superior underfloor heating comfort.
