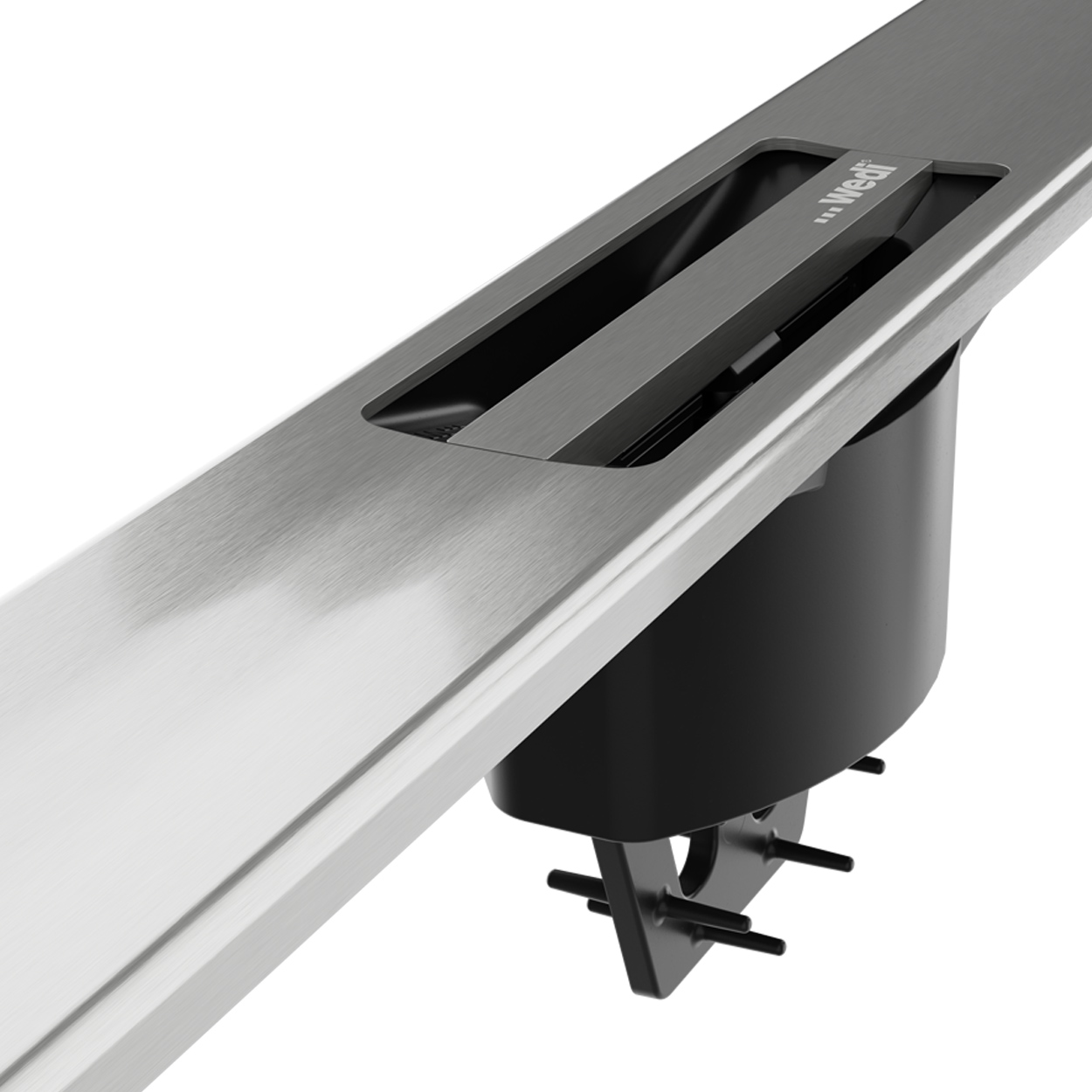

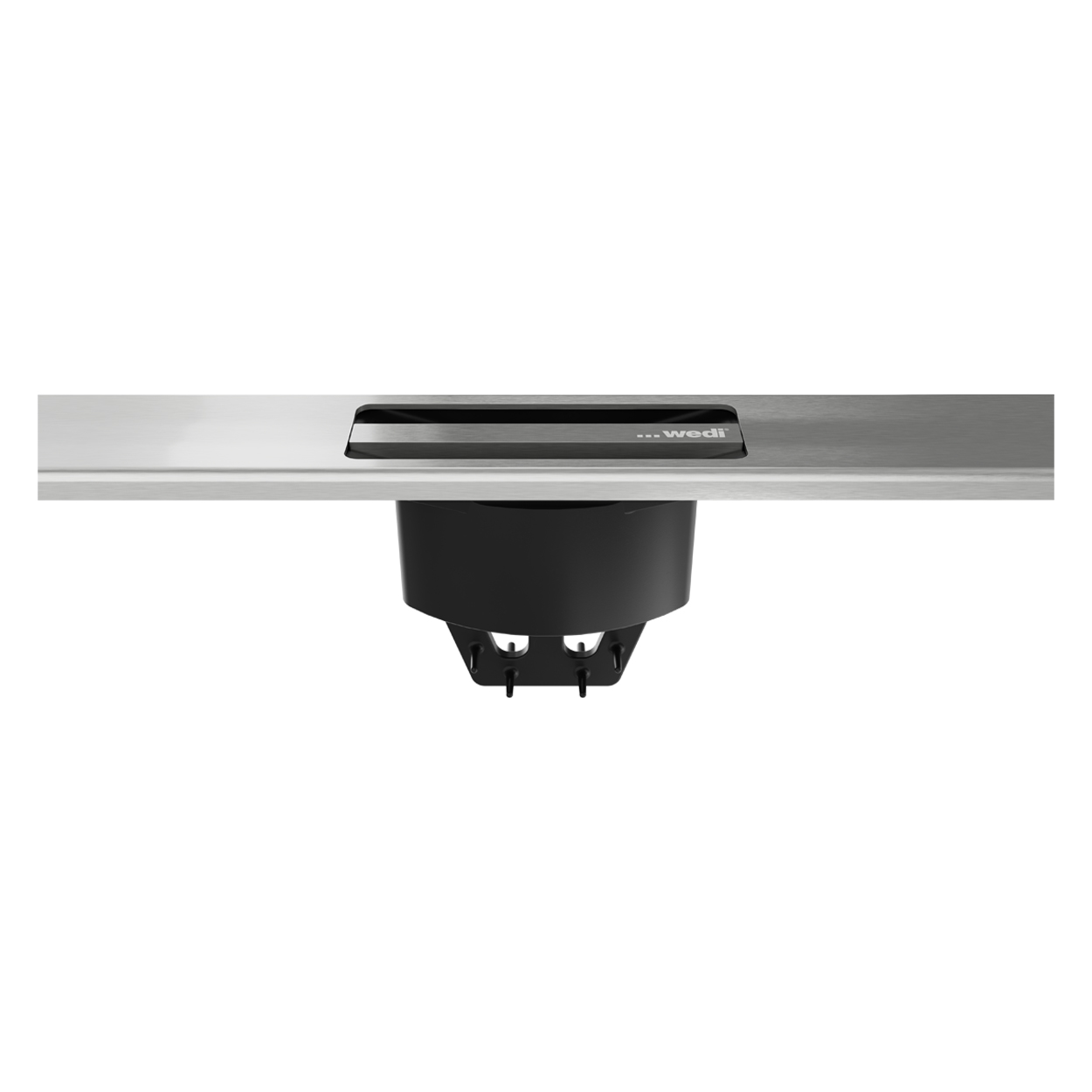

wedi Fundo Flex Stainless Steel Shower Drain 1.0 – cut-to-size design drain for maximum flexibility
✔️ Free drain positioning ✔️ Cut-to-size ✔️ Low installation height ✔️ Easy to maintain ✔️ Suitable for timber and concrete floors
The wedi Fundo Flex Stainless Steel Shower Drain 1.0 is a high-quality, slim linear drain developed specifically for the modular Fundo Flex system. This shower drain can be cut to size, allowing flexible installation in almost any walk-in shower. It is ideal for situations where a fixed drain position is not possible or not desired, such as renovation projects or complex floor constructions.
Why choose the Fundo Flex shower drain?
This shower drain is the ideal solution when standard Fundo shower floors are not suitable due to floor joists, pipework or specific design requirements. Thanks to its free positioning, you can determine exactly where the drain is installed: directly against the wall, further away from the wall or centrally within the shower area.
The wedi Fundo Flex Stainless Steel Shower Drain 1.0
Brand: wedi
System: Fundo Flex
Material: Stainless steel
Lengths: 1,200 mm or 1,600 mm
Width: 35 mm
Thickness: approx. 6 mm
Suitable for tile thicknesses from 6 to 25 mm
Cut-to-size for maximum design freedom
Freely positionable drain within the shower floor
Included: profile with adapter, drain grate with hair catcher and cover cap
Completing the Fundo Flex system
wedi Fundo Flex channel element (required)
wedi Fundo Wave drain DN-50 or DN-40 (required)
wedi Fundo Flex sloping board (with or without rebate, depending on the installation)
wedi medium-bed mortar for bonding (required)
wedi sealing set and slope profiles (optional)
wedi Fundo Flex Stainless Steel Shower Channel 1.0 – flexible drain solution for bespoke walk-in showers
The wedi Fundo Flex Stainless Steel Shower Channel 1.0 is a slim, cut-to-length shower channel that forms part of the modular Fundo Flex system. This shower channel is designed for situations where maximum freedom is required when positioning the drain. Ideal for renovations, bespoke solutions and bathrooms where standard shower trays are not suitable due to floor joists, pipework or specific design requirements.
Free positioning of the drain
While traditional shower trays have a fixed drain position, the Fundo Flex shower channel offers complete design freedom. The channel can be installed directly against the wall, further away from the wall or even centrally within the shower area. When combined with the Fundo Flex channel element and matching sloping panels, this creates a technically reliable and fully waterproof solution without major alterations to the floor construction.
Free positioning of the drain within the shower floor
Suitable for complex floor constructions and renovation projects
Ideal when dealing with obstacles such as joists or pipework
Suitable for timber and concrete floors
Cut-to-length design with a sleek stainless steel finish
The wedi Fundo Flex Stainless Steel Shower Channel 1.0 is available in lengths of 1,200 mm and 1,600 mm and can easily be cut to size. The slim stainless steel profile creates a modern, minimalist appearance and is suitable for tile thicknesses from 6 to 25 mm. Thanks to the removable cover with integrated hair catcher, the shower channel is easy to clean and maintain.
Cut-to-length for precise installation
Stainless steel design with a clean, modern look
Suitable for tile thicknesses from 6 to 25 mm
Low-maintenance design with integrated hair catcher
Part of the Fundo Flex system
This shower channel is an essential component of the wedi Fundo Flex system and is always used in combination with the Fundo Flex channel element and the Wave drain. Depending on the installation situation, one or more sloping panels are used to create the correct gradient towards the drain. When combined with wedi waterproofing systems, this results in a fully waterproof shower solution without wet construction processes.
Required for a complete installation
wedi Fundo Flex channel element (required)
wedi Fundo Wave drain DN-50 or DN-40 (required)
wedi Fundo Flex Stainless Steel Shower Channel 1.0 (this product)
wedi Fundo Flex sloping panels (with or without rebate)
wedi medium-bed adhesive mortar
wedi sealing kit and slope profiles (optional)
Specifications
Manufacturer
wedi
Product name
wedi Fundo Flex Stainless Steel Shower Channel 1.0
System
wedi Fundo Flex
Type
Shower channel / drain
Material
Stainless steel
Lengths
1,200 mm / 1,600 mm (cut-to-length)
Width
approx. 35 mm
Thickness
approx. 6 mm
Suitable tile thickness
6 – 25 mm
Maintenance
Removable cover with integrated hair catcher
Application
Walk-in showers with flexible drain positioning
A detailed technical drawing of the wedi Fundo Flex Stainless Steel Shower Channel 1.0 is available on request.
Part of the complete wedi system
The wedi Fundo Flex Stainless Steel Shower Channel 1.0 forms part of a complete, flexible and waterproof construction system together with the channel element, Wave drain, sloping panels and sealing systems – ideal for modern walk-in showers with maximum design freedom.
What is the wedi Fundo Flex?
The wedi Fundo Flex is a modular shower floor system that offers maximum freedom when positioning the shower drain. Unlike standard shower trays with a fixed drain location, the Fundo Flex allows you to determine the drain position yourself. This makes the system particularly suitable for renovations, bespoke solutions and bathrooms with complex floor constructions.
Why choose the Fundo Flex instead of a standard Fundo shower tray?
With standard Fundo shower trays, the drain position is fixed. The wedi Fundo Flex removes this limitation by allowing free positioning of the shower channel. This means existing pipework or floor joists do not need to be altered, and the bathroom design can remain the leading factor. The result is greater technical flexibility and design freedom.
Can the wedi Fundo Flex be used on timber floors?
Yes, the wedi Fundo Flex is suitable for both timber and concrete floor constructions. Thanks to its lightweight, waterproof XPS material and low system build-up height, it is particularly well suited for timber joist floors and renovation projects where structural load and installation height are critical factors.
What is the installation height of the wedi Fundo Flex?
The installation height of the Fundo Flex system is low and depends on the selected components and installation situation. Factors such as the type of slope panels, the chosen Wave drain (DN-40 or DN-50) and the use of a support element all play a role. This flexibility allows the system to be used even where installation height is limited.
Which components are required for a complete Fundo Flex installation?
The wedi Fundo Flex is a modular system consisting of several components. Depending on the installation requirements, the following elements are needed:
wedi Fundo Flex channel element – forms the basis for free positioning of the shower channel
wedi Fundo Flex slope panels – provide a correct and reliable slope towards the drain
wedi Fundo Flex stainless steel shower channel 1.0 – cut-to-length design channel for flexible placement
wedi Wave drain DN-50 or DN-40 – low-maintenance drain with integrated trap
wedi support element for the Wave drain – ensures stable and precise installation without using cement
wedi medium-bed mortar – for bonding the system components
wedi sealing set and slope profiles (optional)
What is the advantage of the wedi support element for the Wave drain?
The wedi support element ensures stable and accurate positioning of the Wave drain. This eliminates the need to build up the drain with cement or mortar, making installation faster and more straightforward. The support element increases installation reliability and contributes to a technically sound and durable drainage solution.
How does the wedi Fundo Flex differ from other walk-in shower systems?
The unique combination of freely positionable drainage, low installation height and a fully waterproof, tested system sets the Fundo Flex apart. It offers maximum design freedom without compromising on technical reliability or waterproofing performance.
Should the wedi Fundo Flex be combined with wedi building boards?
Combining the Fundo Flex with wedi building boards is not mandatory, but it is highly recommended. Wedi building boards provide a stable, waterproof and well-insulated substrate and allow a complete, integrated wedi system to be used throughout the entire shower area.
Is the wedi Fundo Flex easy to maintain?
Yes, the shower channel features a removable cover with an integrated hair catcher, making cleaning easy. The Wave drain is designed for optimal flow performance and ease of maintenance and includes an integrated odour trap.
For which situations is the wedi Fundo Flex most suitable?
The Fundo Flex is ideal for:
Renovation projects where existing pipework or floor joists cannot be relocated
Bathrooms with limited installation height
Designs featuring long or freely positioned shower channels
Timber and concrete floors requiring a lightweight, waterproof solution
Where can I get advice on the wedi Fundo Flex?
Each Fundo Flex product page lists the compatible accessories and system components. If you need advice on the correct system build-up for your project, our specialists are happy to assist you.
Discover the wedi Fundo Flex system through our short product videos. Learn more about the Wave Drain, Shower Channel, Sloping Board, Channel Element and other key components for a fast, reliable and waterproof walk-in shower installation.
