Wedi Fundo linear drain outlet DN 50 vertical
Order before 12pm: 1 working day | Delivery date will be arranged
- Description
- More info
- FAQ
- Documentation
- Reviews
wedi Fundo linear drain outlet vertical DN 50 – for channel drain shower floors
The wedi Fundo linear drain outlet vertical DN 50 is a complete drain set for wedi Fundo shower floors with a channel drain. This drain is used for shower floors where water is discharged via a channel and the outlet connects vertically through the floor.
➕ Vertical connection for direct downward drainage
➕ Standard DN 50 outlet with high drainage capacity
➕ Specifically designed for Fundo shower floors with channel drain
➕ Complete set, ready for installation

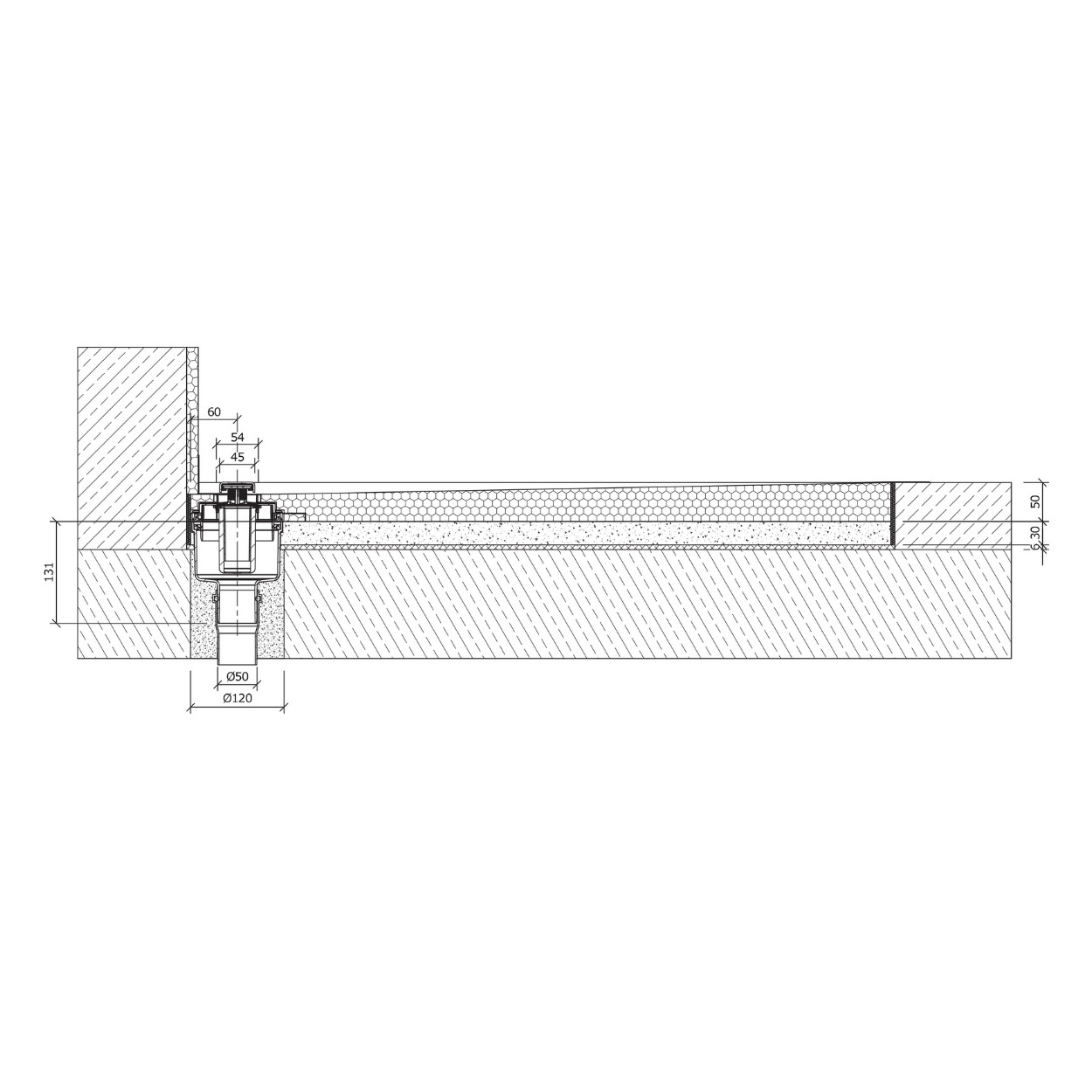

When do you choose a vertical linear drain outlet?
This linear drain outlet is suitable when the drain pipe can be connected straight downward and is used with wedi Fundo shower floors featuring a channel drain, such as Riolito and Riolito Neo. The vertical connection ensures efficient and reliable water drainage.
Technical specifications
- Brand: wedi
- Type: Linear drain outlet for channel drain shower floor
- Drain direction: Vertical
- Drain diameter: DN 50
- Drainage capacity: 1.1 litres per second
- Standard: EN 1253
- Suitable for: Fundo Riolito, Riolito Neo, RioLigno
Combine this linear drain outlet with a suitable wedi Fundo channel drain shower floor and matching sealing systems for a safe, waterproof and durable shower solution.
wedi Fundo linear drain outlet vertical DN 50 – for channel drain shower floors
The wedi Fundo linear drain outlet vertical DN 50 is a complete drain set for wedi Fundo shower floors with a channel drain. Designed for a vertical connection through the floor, it provides safe, watertight and reliable drainage within the wedi system.
Vertical outlet for wedi channel drain systems
With channel drain shower floors, water is discharged via a linear channel rather than a central point outlet. This vertical DN 50 linear drain outlet is specifically matched to wedi Fundo shower floors such as Riolito and Riolito Neo, offering high drainage capacity in a compact, reliable design.
- Vertical connection for direct downward drainage
- Standard DN 50 outlet with high drainage capacity
- Specifically designed for channel drain shower floors
- Complete set, ready for installation
Which wedi drain do you need?
wedi offers different drains tailored to the type of shower floor (point outlet or channel drain), the available installation space and the required connection direction. The overview below shows the most commonly used drains for wedi Fundo shower floors. The drain featured on this page is shown in bold.
Overview of wedi drains
| Drain type | Connection direction | Diameter | Application | Suitable for |
| Point drain | Vertical | DN 50 | Point outlet | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain | Horizontal | DN 50 | Point outlet | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain Mini Max | Horizontal | DN 40 | Point outlet | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Linear drain outlet | Vertical | DN 50 | Channel drain | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN 40 Mini Max | Channel drain | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN 50 | Channel drain | Fundo Riolito, Riolito Neo, RioLigno |

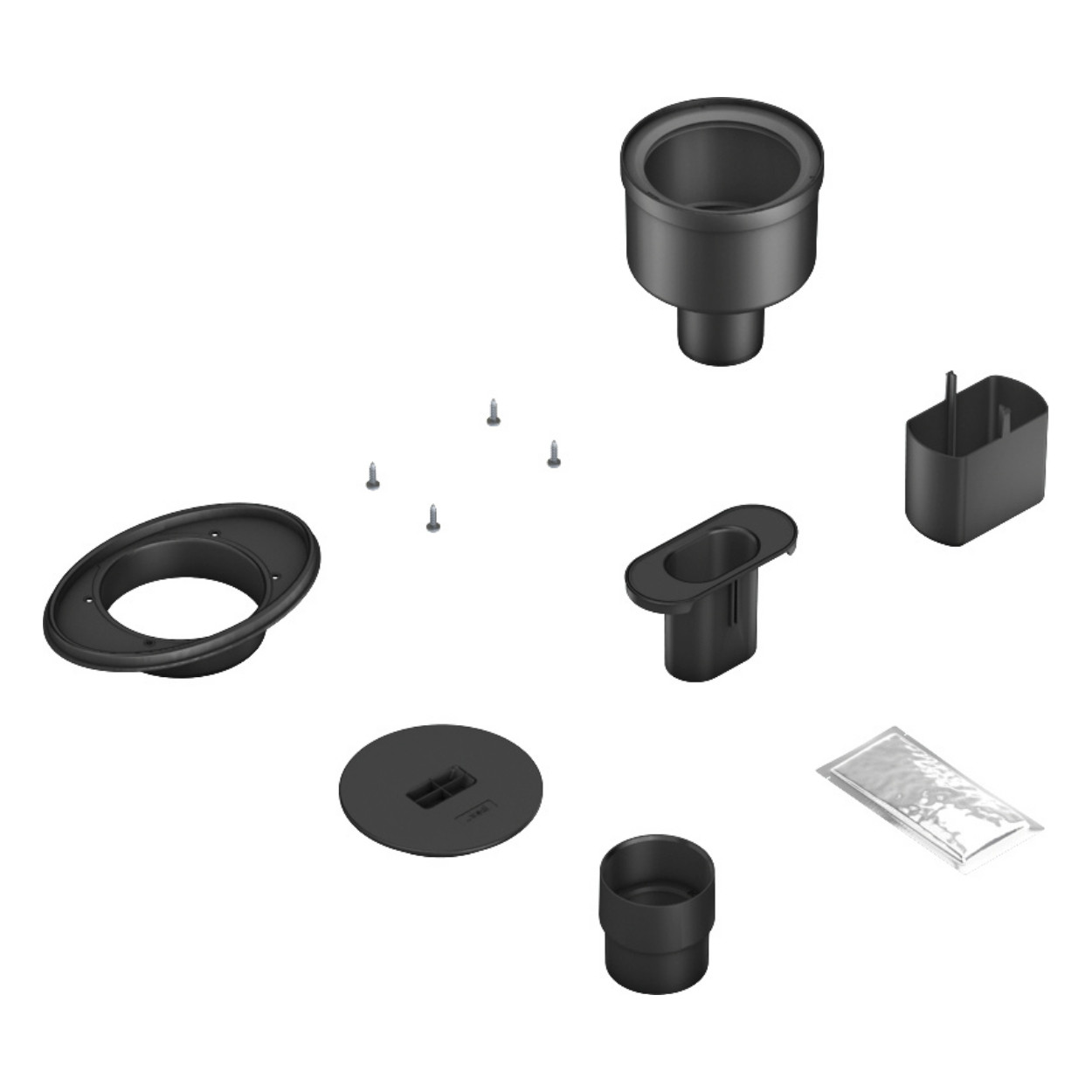

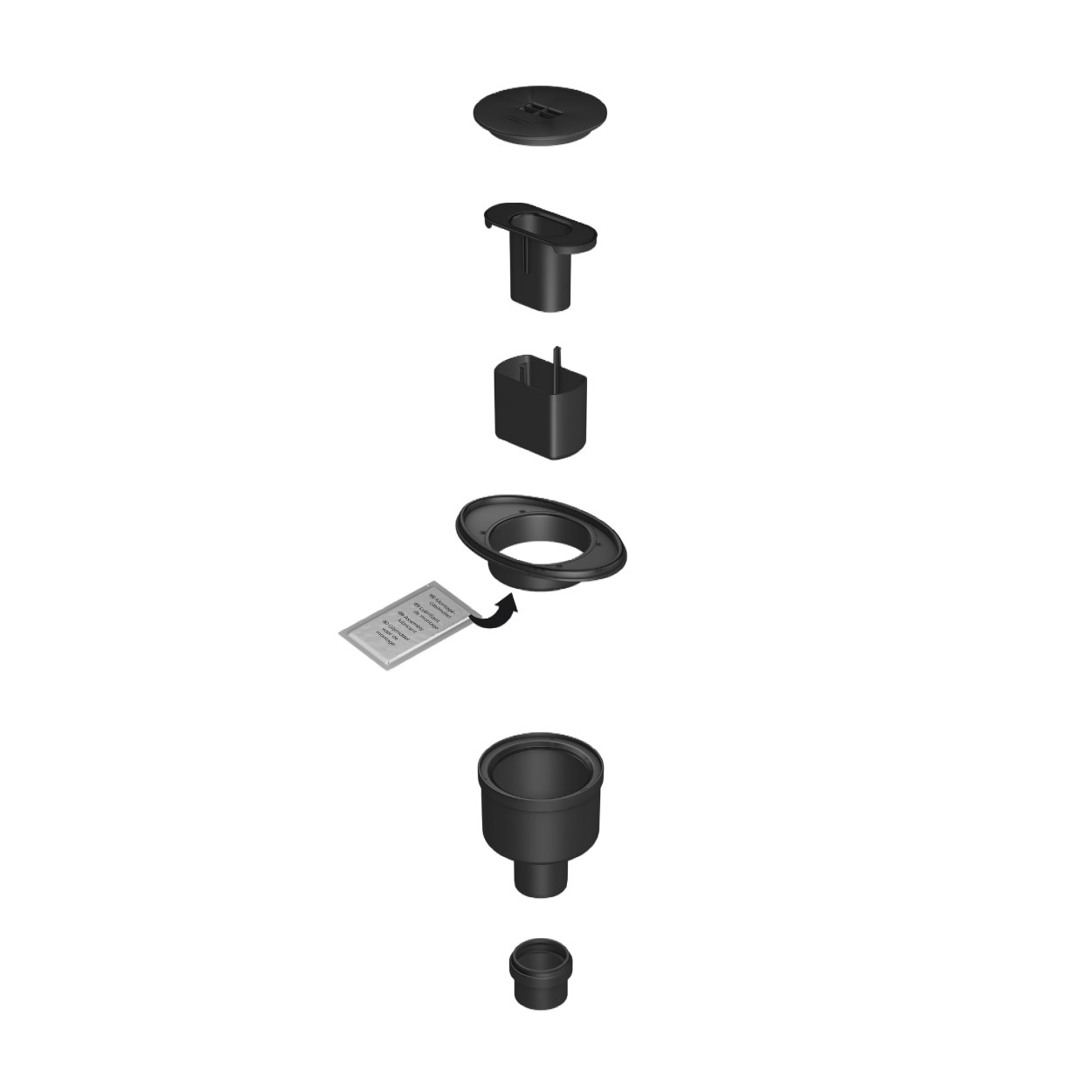

Complete delivery according to the wedi system
This wedi Fundo linear drain outlet is supplied as a complete set, ensuring all components fit perfectly together and meet the requirements of the wedi system.
- 1 × vertical DN 50 linear drain outlet
- 1 × adapter DN 56 (GB)
- 1 × siphon
- 1 × odour trap with seal
- 1 × cover cap
- 1 × installation adhesive (glue)
- Fixing screws for adapter
Part of the complete wedi system
Combined with a wedi Fundo channel drain shower floor, matching sealing systems and accessories, this linear drain outlet provides a safe, watertight and durable solution for modern walk-in showers with channel drainage.
Which drain do I need for my wedi Fundo shower floor?
The correct drain depends on the type of wedi Fundo shower floor and the way water is discharged. wedi distinguishes between shower floors with a point drain and shower floors with a linear drain.
- Point drains are used with Fundo Primo, Ligno Plus, Borgo, Trolio and Nautilo.
- Linear drains are used with Fundo Riolito, Riolito Neo and RioLigno.
What is the difference between a vertical and a horizontal drain?
The difference between vertical and horizontal drains lies in the direction of water discharge and the required installation depth.
- A vertical drain discharges water straight downwards and is the most commonly used option when sufficient space below the floor is available.
- A horizontal drain discharges water sideways and is used when the floor build-up is limited or when pipework cannot be installed vertically.
What is the difference between a round and a square drain grate?
The difference between round and square drain grates is mainly aesthetic. The technical performance and drainage capacity are the same.
- Square grates are often chosen for modern bathrooms with clean, straight tile layouts.
- Round grates have a more neutral appearance and are commonly used in classic or timeless bathroom designs.
What is a Mini Max drain?
A Mini Max drain is an extra-low horizontal drain with a smaller diameter, designed for situations with very limited installation height.
- Mini Max drains have a DN 40 connection.
- They are used when a DN 50 drain requires too much space.
- Suitable for single shower areas with limited water flow.
When do I need a drain with a fire stop?
A drain with an integrated fire stop is required when the shower floor is installed in a separating floor between dwellings, such as in apartment buildings or other forms of multi-storey construction.
- The integrated fire stop prevents fire from spreading through the drain.
- No additional fire protection collars or sleeves are required.
- Fire stop drains are available for both point drains and linear drains.
Which wedi drains are most commonly used?
The most commonly selected drains depend on the building situation, but in practice the following options are used most frequently:
- DN 50 vertical point drain for standard residential construction.
- DN 50 horizontal point drain for limited floor build-up.
- Mini Max DN 40 drain for very limited installation height.
- DN 50 linear drain for shower floors with a linear outlet.
- Drains with integrated fire stop for separating floors between dwellings.
Are wedi drains supplied as complete sets?
Yes, all wedi Fundo drains are supplied as complete sets including siphon, odour trap, sealing components and installation accessories. This ensures perfect compatibility between all parts and guarantees a reliable, watertight system.
Description
wedi Fundo linear drain outlet vertical DN 50 – for channel drain shower floors
The wedi Fundo linear drain outlet vertical DN 50 is a complete drain set for wedi Fundo shower floors with a channel drain. This drain is used for shower floors where water is discharged via a channel and the outlet connects vertically through the floor.
➕ Vertical connection for direct downward drainage
➕ Standard DN 50 outlet with high drainage capacity
➕ Specifically designed for Fundo shower floors with channel drain
➕ Complete set, ready for installation
When do you choose a vertical linear drain outlet?
This linear drain outlet is suitable when the drain pipe can be connected straight downward and is used with wedi Fundo shower floors featuring a channel drain, such as Riolito and Riolito Neo. The vertical connection ensures efficient and reliable water drainage.
Technical specifications
- Brand: wedi
- Type: Linear drain outlet for channel drain shower floor
- Drain direction: Vertical
- Drain diameter: DN 50
- Drainage capacity: 1.1 litres per second
- Standard: EN 1253
- Suitable for: Fundo Riolito, Riolito Neo, RioLigno
Combine this linear drain outlet with a suitable wedi Fundo channel drain shower floor and matching sealing systems for a safe, waterproof and durable shower solution.
More info
wedi Fundo linear drain outlet vertical DN 50 – for channel drain shower floors
The wedi Fundo linear drain outlet vertical DN 50 is a complete drain set for wedi Fundo shower floors with a channel drain. Designed for a vertical connection through the floor, it provides safe, watertight and reliable drainage within the wedi system.
Vertical outlet for wedi channel drain systems
With channel drain shower floors, water is discharged via a linear channel rather than a central point outlet. This vertical DN 50 linear drain outlet is specifically matched to wedi Fundo shower floors such as Riolito and Riolito Neo, offering high drainage capacity in a compact, reliable design.
- Vertical connection for direct downward drainage
- Standard DN 50 outlet with high drainage capacity
- Specifically designed for channel drain shower floors
- Complete set, ready for installation
Which wedi drain do you need?
wedi offers different drains tailored to the type of shower floor (point outlet or channel drain), the available installation space and the required connection direction. The overview below shows the most commonly used drains for wedi Fundo shower floors. The drain featured on this page is shown in bold.
Overview of wedi drains
| Drain type | Connection direction | Diameter | Application | Suitable for |
| Point drain | Vertical | DN 50 | Point outlet | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain | Horizontal | DN 50 | Point outlet | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain Mini Max | Horizontal | DN 40 | Point outlet | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Linear drain outlet | Vertical | DN 50 | Channel drain | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN 40 Mini Max | Channel drain | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN 50 | Channel drain | Fundo Riolito, Riolito Neo, RioLigno |
Complete delivery according to the wedi system
This wedi Fundo linear drain outlet is supplied as a complete set, ensuring all components fit perfectly together and meet the requirements of the wedi system.
- 1 × vertical DN 50 linear drain outlet
- 1 × adapter DN 56 (GB)
- 1 × siphon
- 1 × odour trap with seal
- 1 × cover cap
- 1 × installation adhesive (glue)
- Fixing screws for adapter
Part of the complete wedi system
Combined with a wedi Fundo channel drain shower floor, matching sealing systems and accessories, this linear drain outlet provides a safe, watertight and durable solution for modern walk-in showers with channel drainage.
FAQ
Which drain do I need for my wedi Fundo shower floor?
The correct drain depends on the type of wedi Fundo shower floor and the way water is discharged. wedi distinguishes between shower floors with a point drain and shower floors with a linear drain.
- Point drains are used with Fundo Primo, Ligno Plus, Borgo, Trolio and Nautilo.
- Linear drains are used with Fundo Riolito, Riolito Neo and RioLigno.
What is the difference between a vertical and a horizontal drain?
The difference between vertical and horizontal drains lies in the direction of water discharge and the required installation depth.
- A vertical drain discharges water straight downwards and is the most commonly used option when sufficient space below the floor is available.
- A horizontal drain discharges water sideways and is used when the floor build-up is limited or when pipework cannot be installed vertically.
What is the difference between a round and a square drain grate?
The difference between round and square drain grates is mainly aesthetic. The technical performance and drainage capacity are the same.
- Square grates are often chosen for modern bathrooms with clean, straight tile layouts.
- Round grates have a more neutral appearance and are commonly used in classic or timeless bathroom designs.
What is a Mini Max drain?
A Mini Max drain is an extra-low horizontal drain with a smaller diameter, designed for situations with very limited installation height.
- Mini Max drains have a DN 40 connection.
- They are used when a DN 50 drain requires too much space.
- Suitable for single shower areas with limited water flow.
When do I need a drain with a fire stop?
A drain with an integrated fire stop is required when the shower floor is installed in a separating floor between dwellings, such as in apartment buildings or other forms of multi-storey construction.
- The integrated fire stop prevents fire from spreading through the drain.
- No additional fire protection collars or sleeves are required.
- Fire stop drains are available for both point drains and linear drains.
Which wedi drains are most commonly used?
The most commonly selected drains depend on the building situation, but in practice the following options are used most frequently:
- DN 50 vertical point drain for standard residential construction.
- DN 50 horizontal point drain for limited floor build-up.
- Mini Max DN 40 drain for very limited installation height.
- DN 50 linear drain for shower floors with a linear outlet.
- Drains with integrated fire stop for separating floors between dwellings.
Are wedi drains supplied as complete sets?
Yes, all wedi Fundo drains are supplied as complete sets including siphon, odour trap, sealing components and installation accessories. This ensures perfect compatibility between all parts and guarantees a reliable, watertight system.
