Wedi Fundo linear drain outlet DN 50 vertical with fire stop
Order before 12pm: 1-5 working days | Delivery date will be arranged
- Description
- More info
- FAQ
- Documentation
- Reviews
wedi Fundo linear drain outlet with fire stop vertical DN 50 – fire-rated solution for linear drains
The wedi Fundo linear drain outlet with fire stop vertical DN 50 is a specialised drain set for wedi Fundo shower floors with a linear drain installed in fire-rated separating floors. Thanks to the integrated fire stop, this drain outlet meets fire protection requirements without the need for additional fire collars or measures.
➕ Integrated fire stop for separating floors
➕ Vertical DN 50 connection with high drainage capacity
➕ No additional fire protection measures required
➕ Complete set, ready for installation
When do you choose a linear drain outlet with fire stop?
This linear drain outlet is used when a linear drain shower floor is installed in a floor subject to fire resistance requirements, such as in apartment buildings or multi-storey residential construction. The integrated fire stop prevents fire penetration through the drain and simplifies installation.
Technical specifications
- Brand: wedi
- Type: Linear drain outlet with fire stop
- Drain orientation: Vertical
- Drain diameter: DN 50
- Drainage capacity: 1.1 litres per second
- Core drilling diameter: 160 mm
- Standard: EN 1253
- Suitable for: Fundo Riolito, RioLigno
Combine this fire-rated linear drain outlet with a suitable wedi Fundo linear drain shower floor and sealing systems for a safe, compliant and durable shower solution.
wedi Fundo linear drain outlet with fire stop vertical DN-50 – fire-rated linear drain solution
The wedi Fundo linear drain outlet with fire stop vertical DN-50 is developed for applications where a wedi Fundo linear drain shower floor is installed in a separating floor between dwellings. The integrated fire stop helps meet the required fire-safety standards without additional measures such as fire collars.
Fire-rated solution for multi-storey buildings
For bathrooms in apartments and other multi-storey buildings, stricter fire-resistance requirements apply. This linear drain outlet with fire stop helps prevent fire spread through the waste pipe and provides a safe, certified solution within the wedi system.
- Integrated fire stop within the outlet
- Designed for separating floors between dwellings
- No additional fire collars required
- Vertical DN-50 outlet with high capacity
Which wedi drain do you need?
wedi offers outlets for standard applications as well as special situations such as fire-rated floors. In the overview below you can see the most commonly used drains for wedi Fundo shower floors.
Overview of wedi drains
| Drain type | Outlet direction | Diameter | Application | Suitable for |
| Linear drain outlet | Vertical | DN-50 | Linear drain | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN-50 | Linear drain | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet Mini Max | Horizontal | DN-40 | Linear drain | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet with fire stop | Vertical | DN-50 | Linear drain / fire-rated | Fundo Riolito, RioLigno |

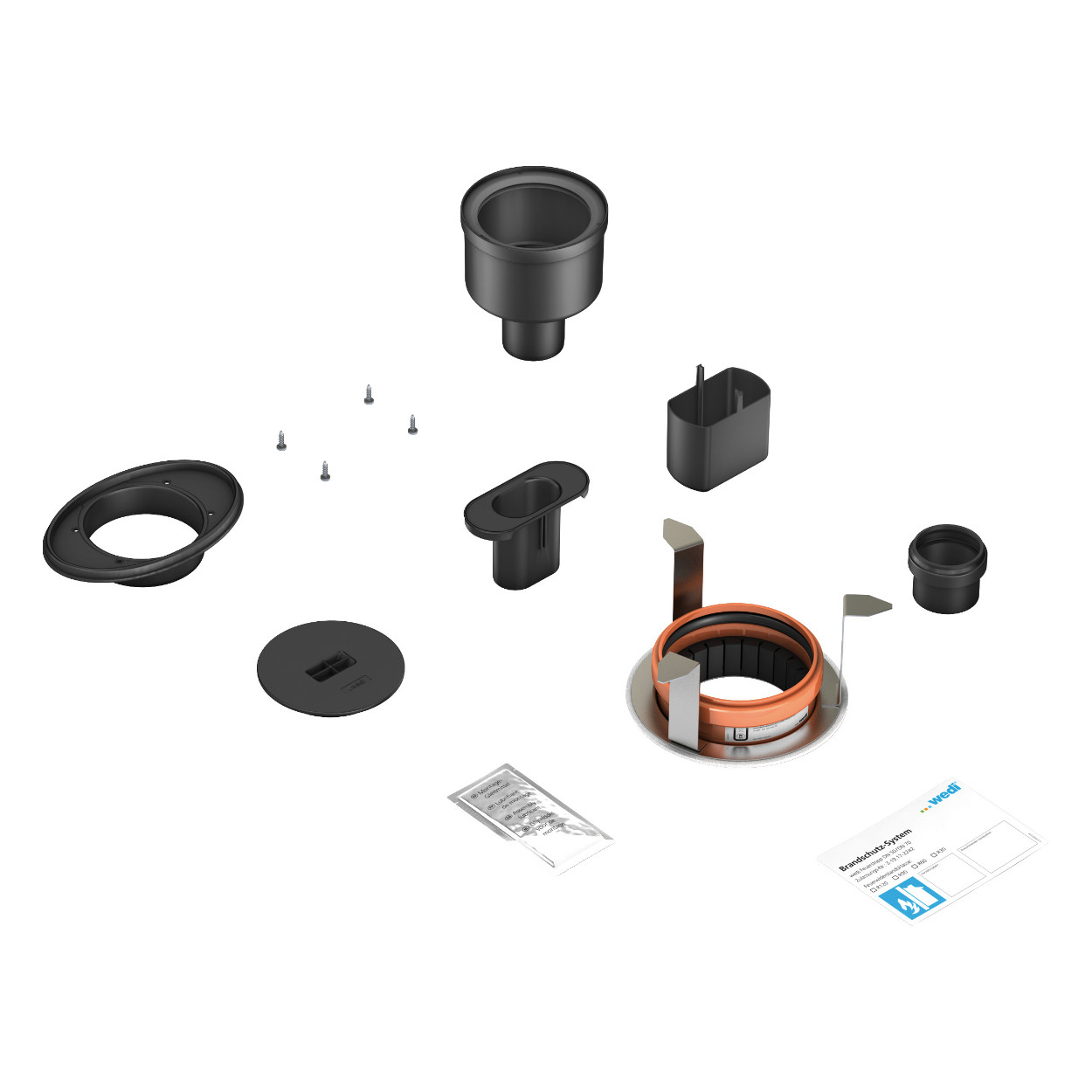

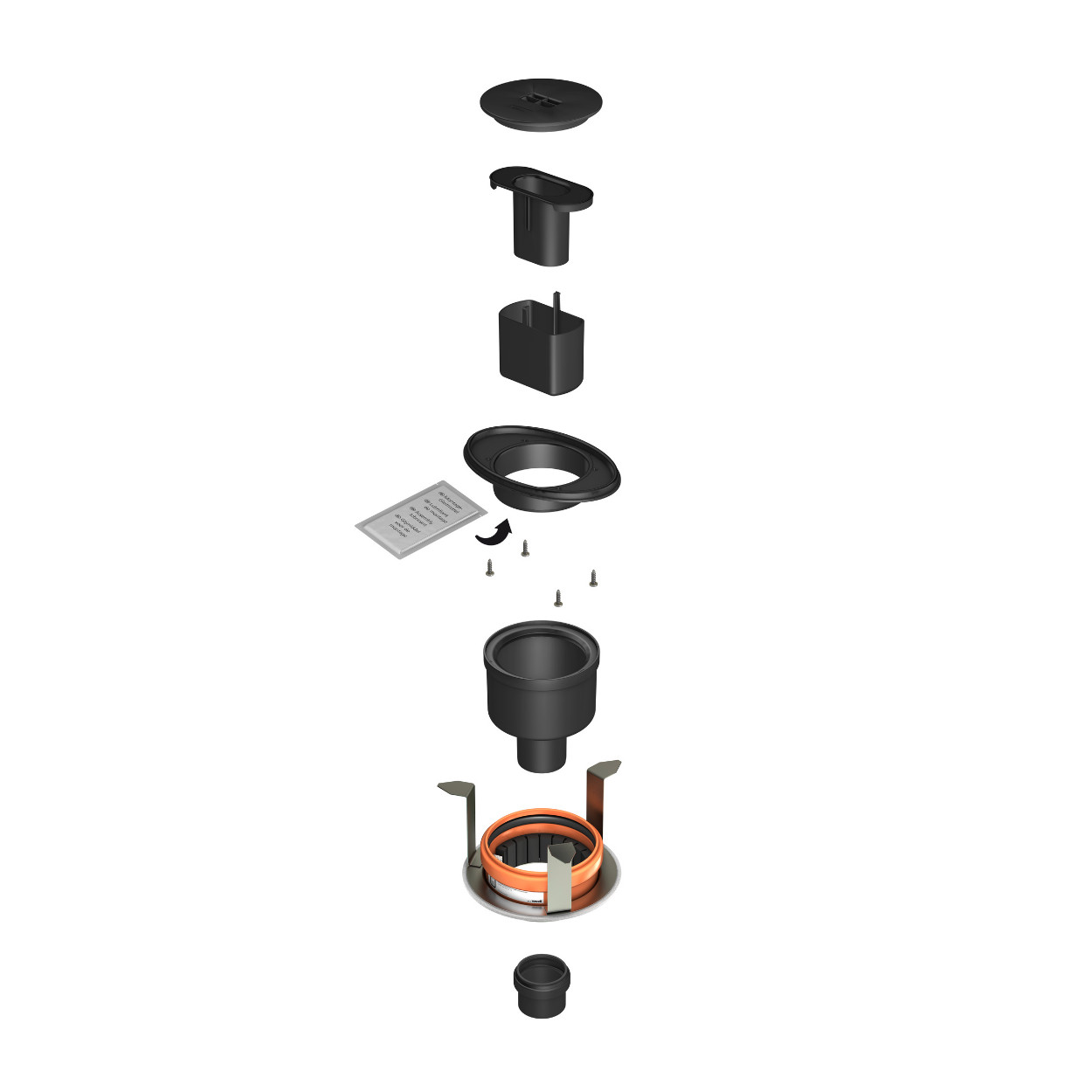

Complete delivery as part of the wedi system
This wedi Fundo linear drain outlet with fire stop is supplied as a complete set, so all parts fit together perfectly and meet both the fire-safety and technical requirements.
- 1 × vertical DN-50 linear drain outlet with fire stop
- 1 × adapter DN 56 (GB)
- 1 × trap
- 1 × odour trap with seal
- 1 × cover cap
- 1 × sealing ring
- 1 × fire stop element
- Installation adhesive and fixing material
Part of the complete wedi system
Combined with a wedi Fundo linear drain shower floor and the matching sealing systems, this fire-rated linear drain outlet provides a safe, compliant and durable solution for bathrooms in multi-storey buildings.
Which drain do I need for my wedi Fundo shower floor?
The correct drain depends on the type of wedi Fundo shower floor and the way water is discharged. wedi distinguishes between shower floors with a point drain and shower floors with a linear drain.
- Point drains are used with Fundo Primo, Ligno Plus, Borgo, Trolio and Nautilo.
- Linear drains are used with Fundo Riolito, Riolito Neo and RioLigno.
What is the difference between a vertical and a horizontal drain?
The difference between vertical and horizontal drains lies in the direction of water discharge and the required installation depth.
- A vertical drain discharges water straight downwards and is the most commonly used option when sufficient space below the floor is available.
- A horizontal drain discharges water sideways and is used when the floor build-up is limited or when pipework cannot be installed vertically.
What is the difference between a round and a square drain grate?
The difference between round and square drain grates is mainly aesthetic. The technical performance and drainage capacity are the same.
- Square grates are often chosen for modern bathrooms with clean, straight tile layouts.
- Round grates have a more neutral appearance and are commonly used in classic or timeless bathroom designs.
What is a Mini Max drain?
A Mini Max drain is an extra-low horizontal drain with a smaller diameter, designed for situations with very limited installation height.
- Mini Max drains have a DN 40 connection.
- They are used when a DN 50 drain requires too much space.
- Suitable for single shower areas with limited water flow.
When do I need a drain with a fire stop?
A drain with an integrated fire stop is required when the shower floor is installed in a separating floor between dwellings, such as in apartment buildings or other forms of multi-storey construction.
- The integrated fire stop prevents fire from spreading through the drain.
- No additional fire protection collars or sleeves are required.
- Fire stop drains are available for both point drains and linear drains.
Which wedi drains are most commonly used?
The most commonly selected drains depend on the building situation, but in practice the following options are used most frequently:
- DN 50 vertical point drain for standard residential construction.
- DN 50 horizontal point drain for limited floor build-up.
- Mini Max DN 40 drain for very limited installation height.
- DN 50 linear drain for shower floors with a linear outlet.
- Drains with integrated fire stop for separating floors between dwellings.
Are wedi drains supplied as complete sets?
Yes, all wedi Fundo drains are supplied as complete sets including siphon, odour trap, sealing components and installation accessories. This ensures perfect compatibility between all parts and guarantees a reliable, watertight system.
