wedi Fundo Plano Linea – the ultra-slim walk-in shower tray with integrated linear drain

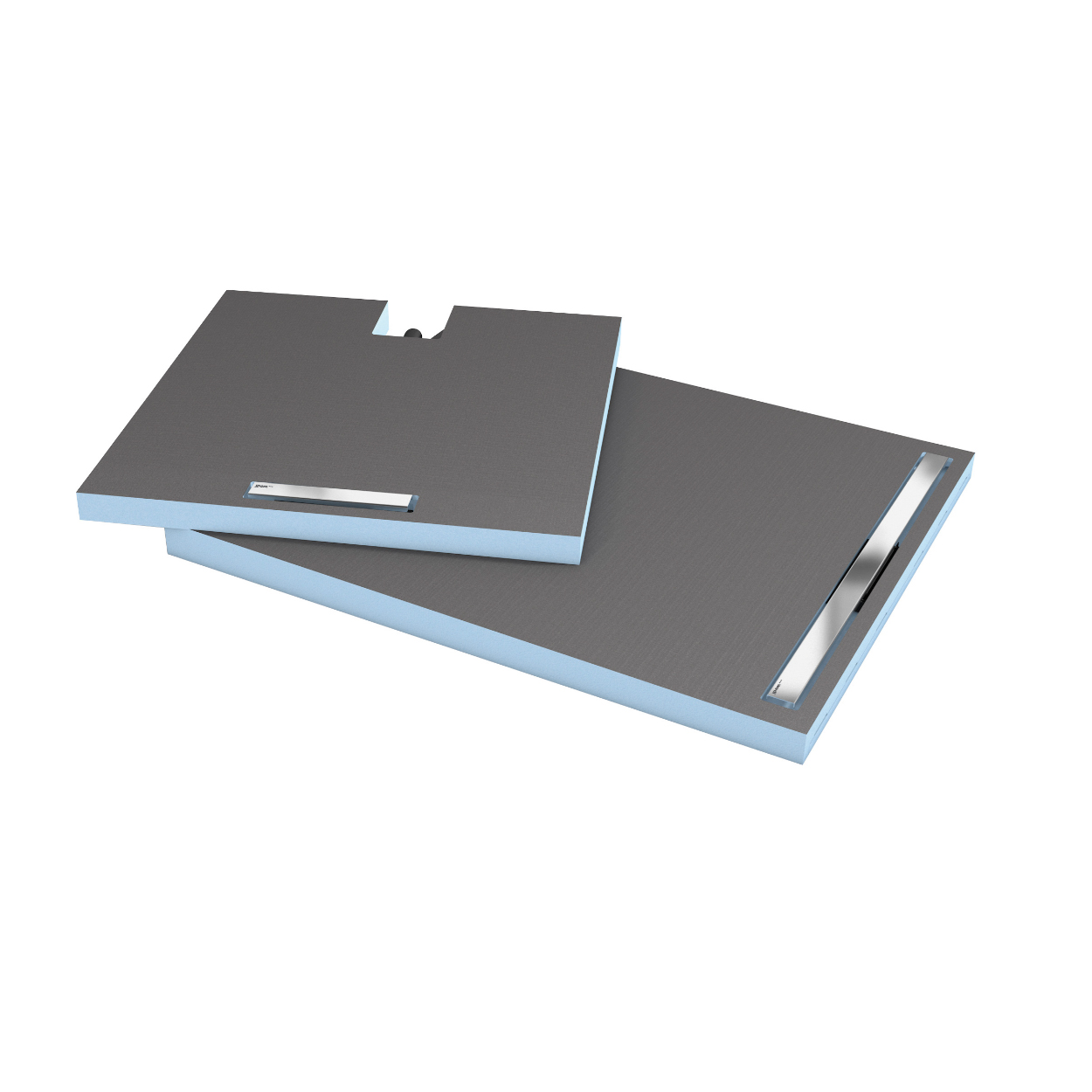

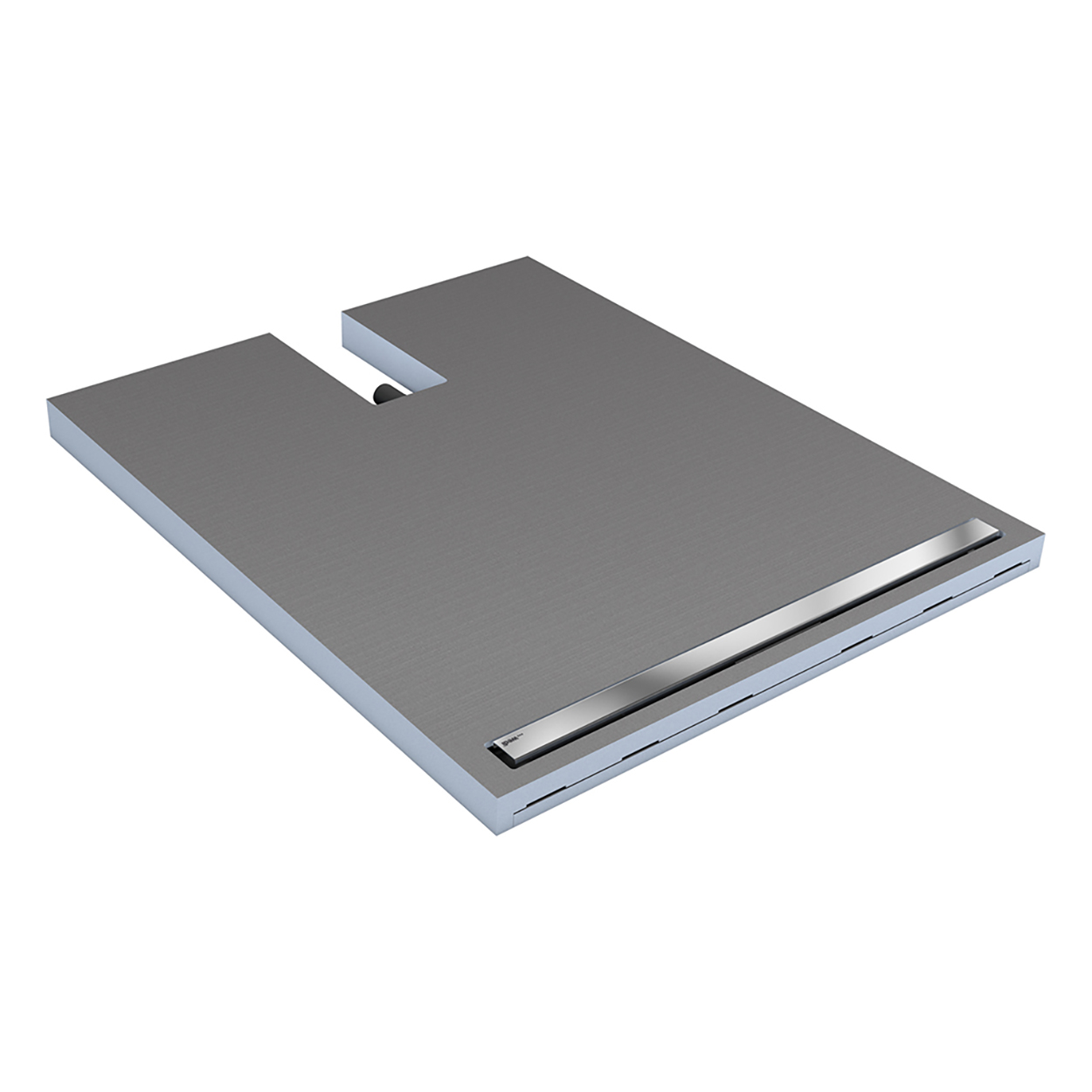

The wedi Fundo Plano Linea is a complete, factory-prepared walk-in shower tray with an integrated linear drain and an overall installation height of just 70 mm. Designed for situations where build-up height is limited but reliability, waterproofing and ease of installation are essential. Ideal for both renovation projects and modern new-build bathrooms.
➕ Ultra-slim 70 mm installation height – perfect for low floor build-ups
➕ 100% waterproof XPS shower tray
➕ Prefabricated slope for reliable water drainage
➕ Integrated DN-40 linear drain, factory-sealed
➕ Lightweight and quick to install
➕ Compatible with wedi Fundo Top and design drain covers
Technical specifications
- Type: Complete walk-in shower tray with integrated linear drain
- Installation height: 70 mm
- Drain: Integrated linear drain (DN-40)
- Drain position: Off-centre
- Material: XPS rigid foam with fibre-reinforced mortar layer
- Factory-formed slope: Yes
Ultra-slim, safe and waterproof shower construction
With the wedi Fundo Plano Linea you choose a reliable, ready-to-tile shower tray that combines minimal installation height with maximum safety. Combine with wedi sealing systems and optional wedi Fundo Top for a seamless, low-maintenance shower solution.
wedi Fundo Plano Linea – the ultra-slim walk-in shower tray with integrated linear drain
The wedi Fundo Plano Linea is a prefabricated walk-in shower tray with an integrated linear drain and a total installation height of only 70 mm. Developed for renovation and refurbishment projects where floor height is limited, but where safety, waterproofing and fast installation are non-negotiable. As part of the complete wedi system, the Plano Linea provides a reliable, ready-to-tile base for modern walk-in showers.
The solution when every millimetre counts

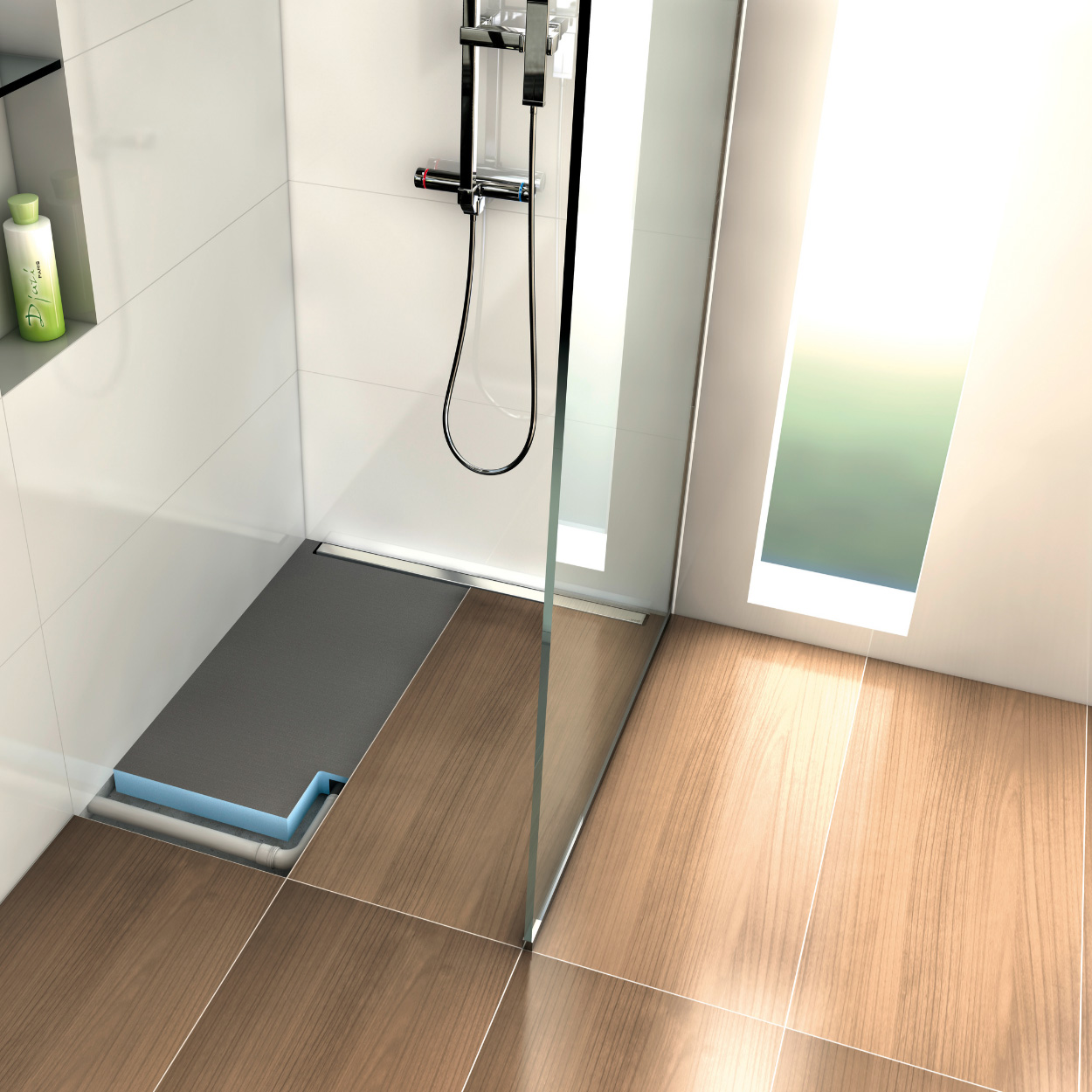

Not every bathroom allows for a standard shower floor build-up. Existing floor constructions, limited installation depth or renovation constraints often require a low-profile solution. The wedi Fundo Plano Linea is specifically designed for these situations. Thanks to its ultra-slim design, prefabricated slope and integrated linear drain, it delivers a predictable and safe shower solution without wet screeds or long drying times.
- Ultra-slim installation height of just 70 mm
- No wet construction processes
- Factory-formed slope – no risk of standing water
- Ideal for renovation and refurbishment projects
- Fully waterproof system
100% waterproof and ready for tiling
The core of the Fundo Plano Linea is made of extruded polystyrene (XPS) with a closed-cell structure. This material is completely waterproof and does not absorb moisture. The surface is finished with a robust, fibre-reinforced mortar layer, allowing tiles to be installed directly. The factory-formed slope (≥ 2.4%) ensures reliable water flow towards the linear drain.
Integrated linear drain – compact and compliant
The Fundo Plano Linea is supplied as a complete system with an integrated DN-40 horizontal linear drain. The drain is factory-sealed and meets DIN EN 1253 requirements. Its compact design keeps the overall installation height to a minimum, making this shower tray ideal for bathrooms with limited floor depth.
- Integrated DN-40 linear drain, factory-sealed
- Off-centre drain position
- Drain width options depending on tray size

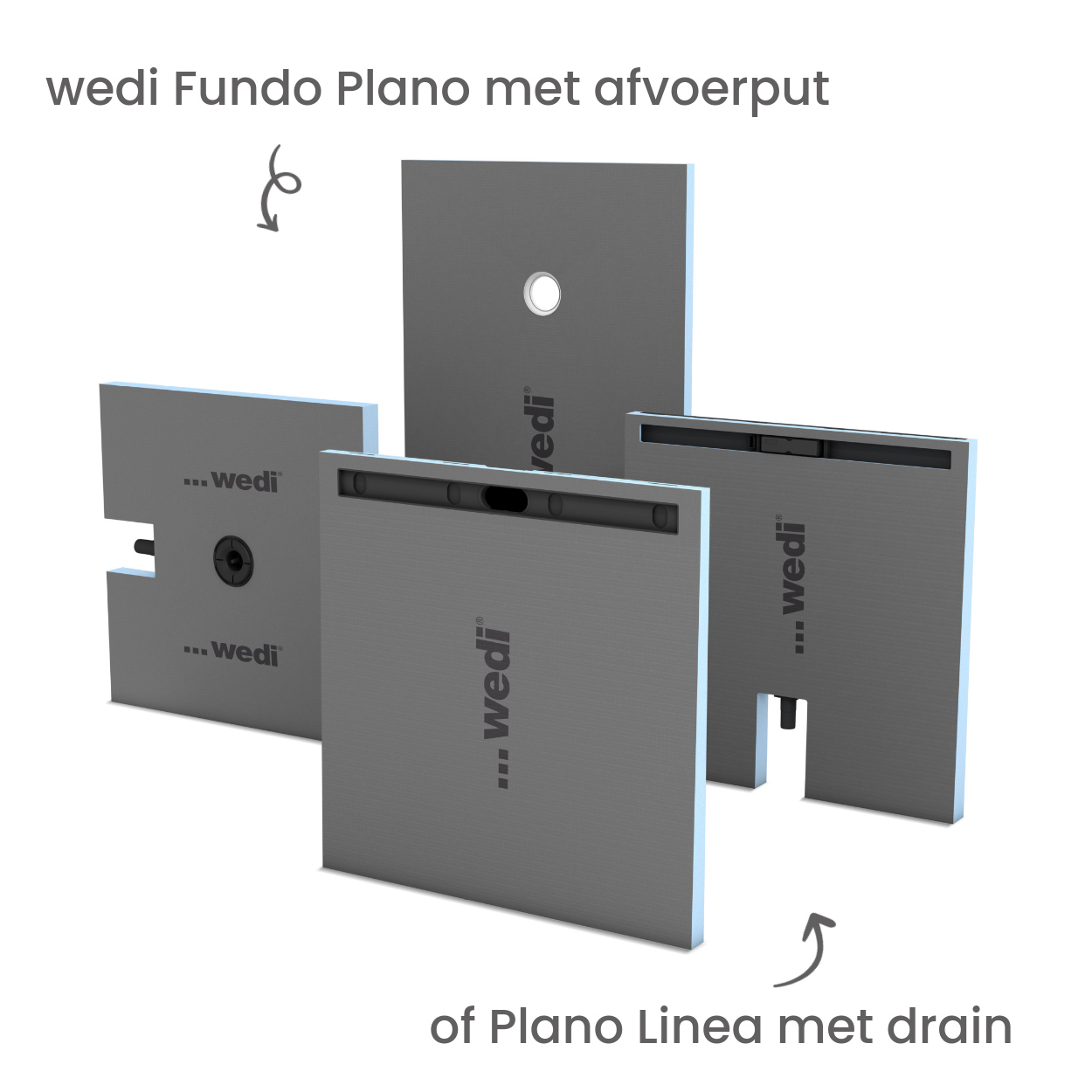

- Alternative with point drain available: wedi Fundo Plano
Fast installation for renovation and new-build projects
The Fundo Plano Linea is lightweight and easy to handle. It can be installed on most load-bearing subfloors and can be cut to size on site while maintaining its geometry and slope. When combined with wedi sealing systems, it forms a durable, fully waterproof shower solution.
- Prefabricated shower tray – no wet screeds
- Ready for tiling immediately
- Suitable for renovation and new-build projects
- Perfectly compatible with wedi building boards and wall systems
Design freedom with drain covers and wedi Fundo Top
For the finishing touch, the Fundo Plano Linea can be combined with various stainless steel linear drain covers to match the bathroom design. It is also compatible with wedi Fundo Top – a seamless, grout-free surface that replaces tiles and offers a modern, low-maintenance finish.
Specifications
| Manufacturer | wedi |
| Product name | wedi Fundo Plano Linea |
| Type | Complete walk-in shower tray with linear drain |
| Available sizes |
Multiple sizes available – see selection |
| Installation height | 70 mm |
| Drain | Integrated linear drain (DN-40) |
| Drain position | Off-centre |
| Material | XPS rigid foam with mortar layer |
| Factory-formed slope | Yes |
| Waterproof | Yes – 100% |
| Scope of delivery |
wedi Fundo Plano Linea shower tray
Stainless steel standard drain cover
Sealing fabric 1000 × 450 mm
2 × frame blocks
|
| Application | Walk-in showers and wet rooms |

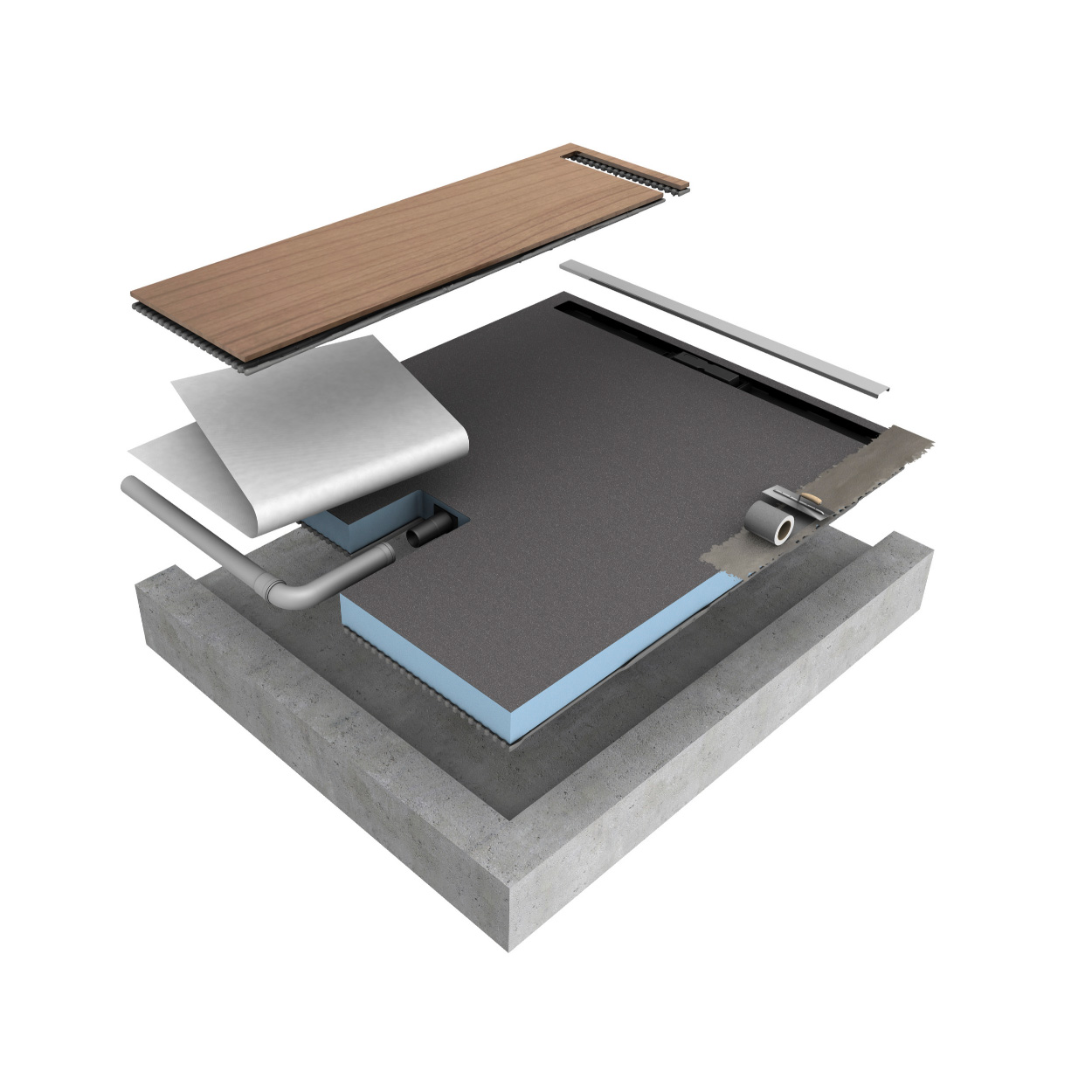

A detailed technical drawing of the wedi Fundo Plano Linea shower tray is available on request.
Part of the complete wedi system
The wedi Fundo Plano Linea works seamlessly with wedi building boards, sealing systems, accessories and wedi Fundo Top to form a complete, reliable construction system for waterproof bathrooms – even where installation height is extremely limited.
