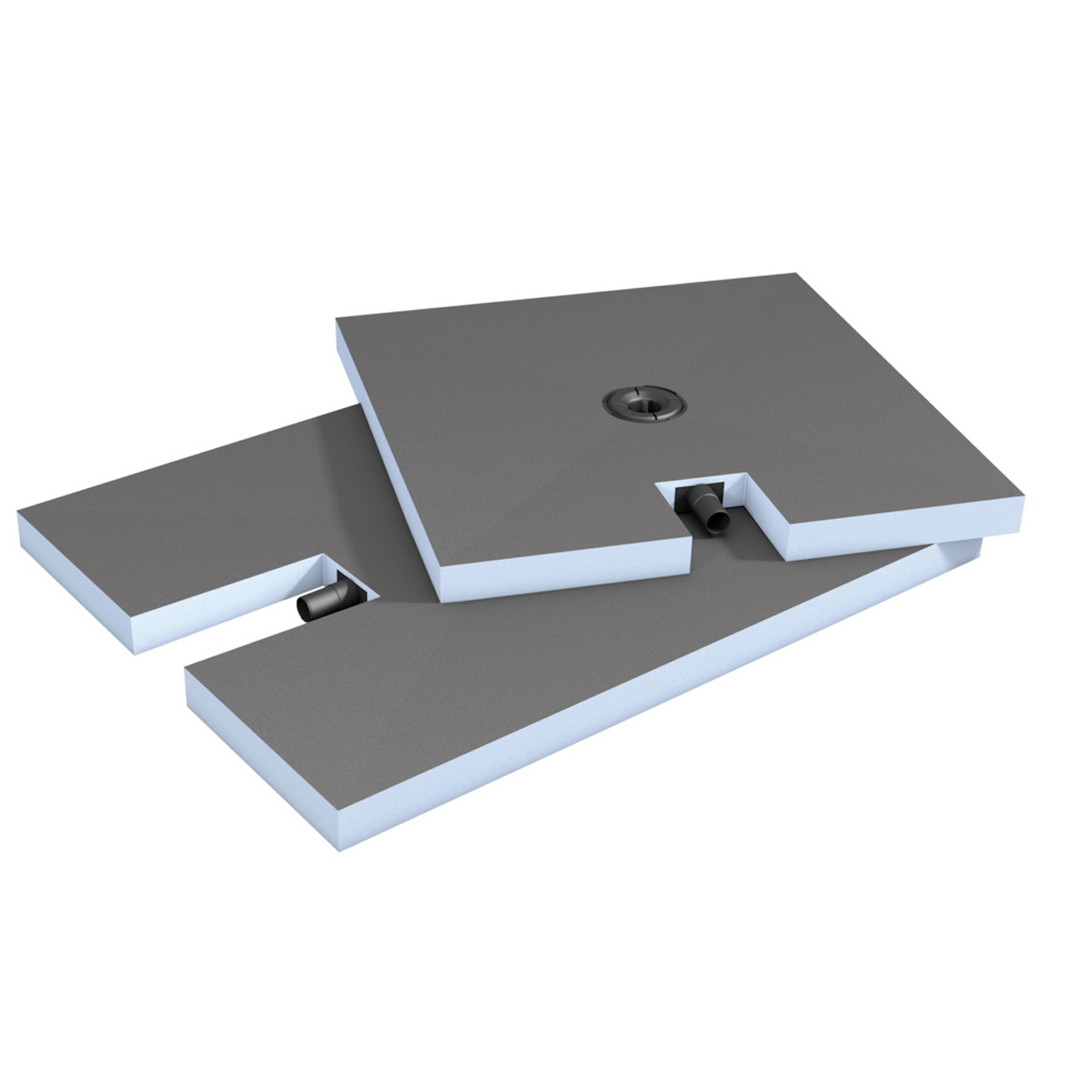

wedi Fundo Plano – ultra-slim walk-in shower tray with integrated waste
The wedi Fundo Plano is the slimmest complete walk-in shower tray within the Fundo range. With a total installation height of just 65 mm, this shower tray is the ideal solution where build-up height is extremely limited. Perfect for renovation projects where space is tight, but certainty is essential: no waiting for drying times, a perfectly formed slope and a fully waterproof system you can rely on.
➕ Installation height of just 65 mm – ideal where floor space is limited
➕ 100% waterproof XPS shower tray
➕ Prefabricated slope for reliable water drainage
➕ Integrated DN40 point waste
➕ Lightweight and quick to install
➕ Compatible with Fundo Fino waste covers and wedi Fundo Top
Technical specifications
- Type: Walk-in shower tray with integrated waste
- Installation height: 65 mm
- Waste: Integrated point waste
- Waste position: Central or offset
- Material: XPS rigid foam with fibre-reinforced mortar coating
- Pre-sloped: Yes (≥ 2.4%)
- Drainage capacity: approx. 30 l/min (DIN EN 1253)
Ultra-slim construction with maximum reliability
With the wedi Fundo Plano, you choose a smart shower floor solution when every millimetre counts. Combine it with wedi sealing systems, design waste covers or a wedi Fundo Top surface for a safe, low-maintenance and cleanly finished walk-in shower.
wedi Fundo Plano – the ultra-slim complete walk-in shower tray with integrated waste
The wedi Fundo Plano is a prefabricated walk-in shower tray with an integrated waste and a total installation height of just 65 mm. Developed for renovation and refurbishment projects where available floor space is limited, but speed, safety and waterproofing are essential. As part of the complete wedi system, the Fundo Plano provides a reliable, tile-ready base for modern walk-in showers.
The solution when every millimetre counts
Not every bathroom allows for a standard shower floor build-up. Low floor depths, existing constructions or restricted installation heights require a smarter solution. The wedi Fundo Plano has been specifically designed for these situations. Thanks to its ultra-slim design, prefabricated slope and integrated waste, it delivers a safe and predictable shower solution – without wet screeds or long drying times.
- Ultra-slim build-up of just 65 mm
- Fast installation without wet construction processes
- Perfectly formed slope – no standing water
- Ideal for renovation and refurbishment projects
- Fully waterproof system
100% waterproof and ready for tiling

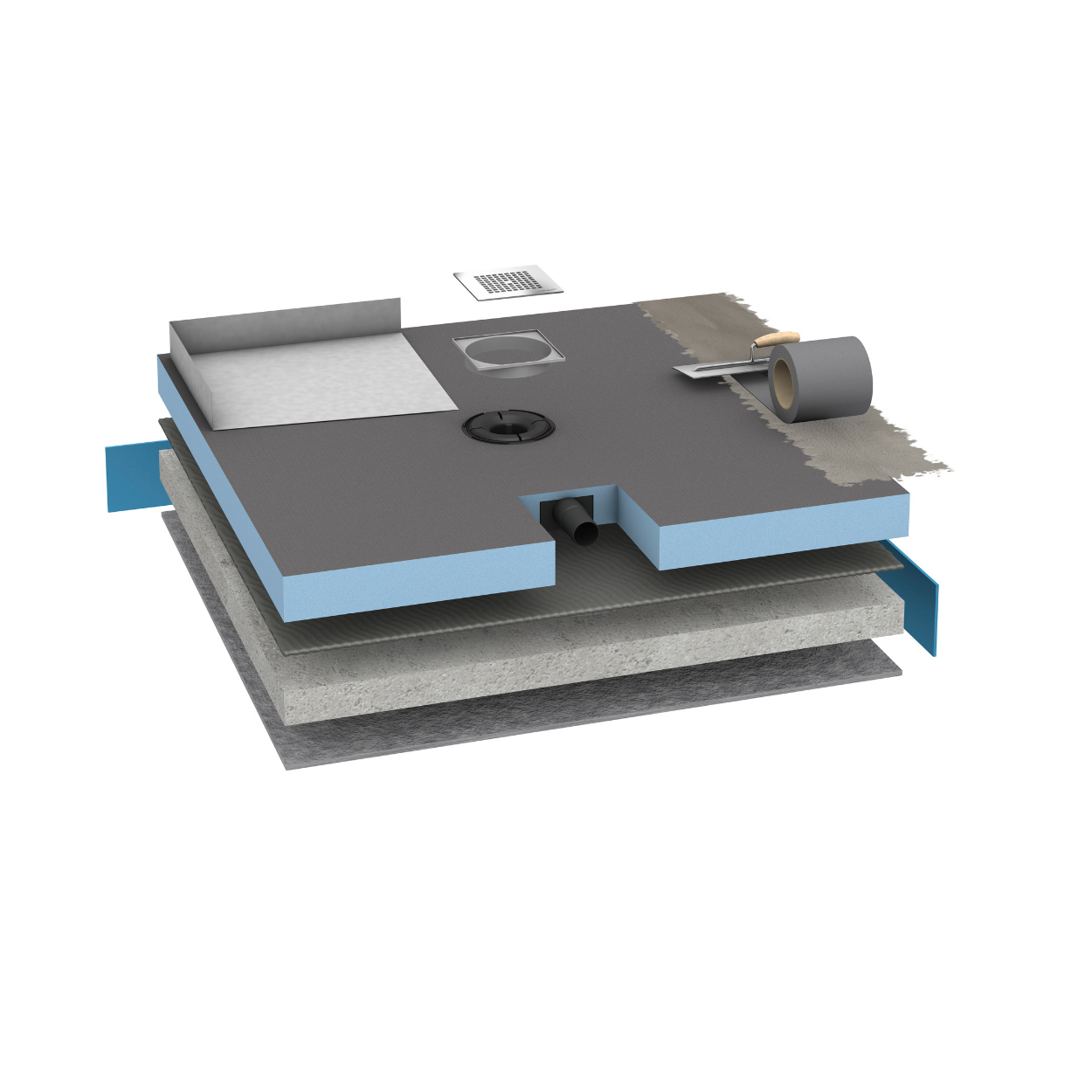

The core of the Fundo Plano is made from extruded polystyrene (XPS) with a closed-cell structure. This material is completely waterproof and does not absorb moisture. The surface is finished with a robust, fibre-reinforced mortar layer, allowing tiles to be installed directly. The factory-formed slope (≥ 2.4%) ensures reliable drainage towards the point waste.
Integrated waste – compact and standards-compliant
The Fundo Plano is supplied as a complete system with an integrated horizontal DN40 waste. This waste complies with DIN EN 1253 and offers a drainage capacity of approximately 30 litres per minute. The compact waste design keeps the overall installation height to a minimum, making this tray ideal where floor build-up is limited.
- Integrated DN40 point waste, factory-sealed and waterproof
- Available with central or offset waste position
- Drainage capacity designed for compact shower layouts

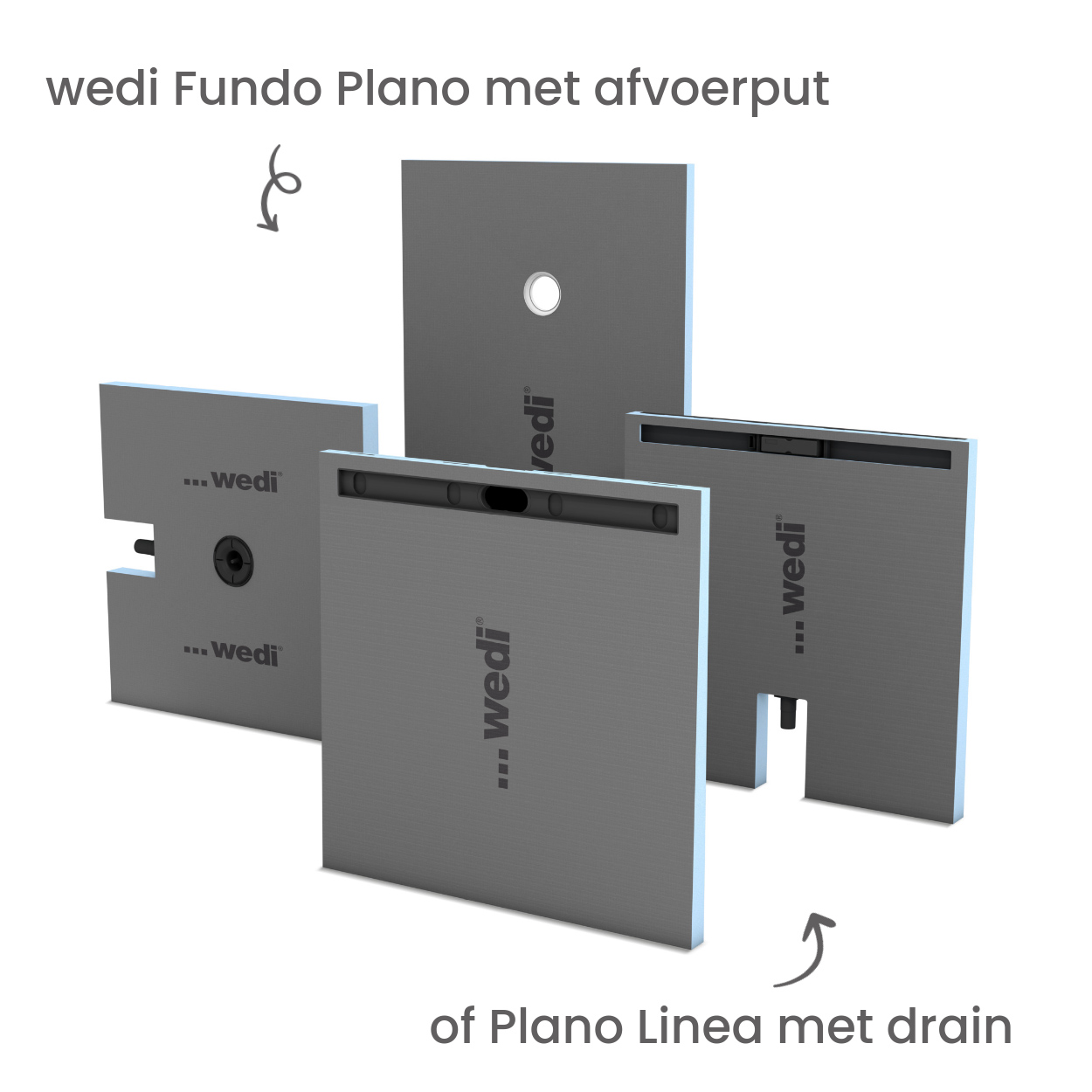

- Linear drain alternative available: wedi Fundo Plano Linea

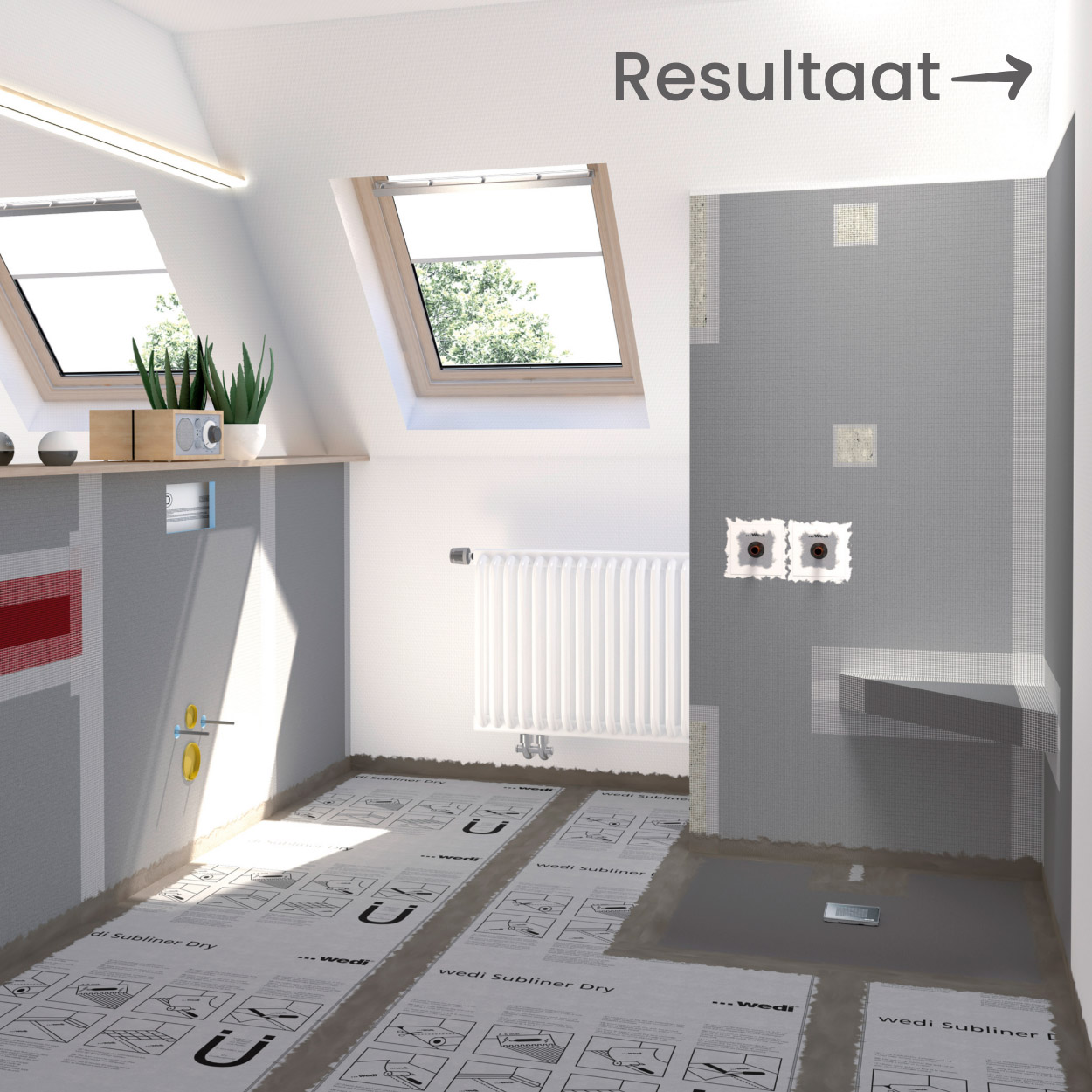

Fast installation for renovation and new builds

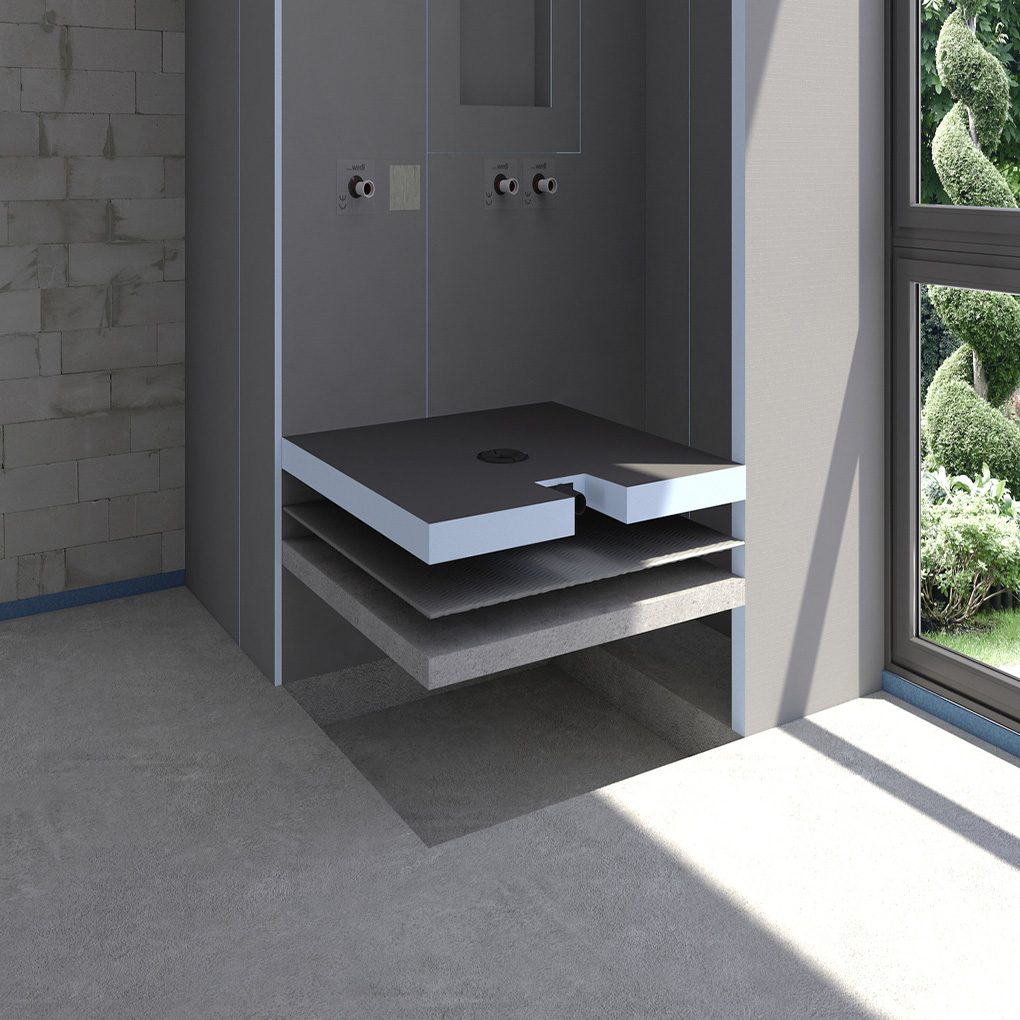

The Fundo Plano is lightweight and easy to handle. It can be installed on almost any load-bearing substrate and, if required, trimmed on site while maintaining the geometry and slope. When combined with wedi sealing systems, it creates a durable and fully waterproof shower solution.
- Prefabricated shower tray – no wet screeds
- Ready for tiling immediately
- Suitable for renovation and new-build projects
- Seamlessly compatible with wedi building boards and wall systems
Design freedom with waste covers and wedi Fundo Top

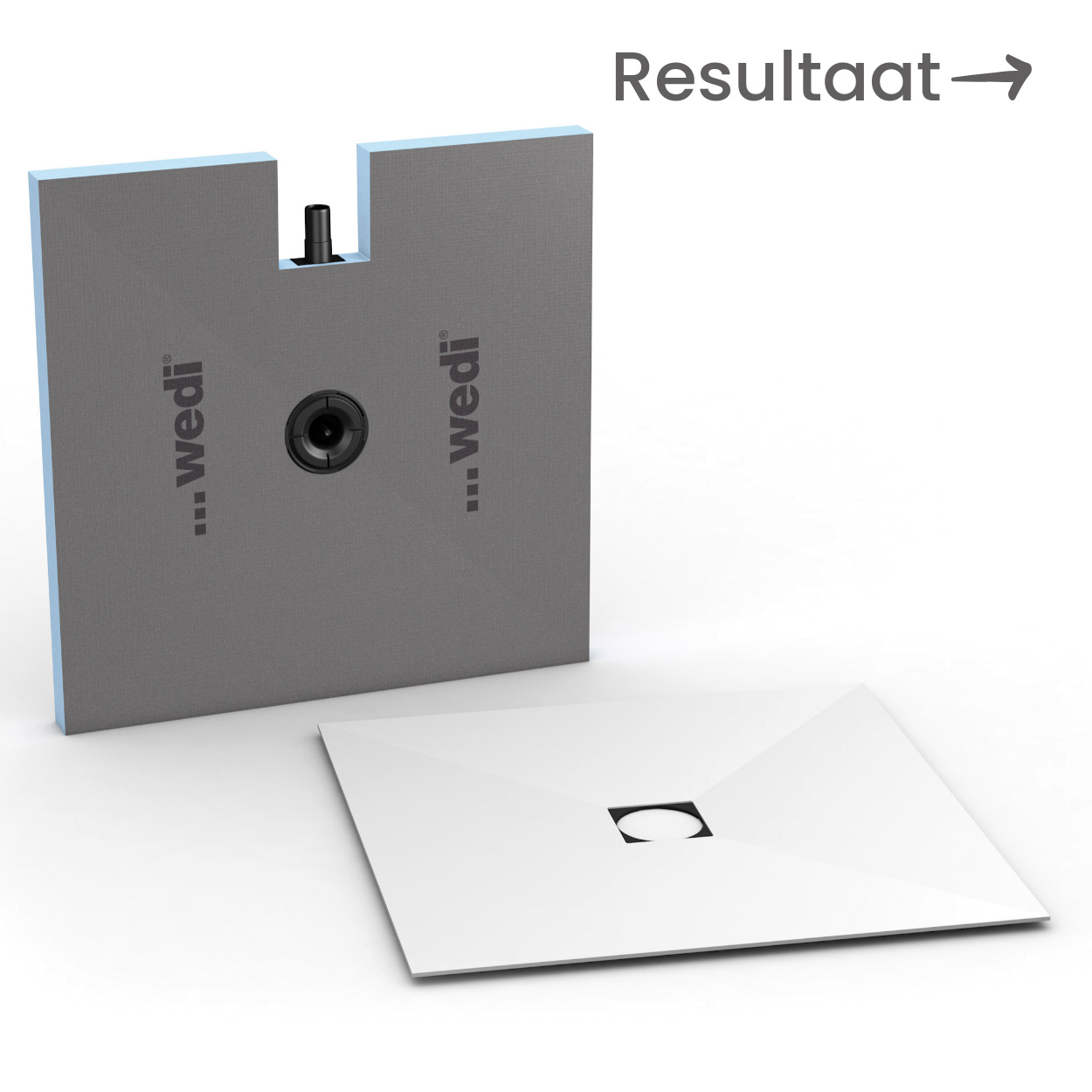

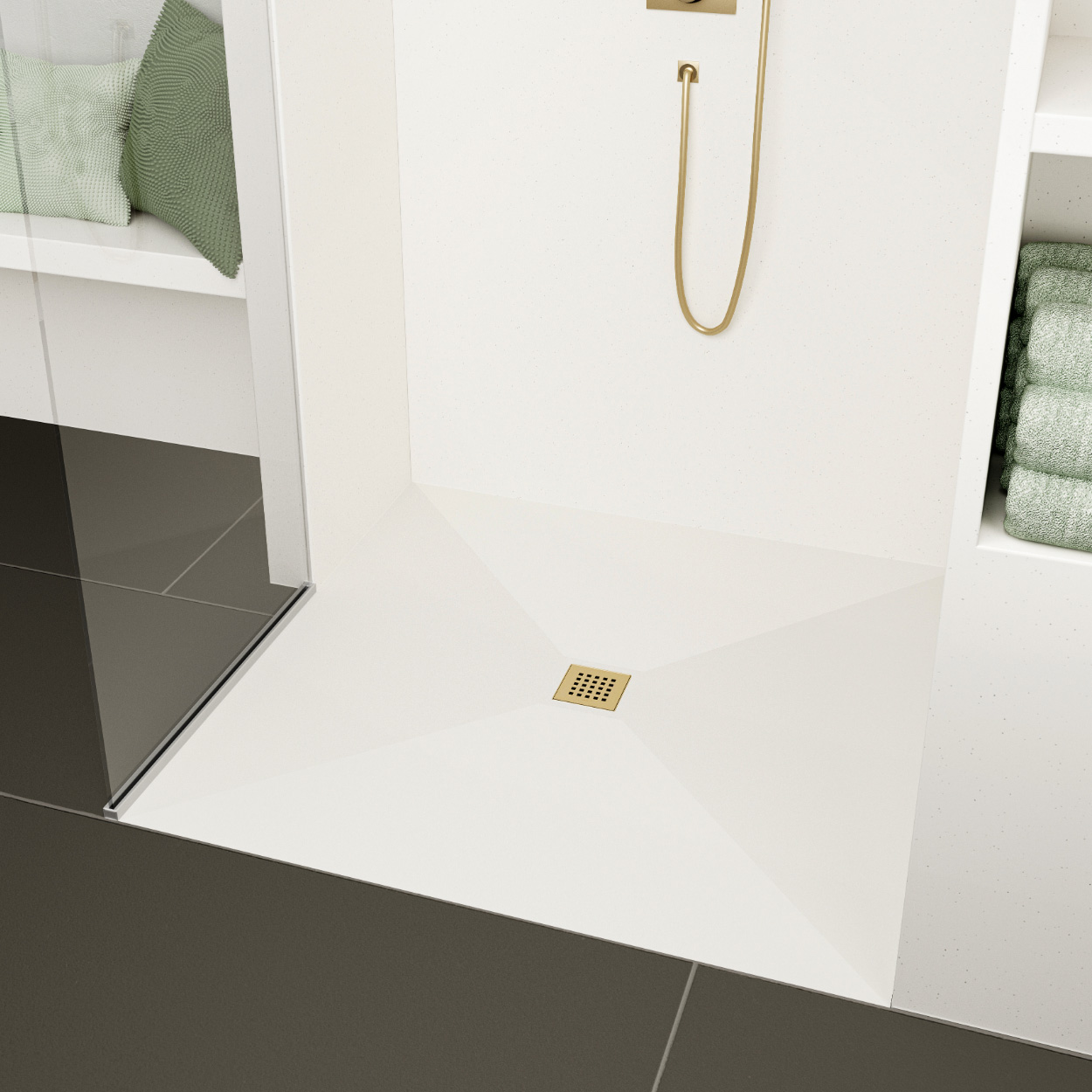

For the final finish, the Fundo Plano can be combined with a range of Fundo Fino waste covers, allowing the design to match the overall bathroom style. The tray is also compatible with wedi Fundo Top – a ready-to-use, seamless surface that replaces tiles and creates a modern, low-maintenance, grout-free finish.
Specifications
| Manufacturer | wedi |
| Product name | wedi Fundo Plano |
| Type | Complete walk-in shower tray |
| Available sizes |
Available in multiple sizes – see size options |
| Installation height | 65 mm |
| Waste | Integrated point waste (DN40) |
| Waste position | Central or offset |
| Drainage capacity | Approx. 30 l/min (DIN EN 1253) |
| Slope | ≥ 2.4% |
| Material | XPS rigid foam with mortar coating |
| Waterproof | Yes – 100% |
| Scope of delivery |
wedi Fundo Plano shower tray
Stainless steel waste cover 132 × 132 mm
Sealing corner 800 × 800 mm
Height adjustment ring 24 mm
Lubricant for installation
|
| Application | Walk-in showers and wet rooms |
A detailed technical drawing of this wedi Fundo Plano shower tray is available on request.
Part of the complete wedi system
The wedi Fundo Plano works seamlessly with wedi building boards, wedi Tools, sealing systems and wedi Fundo Top to create a complete, modular system for waterproof bathrooms. This allows you to build quickly, safely and with maximum design freedom – even where installation height is extremely limited.
