Wedi Fundo point drain horizontal DN 50 round
Order before 12pm: 1 working day | Delivery date will be arranged
- Description
- More info
- FAQ
- Documentation
- Reviews
wedi Fundo point drain horizontal DN 50 with round grate – complete drain set
The wedi Fundo point drain horizontal DN 50 with round stainless steel grate is a complete drain set for wedi Fundo shower floors with a point outlet. This drain is used when the waste pipe needs to be connected horizontally and ensures reliable, watertight drainage of shower water.
➕ Horizontal connection for side outlet drainage
➕ Standard DN 50 drain with high drainage capacity
➕ Round stainless steel grate for a subtle finish
➕ Complete set, ready for immediate installation
When do you choose a horizontal DN 50 point drain?
This point drain is suitable for situations where a vertical connection is not possible and sufficient space is available for a horizontal waste pipe. If the available installation height is limited, the Mini Max DN 40 drain offers a suitable alternative.
Technical specifications
- Brand: wedi
- Type: Point drain for shower floor
- Drain direction: Horizontal
- Drain diameter: DN 50
- Connection pipe diameter: 50 mm
- Drain grate: Round stainless steel, Ø 115 mm
- Drainage capacity: 0.8 litres per second
- Minimum installation depth: 130 mm
- Standard: EN 1253
- Suitable for: Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo
Combine this point drain with a suitable wedi Fundo shower floor and matching sealing systems for a safe, watertight and durable shower solution.
wedi Fundo point drain horizontal DN 50 with round grate – complete drain set
The wedi Fundo point drain horizontal DN 50 with round drain grate is a complete drain set for wedi Fundo shower floors with a point outlet. This drain is designed for installations where the waste pipe is connected horizontally, providing a safe, watertight and durable solution within the wedi system.
Horizontal DN 50 drain with round grate
When a vertical waste connection is not possible, this horizontal DN 50 point drain offers a reliable solution. Thanks to its high drainage capacity and robust design, this drain is suitable for both new builds and renovations, provided there is sufficient space within the floor build-up.
- Horizontal connection for side outlet drainage
- Standard DN 50 drain with high capacity
- Round stainless steel drain grate for a subtle finish
- Complete set, ready for installation
Which wedi drain do you need?
wedi offers different drains tailored to the type of shower floor, the available installation space and the required connection direction. The overview below shows the most commonly used drains for wedi Fundo shower floors. The drain featured on this page is shown in bold.
Overview of wedi drains
| Drain type | Connection direction | Diameter | Grate | Suitable for |
| Point drain | Vertical | DN 50 | Square | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain | Vertical | DN 50 | Round | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain Mini Max | Horizontal | DN 40 | Square | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain | Horizontal | DN 50 | Square | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain | Horizontal | DN 50 | Round | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Linear drain outlet | Vertical | DN 50 | – | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN 40 Mini Max | – | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN 50 | – | Fundo Riolito, Riolito Neo, RioLigno |

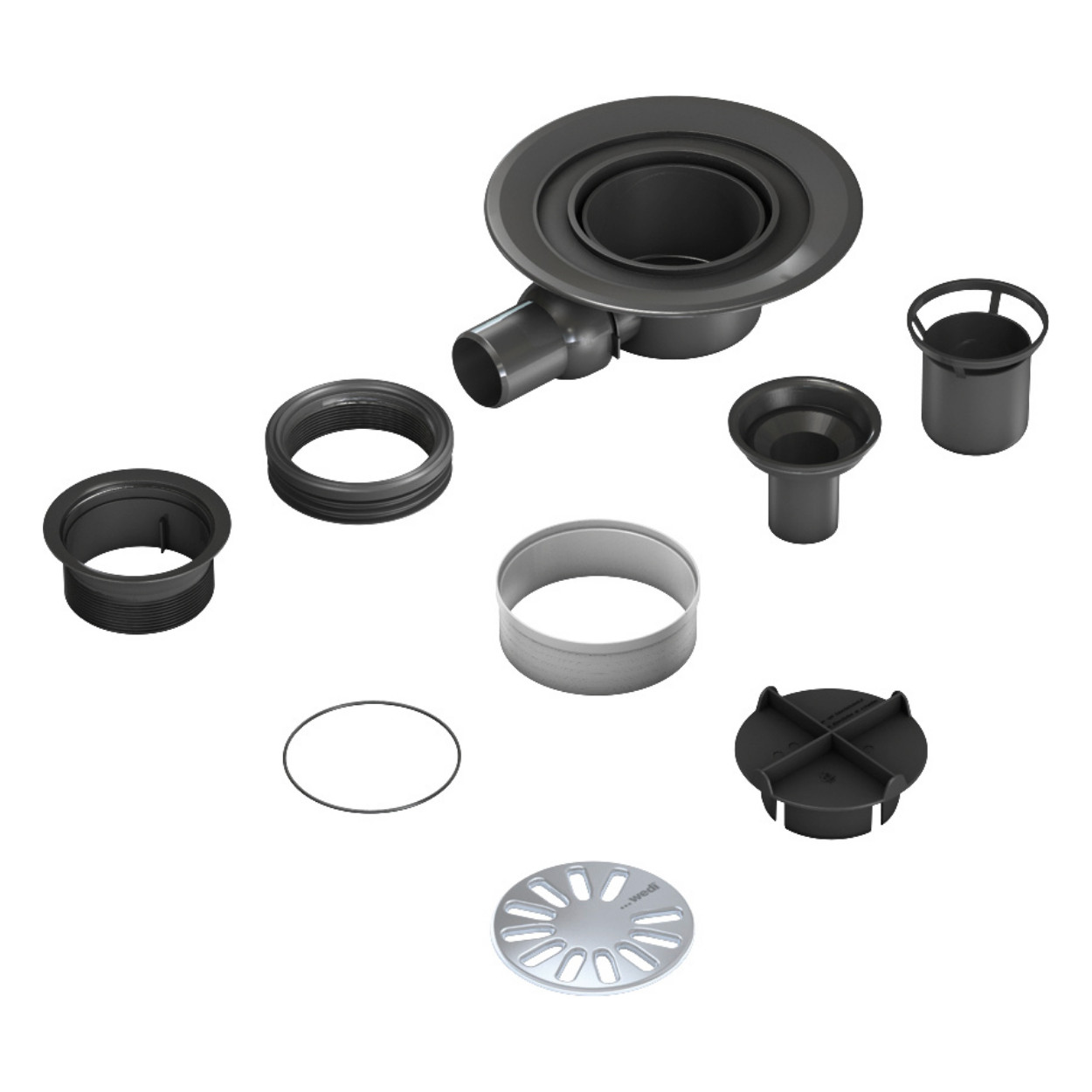

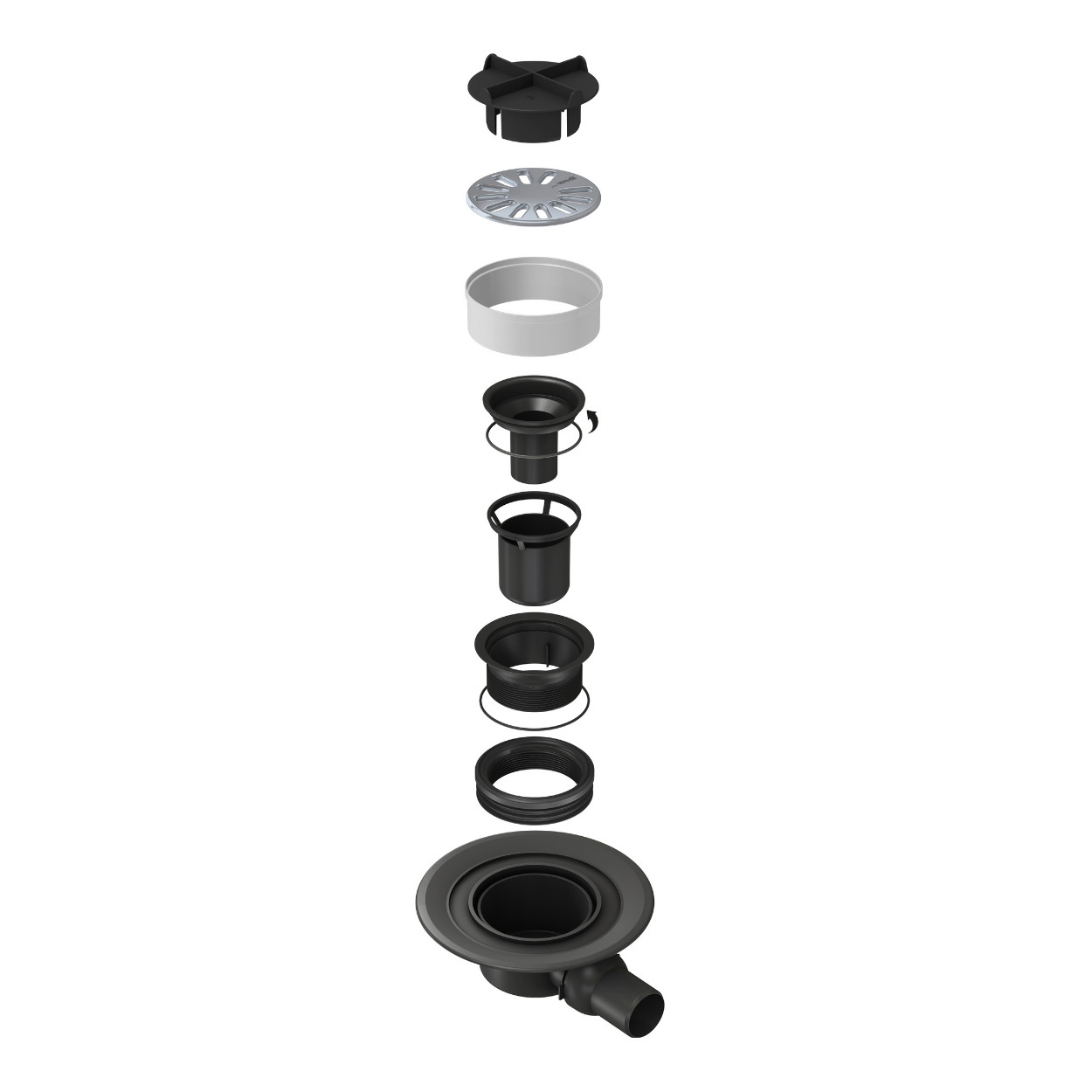

Complete delivery according to the wedi system
This wedi Fundo point drain is supplied as a complete set, ensuring all components fit perfectly together and meet the requirements of the wedi system.
- 1 × horizontal DN 50 drain
- 1 × siphon
- 1 × odour trap
- 1 × height adjustment ring
- 1 × sealing ring
- 1 × shower tray screw ring
- 1 × cover cap
- 1 × stainless steel drain grate Ø 115 mm (round)
- 1 × O-ring
Part of the complete wedi system
Combined with a wedi Fundo shower floor, matching sealing systems and accessories, this point drain provides a safe, watertight and durable solution for shower areas with a horizontal waste connection.
Which drain do I need for my wedi Fundo shower floor?
The correct drain depends on the type of wedi Fundo shower floor and the way water is discharged. wedi distinguishes between shower floors with a point drain and shower floors with a linear drain.
- Point drains are used with Fundo Primo, Ligno Plus, Borgo, Trolio and Nautilo.
- Linear drains are used with Fundo Riolito, Riolito Neo and RioLigno.
What is the difference between a vertical and a horizontal drain?
The difference between vertical and horizontal drains lies in the direction of water discharge and the required installation depth.
- A vertical drain discharges water straight downwards and is the most commonly used option when sufficient space below the floor is available.
- A horizontal drain discharges water sideways and is used when the floor build-up is limited or when pipework cannot be installed vertically.
What is the difference between a round and a square drain grate?
The difference between round and square drain grates is mainly aesthetic. The technical performance and drainage capacity are the same.
- Square grates are often chosen for modern bathrooms with clean, straight tile layouts.
- Round grates have a more neutral appearance and are commonly used in classic or timeless bathroom designs.
What is a Mini Max drain?
A Mini Max drain is an extra-low horizontal drain with a smaller diameter, designed for situations with very limited installation height.
- Mini Max drains have a DN 40 connection.
- They are used when a DN 50 drain requires too much space.
- Suitable for single shower areas with limited water flow.
When do I need a drain with a fire stop?
A drain with an integrated fire stop is required when the shower floor is installed in a separating floor between dwellings, such as in apartment buildings or other forms of multi-storey construction.
- The integrated fire stop prevents fire from spreading through the drain.
- No additional fire protection collars or sleeves are required.
- Fire stop drains are available for both point drains and linear drains.
Which wedi drains are most commonly used?
The most commonly selected drains depend on the building situation, but in practice the following options are used most frequently:
- DN 50 vertical point drain for standard residential construction.
- DN 50 horizontal point drain for limited floor build-up.
- Mini Max DN 40 drain for very limited installation height.
- DN 50 linear drain for shower floors with a linear outlet.
- Drains with integrated fire stop for separating floors between dwellings.
Are wedi drains supplied as complete sets?
Yes, all wedi Fundo drains are supplied as complete sets including siphon, odour trap, sealing components and installation accessories. This ensures perfect compatibility between all parts and guarantees a reliable, watertight system.
Description
wedi Fundo point drain horizontal DN 50 with round grate – complete drain set
The wedi Fundo point drain horizontal DN 50 with round stainless steel grate is a complete drain set for wedi Fundo shower floors with a point outlet. This drain is used when the waste pipe needs to be connected horizontally and ensures reliable, watertight drainage of shower water.
➕ Horizontal connection for side outlet drainage
➕ Standard DN 50 drain with high drainage capacity
➕ Round stainless steel grate for a subtle finish
➕ Complete set, ready for immediate installation
When do you choose a horizontal DN 50 point drain?
This point drain is suitable for situations where a vertical connection is not possible and sufficient space is available for a horizontal waste pipe. If the available installation height is limited, the Mini Max DN 40 drain offers a suitable alternative.
Technical specifications
- Brand: wedi
- Type: Point drain for shower floor
- Drain direction: Horizontal
- Drain diameter: DN 50
- Connection pipe diameter: 50 mm
- Drain grate: Round stainless steel, Ø 115 mm
- Drainage capacity: 0.8 litres per second
- Minimum installation depth: 130 mm
- Standard: EN 1253
- Suitable for: Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo
Combine this point drain with a suitable wedi Fundo shower floor and matching sealing systems for a safe, watertight and durable shower solution.
More info
wedi Fundo point drain horizontal DN 50 with round grate – complete drain set
The wedi Fundo point drain horizontal DN 50 with round drain grate is a complete drain set for wedi Fundo shower floors with a point outlet. This drain is designed for installations where the waste pipe is connected horizontally, providing a safe, watertight and durable solution within the wedi system.
Horizontal DN 50 drain with round grate
When a vertical waste connection is not possible, this horizontal DN 50 point drain offers a reliable solution. Thanks to its high drainage capacity and robust design, this drain is suitable for both new builds and renovations, provided there is sufficient space within the floor build-up.
- Horizontal connection for side outlet drainage
- Standard DN 50 drain with high capacity
- Round stainless steel drain grate for a subtle finish
- Complete set, ready for installation
Which wedi drain do you need?
wedi offers different drains tailored to the type of shower floor, the available installation space and the required connection direction. The overview below shows the most commonly used drains for wedi Fundo shower floors. The drain featured on this page is shown in bold.
Overview of wedi drains
| Drain type | Connection direction | Diameter | Grate | Suitable for |
| Point drain | Vertical | DN 50 | Square | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain | Vertical | DN 50 | Round | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain Mini Max | Horizontal | DN 40 | Square | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain | Horizontal | DN 50 | Square | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Point drain | Horizontal | DN 50 | Round | Fundo Primo, Ligno Plus, Borgo, Trollo, Nautilo |
| Linear drain outlet | Vertical | DN 50 | – | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN 40 Mini Max | – | Fundo Riolito, Riolito Neo, RioLigno |
| Linear drain outlet | Horizontal | DN 50 | – | Fundo Riolito, Riolito Neo, RioLigno |
Complete delivery according to the wedi system
This wedi Fundo point drain is supplied as a complete set, ensuring all components fit perfectly together and meet the requirements of the wedi system.
- 1 × horizontal DN 50 drain
- 1 × siphon
- 1 × odour trap
- 1 × height adjustment ring
- 1 × sealing ring
- 1 × shower tray screw ring
- 1 × cover cap
- 1 × stainless steel drain grate Ø 115 mm (round)
- 1 × O-ring
Part of the complete wedi system
Combined with a wedi Fundo shower floor, matching sealing systems and accessories, this point drain provides a safe, watertight and durable solution for shower areas with a horizontal waste connection.
FAQ
Which drain do I need for my wedi Fundo shower floor?
The correct drain depends on the type of wedi Fundo shower floor and the way water is discharged. wedi distinguishes between shower floors with a point drain and shower floors with a linear drain.
- Point drains are used with Fundo Primo, Ligno Plus, Borgo, Trolio and Nautilo.
- Linear drains are used with Fundo Riolito, Riolito Neo and RioLigno.
What is the difference between a vertical and a horizontal drain?
The difference between vertical and horizontal drains lies in the direction of water discharge and the required installation depth.
- A vertical drain discharges water straight downwards and is the most commonly used option when sufficient space below the floor is available.
- A horizontal drain discharges water sideways and is used when the floor build-up is limited or when pipework cannot be installed vertically.
What is the difference between a round and a square drain grate?
The difference between round and square drain grates is mainly aesthetic. The technical performance and drainage capacity are the same.
- Square grates are often chosen for modern bathrooms with clean, straight tile layouts.
- Round grates have a more neutral appearance and are commonly used in classic or timeless bathroom designs.
What is a Mini Max drain?
A Mini Max drain is an extra-low horizontal drain with a smaller diameter, designed for situations with very limited installation height.
- Mini Max drains have a DN 40 connection.
- They are used when a DN 50 drain requires too much space.
- Suitable for single shower areas with limited water flow.
When do I need a drain with a fire stop?
A drain with an integrated fire stop is required when the shower floor is installed in a separating floor between dwellings, such as in apartment buildings or other forms of multi-storey construction.
- The integrated fire stop prevents fire from spreading through the drain.
- No additional fire protection collars or sleeves are required.
- Fire stop drains are available for both point drains and linear drains.
Which wedi drains are most commonly used?
The most commonly selected drains depend on the building situation, but in practice the following options are used most frequently:
- DN 50 vertical point drain for standard residential construction.
- DN 50 horizontal point drain for limited floor build-up.
- Mini Max DN 40 drain for very limited installation height.
- DN 50 linear drain for shower floors with a linear outlet.
- Drains with integrated fire stop for separating floors between dwellings.
Are wedi drains supplied as complete sets?
Yes, all wedi Fundo drains are supplied as complete sets including siphon, odour trap, sealing components and installation accessories. This ensures perfect compatibility between all parts and guarantees a reliable, watertight system.
Documentation
Reviews
Similar products.
Others also bought.
- Personal service you can rely on
- Largest wedi range in the Netherlands
- Direct access to a wedi expert
- More than 15 years online
Justwedi.nl – The specialist in 100% waterproof bathrooms
Welcome to Justwedi.nl – the go-to destination for anyone building or renovating a bathroom, sauna, spa, swimming pool, or any other wet area with the premium quality of wedi.
Whether you’re a professional installer or a hands-on DIYer, you can easily order all original wedi materials online. From waterproof construction boards and Fundo shower systems to XPS elements, design components, and smart installation solutions – you’ll find it all here.
We believe that every wellness space deserves the perfect foundation: sleek, stylish, and fully waterproof. That’s why we exclusively offer the best from wedi – Europe’s number one in high-quality building systems for wet rooms.
Building or renovating a bathroom? The complete wedi range – professional, durable & premium quality
A bathroom renovation requires time, preparation, and the right materials. We make the process as smooth as possible:
• Full range of wedi products always in stock
• Competitive pricing
• Expert guidance from true specialists
• Showroom located in Vught (NL)
• Fast home delivery
At Justwedi.nl, you can count on premium products and professional support. Our experts are ready to think along with you, offer clear advice, and help you make the right choices for your project.
Why choose Justwedi.nl?
Here’s why customers trust Justwedi.nl:
✓ Build 100% waterproof with genuine wedi materials
✓ Lightweight construction boards for quick and easy installation
✓ Tile directly on top – no priming required
✓ Works with just one adhesive: wedi 610
✓ Perfectly compatible with underfloor heating
✓ Extensive product range: boards, Fundo shower systems, I-board and wedi Tools
✓ Excellent insulation properties for comfort and energy savings
✓ Suitable for both residential and professional applications
✓ Your own dedicated contact person – short lines and personalised support
✓ Service is our top priority – we genuinely think along with you
✓ Fast and reliable home delivery
✓ Reachable on weekdays from 09:00 to 17:30
✓ Secure shopping with Trusted Shops guarantee
✓ Clear communication and reliability – a deal is a deal
Explore our range & get inspired
Browse our online store and discover what’s possible with wedi.
Have questions or want to discuss your bathroom project? We’re here to help and would love to get to know you.
Justwedi.nl – your partner in waterproof building
