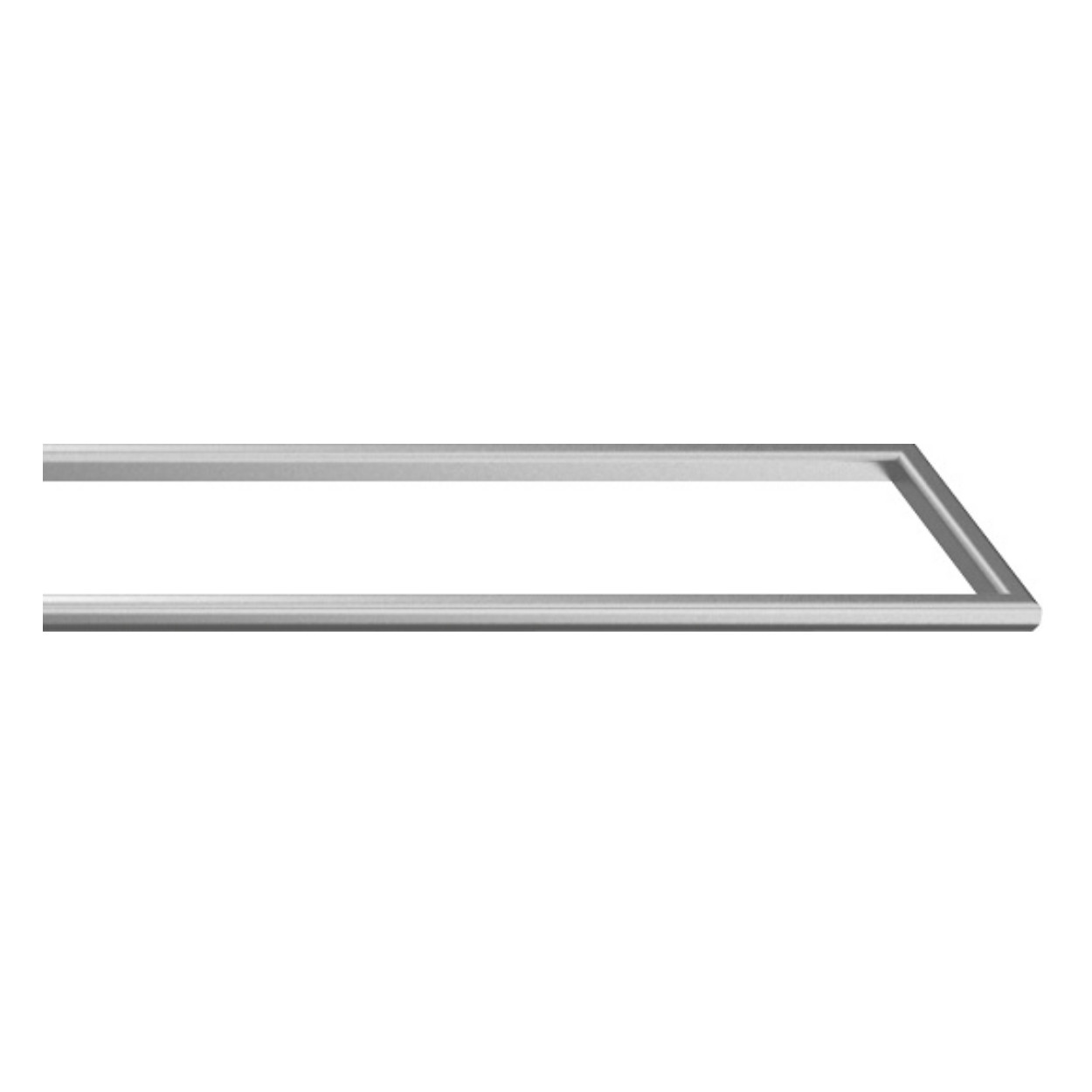

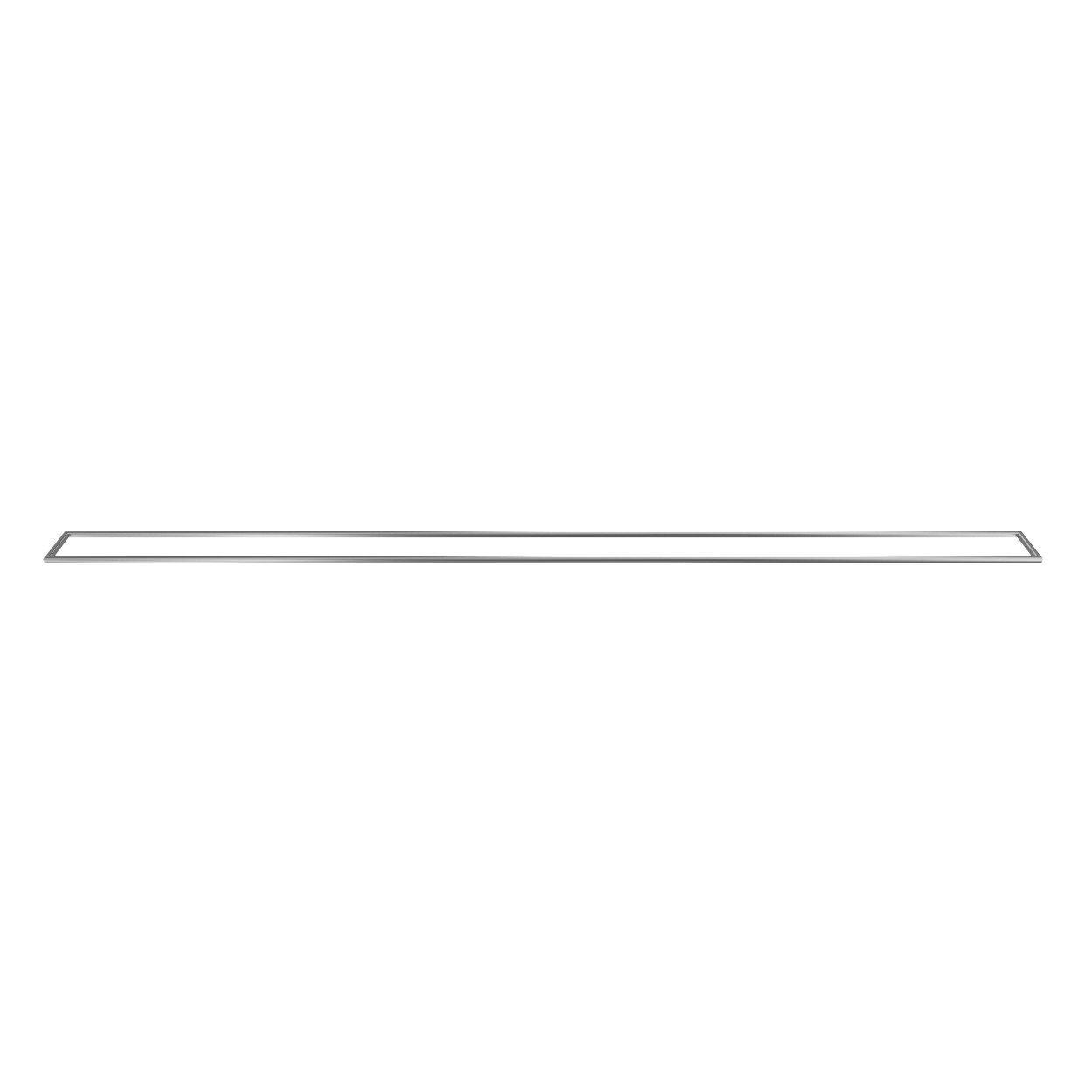

Wedi Fundo Rectangular Channel Frame – Stainless Steel

A wedi Fundo cover grate is the visible finishing element of the linear drain in a wedi Fundo shower floor. The grate covers the drain channel and allows water to flow away freely, while giving the shower floor a clean and refined appearance. Cover grates are available in various designs, materials and colours, making it easy to match them to any bathroom style.

For wedi Fundo shower floors with a linear drain, several types of cover grates are available. You can choose from a standard stainless steel grate, solid stainless steel versions, luxury variants with PVD coating such as metallic black, gold or rose gold, and tileable cover grates in which the same tile as the shower floor is integrated into the grate. Each version has its own look, while all are designed for a perfect fit and optimal water drainage.

wedi Fundo cover grates are available in fixed lengths that correspond to the length of the linear drain in the shower floor. Common lengths include 300, 700, 800, 900 and 1,100 mm. It is important to always choose a cover grate with the same length as the linear drain of the shower floor.

A wedi Fundo channel frame is a finishing profile that is installed around the cover grate in the linear drain. The frame conceals exposed tile edges and eliminates the need for a silicone joint. This results in a clean, professional finish and improves the watertightness around the drain.

A channel frame provides both a technical and aesthetic improvement to the shower floor finish. Because no silicone joint is required, the risk of dirt buildup, mould growth and leakage is significantly reduced. In addition, the channel frame creates a premium look and a neat transition between tile and cover grate.

A channel frame is not always mandatory, but it is strongly recommended for a perfectly finished result. Some sets already include a channel frame, while for other cover grates it must be ordered separately. Always check whether the selected cover grate includes a channel frame or if it needs to be added separately.

Yes, for proper fit and a uniform appearance, the cover grate and the matching channel frame should have the same length as the linear drain. In addition, it is recommended to match colour and surface finish, so the shower floor forms one cohesive design.

wedi cover grates and channel frames are designed for use in wet areas. When combined with a correctly installed wedi Fundo shower floor and installed according to the guidelines, they contribute to a durable, watertight and reliable shower solution.
