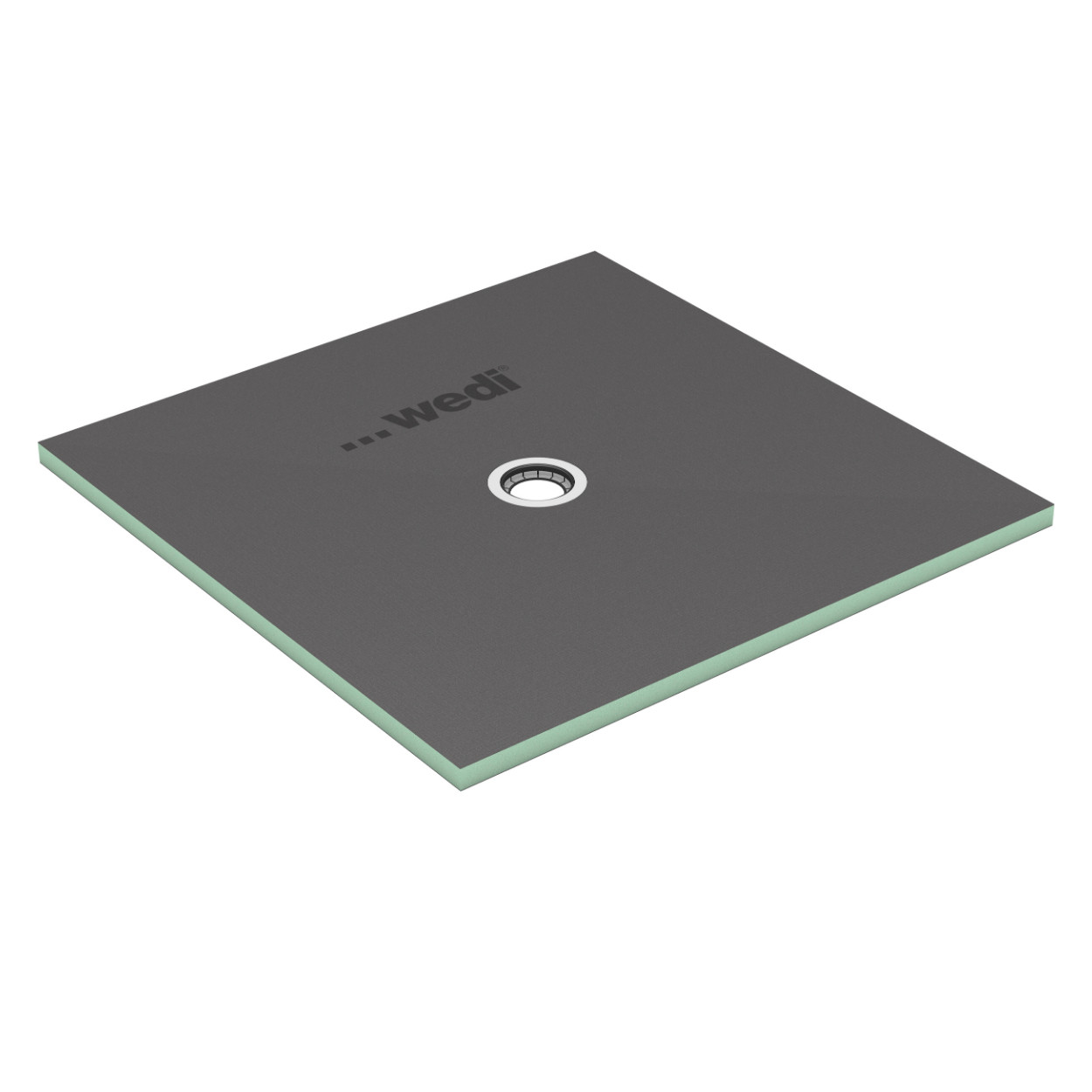

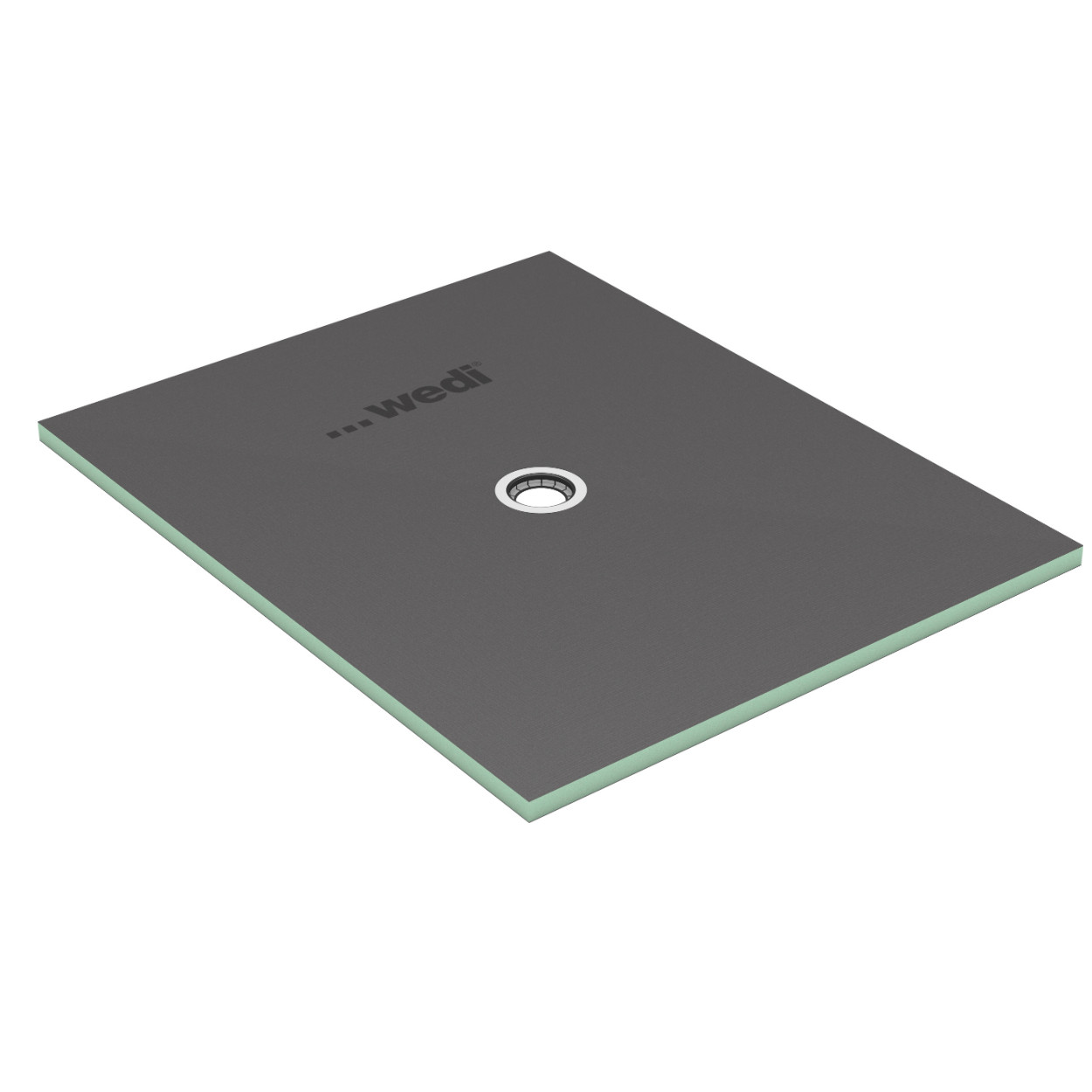

wedi Fundo Solido – flush-fit shower tray for PVC flooring
The wedi Fundo Solido is an innovative prefab shower tray specifically developed for use under PVC flooring. This unique system makes it possible to continue a PVC floor seamlessly into the shower area, without using tiles. With a total thickness of just 40 mm, a central drain position and integrated slope, the Fundo Solido is ideal for modern bathrooms at home as well as for heavy-duty environments such as hotels, sports facilities and healthcare projects.
➕ Unique shower tray suitable for PVC floor finishes
➕ Flush-fit solution with central drain
➕ Only 40 mm thick – ideal for limited build-up heights
➕ Integrated prefab slope for reliable water drainage
➕ Highly load-bearing core – suitable for intensive professional use
➕ 100% waterproof and low-maintenance shower system
Technical specifications
- Type: Shower tray for PVC flooring
- Thickness: 40 mm
- Drain: DN-50 drain required (sold separately)
- Drain position: Central
- Material: High-strength recycled PET foam core
- Supplied with slope: Yes
Maximum design freedom with industrial-grade reliability
The wedi Fundo Solido combines a clean, minimalist design with the technical reliability wedi is known for. Its high load-bearing capacity and fully waterproof construction make it suitable for intensive daily use, while also offering maximum design freedom for residential bathrooms. Combine with a dedicated DN-50 Fundo Solido drain and optional wedi Fundo Solido extension elements to create a fully continuous PVC bathroom floor.
wedi Fundo Solido – flush-fit shower tray for PVC flooring
The wedi Fundo Solido is an innovative prefab shower tray developed specifically for use under PVC flooring. Where traditionally only tiled finishes were possible, this system now allows a PVC floor to run seamlessly into the shower area. The result is a flush-fit, comfortable and modern bathroom design, without compromising on waterproofing, load capacity or installation reliability.
A unique solution for PVC flooring in the shower
PVC floors are popular due to their appearance, comfort and ease of maintenance, but until now they have been difficult to apply in shower areas. The Fundo Solido overcomes this limitation. Thanks to its specially engineered construction and integrated drainage concept, the system is fully suitable for wet rooms and intensive daily use. This makes it ideal not only for bathrooms at home, but also for hotels, sports centres, healthcare facilities and other demanding environments.
- Specifically designed for PVC floor finishes
- Flush-fit shower solution without thresholds
- Suitable for residential and professional applications
- Clean, minimalist floor design
- Ideal for renovation and new-build projects
Load-bearing and waterproof PET foam core
The core of the wedi Fundo Solido consists of high-strength PET foam with a closed-cell structure. This material is completely waterproof, does not absorb moisture and can withstand high point loads. As a result, the shower tray is suitable for intensive use, including wheelchair access and high-traffic sanitary areas. In addition, the PET foam is made from 100% recycled material, contributing to a sustainable and future-proof bathroom solution.
Central drain and integrated slope
The Fundo Solido features a central drain position and is supplied with a precisely integrated prefab slope. This ensures controlled and reliable water drainage without the risk of pooling. The shower tray is supplied without a drain, allowing the correct DN-50 Fundo Solido drain to be selected according to the installation situation and project requirements.
- Central drain position for a balanced design
- Integrated prefab slope
- DN-50 drain required (standard or screw-fixed version)
- Reliable drainage without wet construction processes
Part of a complete floor system

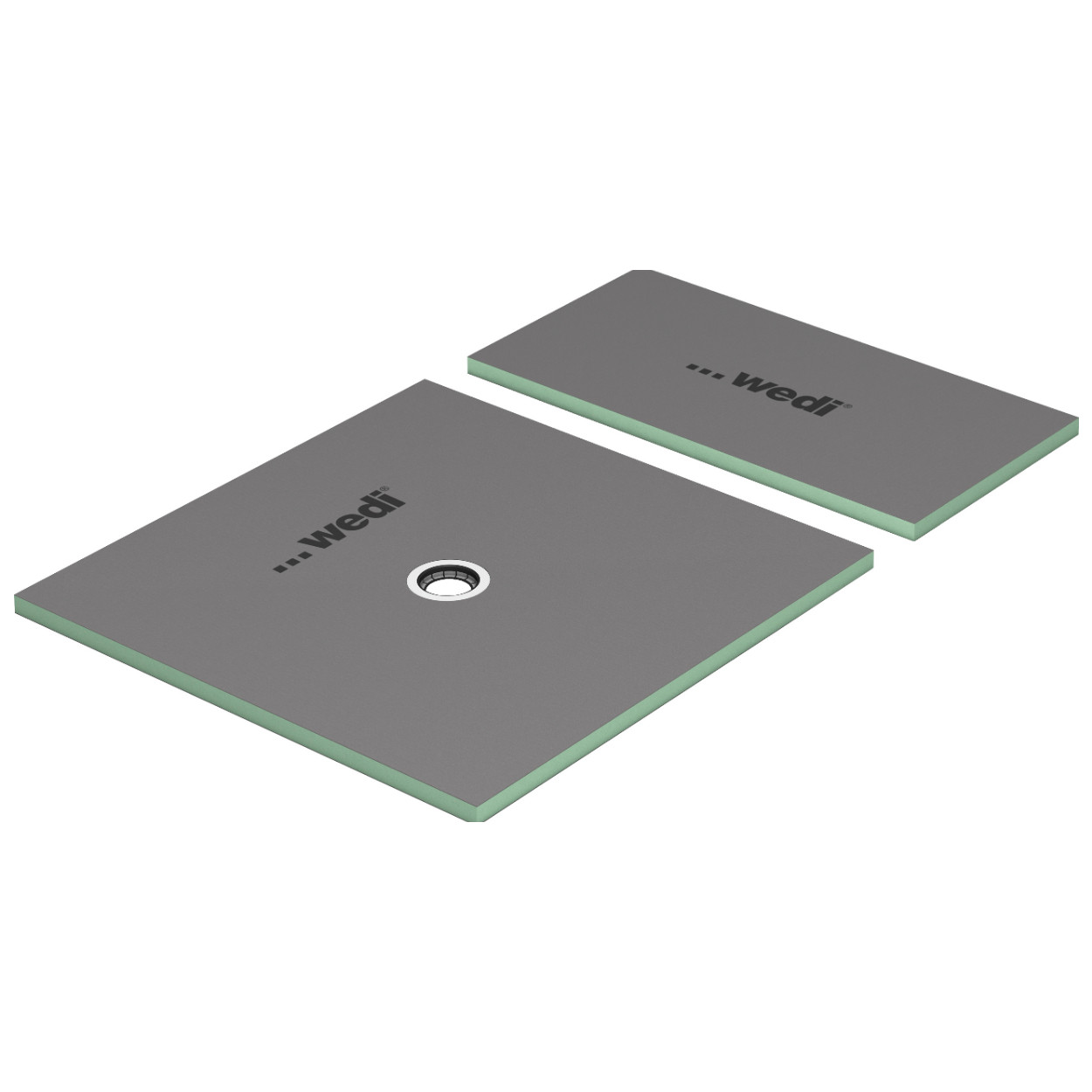

The wedi Fundo Solido forms the basis of a complete, flush-fit shower system under PVC flooring. In addition to the shower tray, dedicated wedi Fundo Solido extension elements are available. These extensions allow the remaining bathroom floor to be built up, creating one continuous, waterproof PVC floor. Together with the required DN-50 drain, this results in a technically sound and visually seamless total system.
- Shower tray with central drain position
- DN-50 Fundo Solido drain (required)
- Optional Fundo Solido extension elements for the remaining floor area
- Fully compatible with other wedi system components
Specifications
| Manufacturer | wedi |
| Product name | wedi Fundo Solido |
| Type | Shower tray for PVC flooring |
| Drain position | Central |
| Thickness | 40 mm |
| Material | High-strength recycled PET foam core |
| Waterproof | Yes – 100% |
| Supplied with slope | Yes |
| Available sizes | 900 × 900 mm, 1,200 × 1,200 mm, 1,500 × 1,200 mm |
| Applications | Bathrooms, showers and wet rooms |
Detailed technical drawings and additional technical information are available on request.
Seamless design with maximum installation reliability
With the wedi Fundo Solido, you choose an innovative shower solution that combines design freedom with industrial-grade reliability. The system enables PVC flooring to be used safely in the shower area, without complex floor constructions or long drying times. The result is a durable, waterproof and low-maintenance bathroom with a clean, flush-fit finish.
