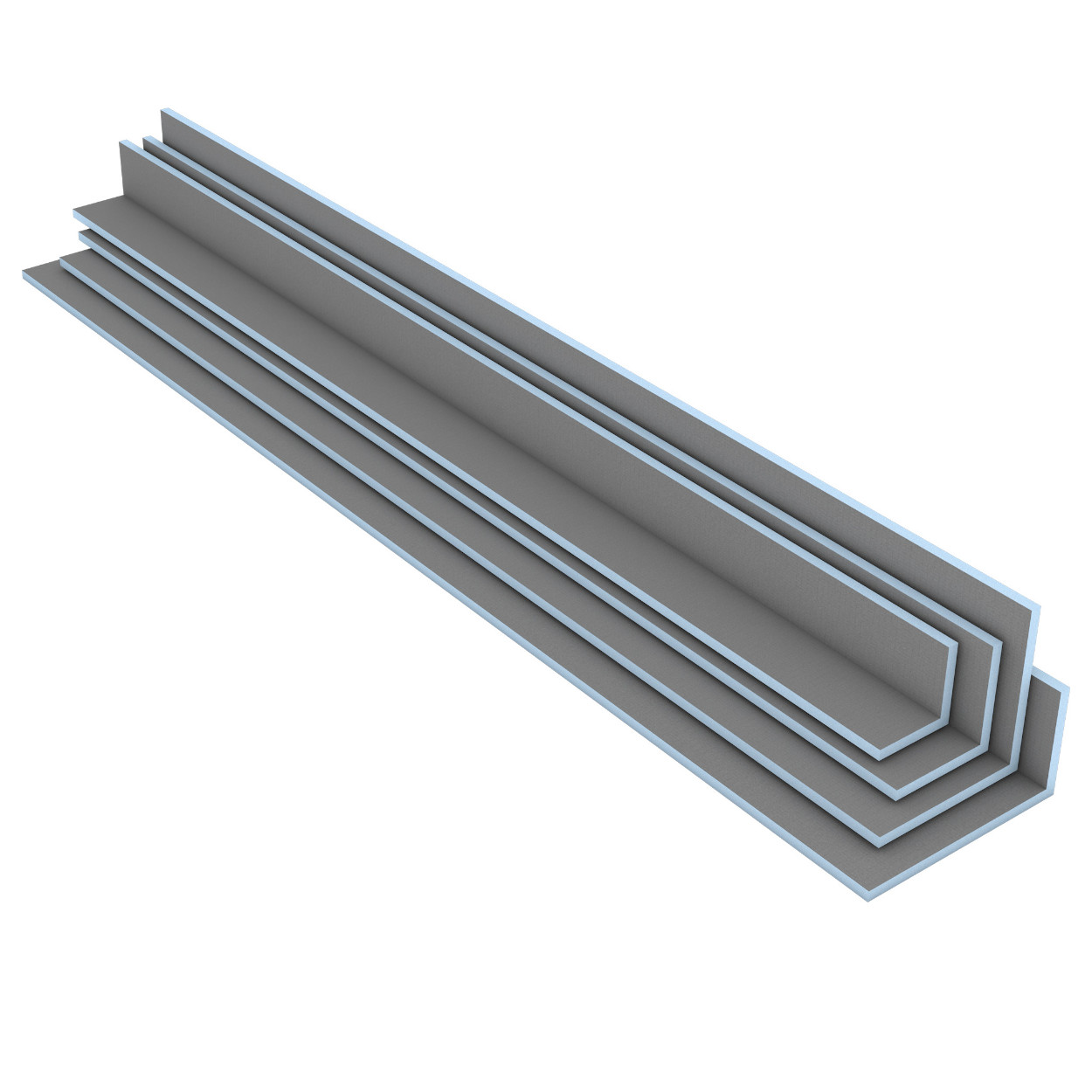

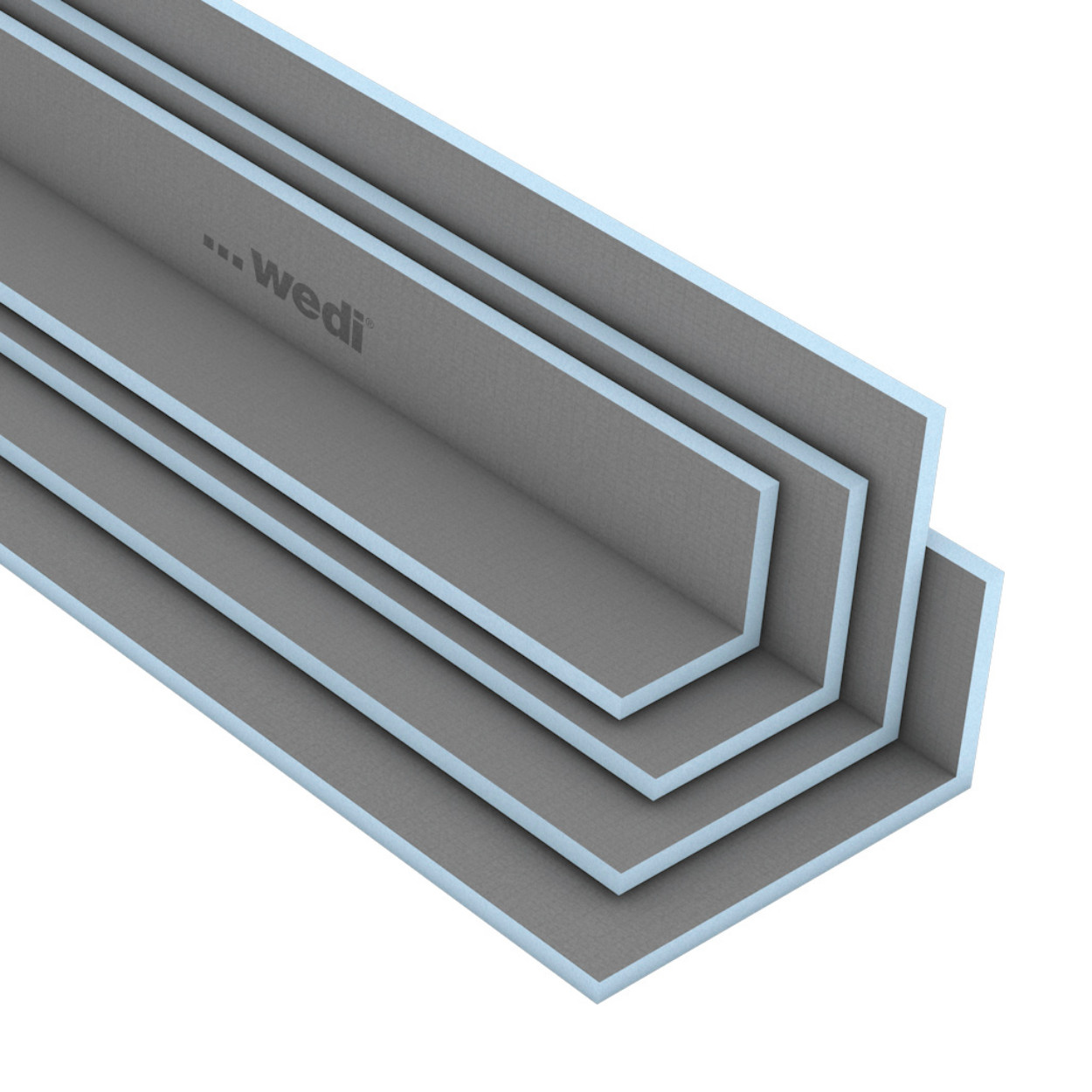

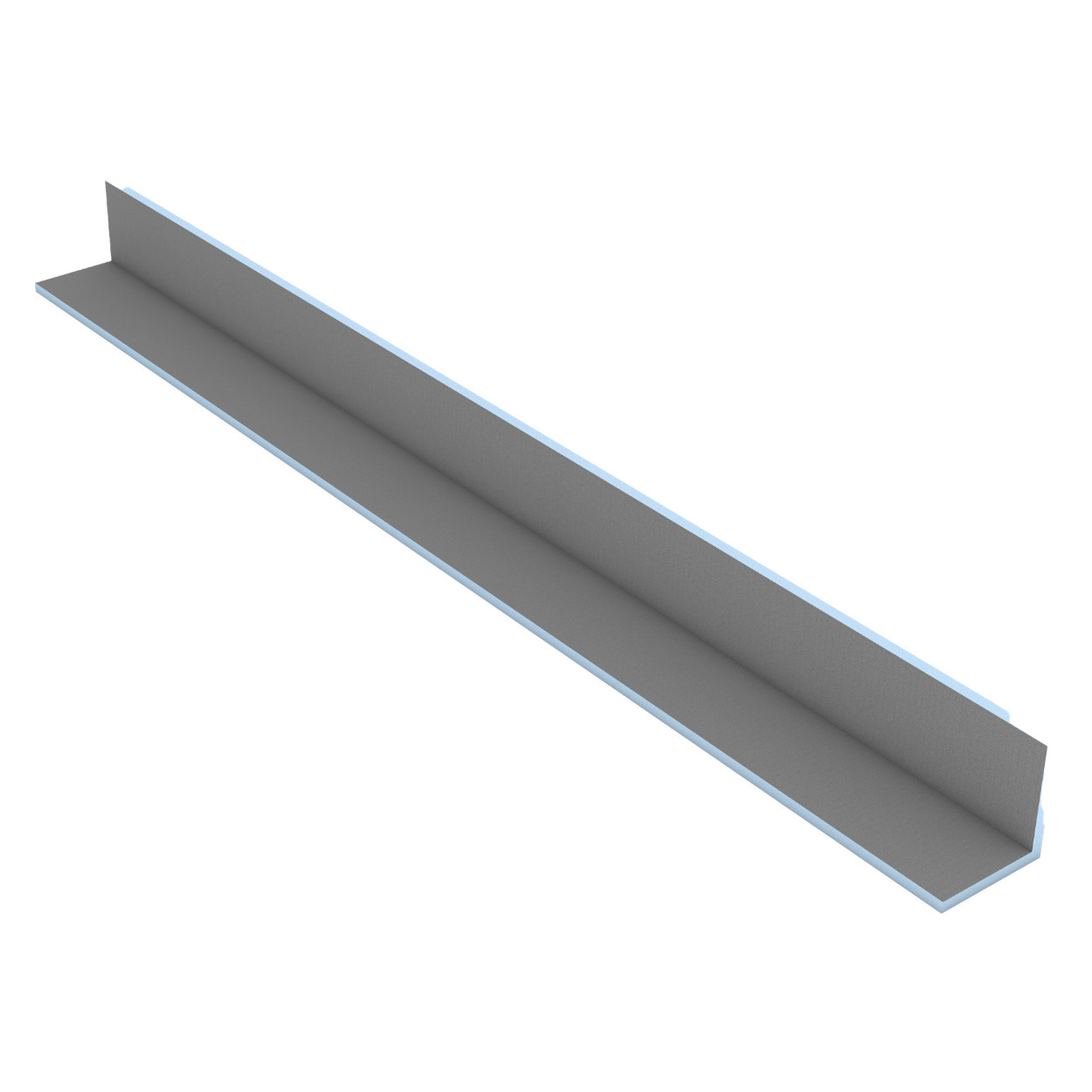

wedi Mensolo L-element – prefab corner profile for clean pipe cladding
The wedi Mensolo L-element is a lightweight prefab corner profile that allows you to neatly conceal pipes, drains and installation zones. The element is fully waterproof, dimensionally stable and ready to tile. Thanks to its high rigidity, it is also ideal for creating niches, shelves and other custom design details in bathrooms and wellness areas.
➕ Prefab L-profile – fast and clean results
➕ Waterproof, thermally insulating and ready to tile
➕ Perfect for pipe cladding, shelving and custom constructions
➕ Seamlessly compatible with all wedi building boards and accessories
Technical specifications
- Type: wedi Mensolo L-element
- Lengths: 2500 mm or 2600 mm
- Profile sizes: 150×150 mm, 200×200 mm, 200×400 mm, 300×300 mm
- Material: XPS core with double-sided mortar coating
- Water absorption: 0% – fully waterproof
wedi Mensolo L – the prefabricated corner element for waterproof boxing, shelves and creative bathroom design
The wedi Mensolo L-element is a ready-made corner profile that allows you to box in pipes, risers, drains and other technical areas quickly, neatly and fully waterproof. Thanks to its robust XPS core and the double-sided, glass-fibre-reinforced mortar layer, the element provides a reliable, directly tileable surface — perfectly suited for tiles, mosaics and cement-based finishes.
The L-shape is ideal for both renovation and new builds: lightweight, dimensionally stable, easy to work with and fully compatible with the complete wedi system.
Prefabricated precision: always clean, fast and accurate
The Mensolo L-element saves considerable installation time because corners no longer need to be built manually on-site. The factory-made precision ensures a perfectly square 90° angle, ideal for tiles and small formats such as mosaics. Bonding with wedi 610 is sufficient to achieve a strong, waterproof construction.
Functional and aesthetic – from pipe boxing to high-end design accents

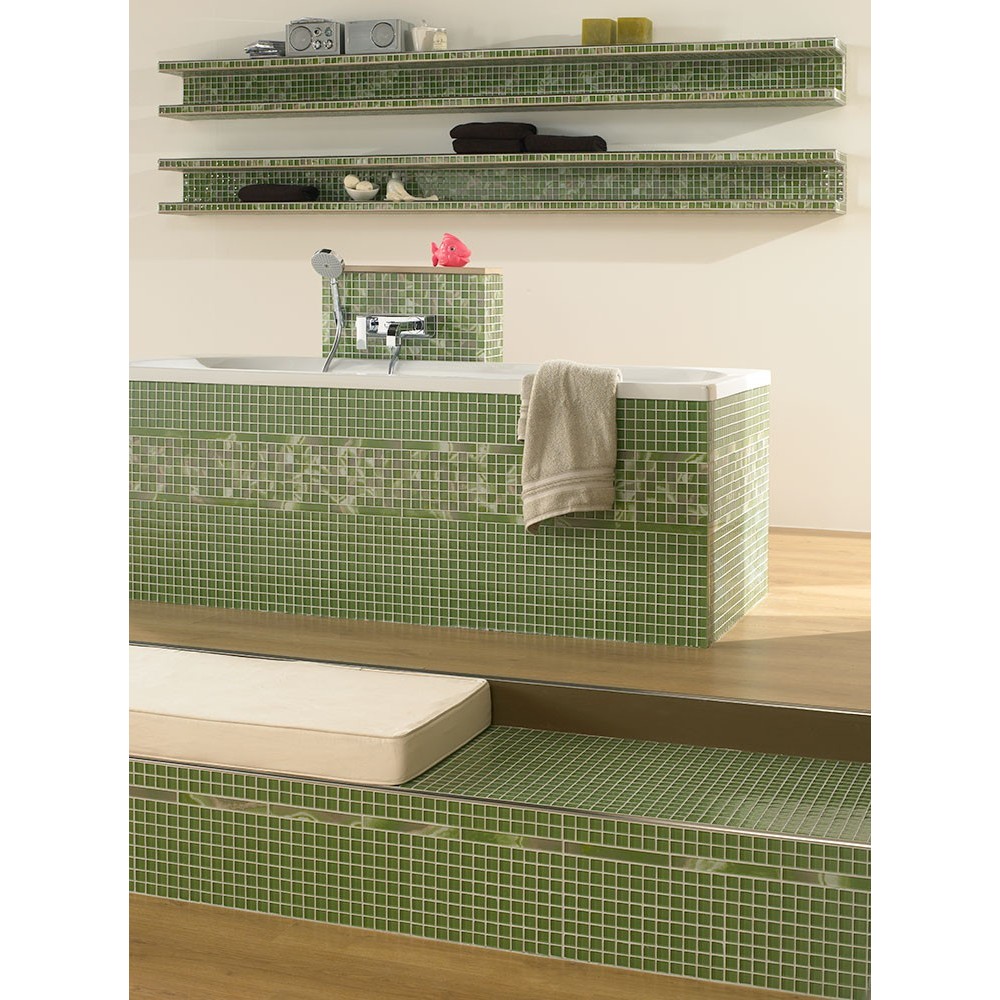

The Mensolo L-element is used both functionally and creatively. Common applications include:
- clean and straight pipe and drain casings
- floating shelves and storage niches
- architectural edges and decorative design lines
- cladding of bathroom furniture or toilet units
- mosaic or small-format tile accents
Thanks to the reinforced mortar surface, even the smallest mosaic tiles bond perfectly.
Fast, waterproof installation with wedi Tools
The Mensolo L-element integrates seamlessly with the entire wedi system. For a fully waterproof installation, use:
- wedi 610 adhesive and sealant
- wedi Reinforcement Tape – for transitions between materials
- wedi Sealing Tape – for waterproof joints
- wedi Washers & Plugs – for optional mechanical fixing
Available dimensions
Mensolo L-elements are available in four profile sizes and two lengths, making them suitable for any situation:
- 150 × 150 mm
- 200 × 200 mm
- 200 × 400 mm
- 300 × 300 mm
- Lengths: 2500 mm and 2600 mm
Specifications
| Manufacturer | wedi |
| Product name | wedi Mensolo L |
| Type | Prefabricated XPS corner element (L-profile) for wet areas |
| Dimensions | 2500 × L or 2600 × L (L = 150/200/300 mm variants) |
| Available widths | 150×150 mm · 200×200 mm · 200×400 mm · 300×300 mm |
| Wall thickness | 20 mm XPS |
| Material | XPS core with glass-fibre-reinforced mortar layer |
| Water absorption | 0% – fully waterproof |
| Suitable for | Tiles, mosaic, cement-based plasters, natural stone |
Part of the complete wedi system
As designs become more complex, the wedi system provides maximum flexibility. In addition to the L-version, there is also the wedi Mensolo U-element, ideal for wider casings, niche constructions and technical applications. Together, these prefabricated elements form a modular system that combines professional build quality with creative design freedom.
