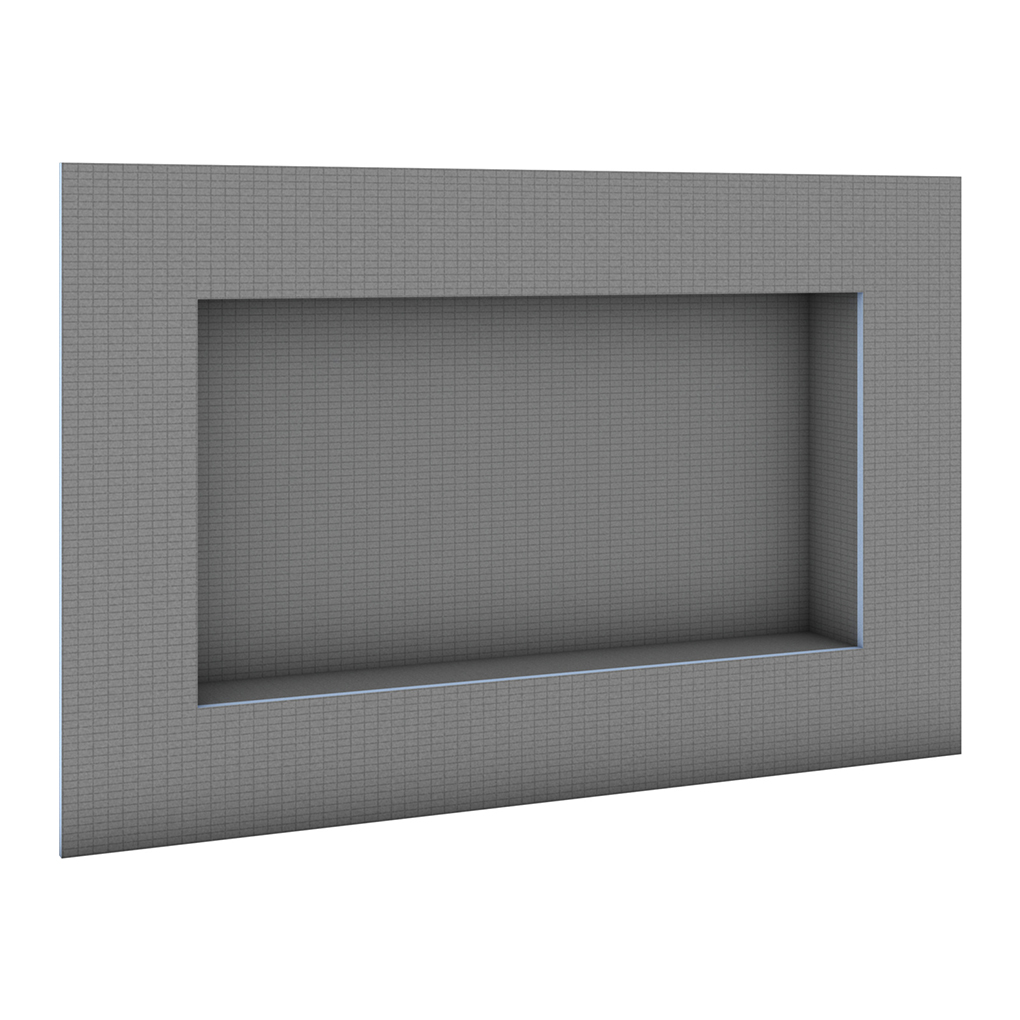

wedi Sanwell shower niche – prefabricated recessed niche for a clean and waterproof finish
The wedi Sanwell shower niche is a ready-to-install, prefabricated recessed niche that delivers a clean, perfectly square and fully waterproof result in showers and bathrooms. Supplied as a single complete unit, it enables fast, reliable installation with minimal effort. No chasing out, no complicated waterproofing steps – just a niche that is ready for tiling straight away.
➕ Prefabricated shower niche, fully waterproof
➕ Precisely square with a crisp, clean finish
➕ Directly tileable, also ideal for mosaic
➕ Available in multiple sizes and depths
Technical specifications
- Brand: wedi
- Series: Sanwell
- Type: Prefabricated recessed niche
- Available internal dimensions: 234 × 434 mm or 334 × 634 mm
- Depth (internal): 70 mm or 100 mm
- Frame flange: 10 mm or 12.5 mm
- Construction: One-piece prefabricated element
- Finish: Directly tileable

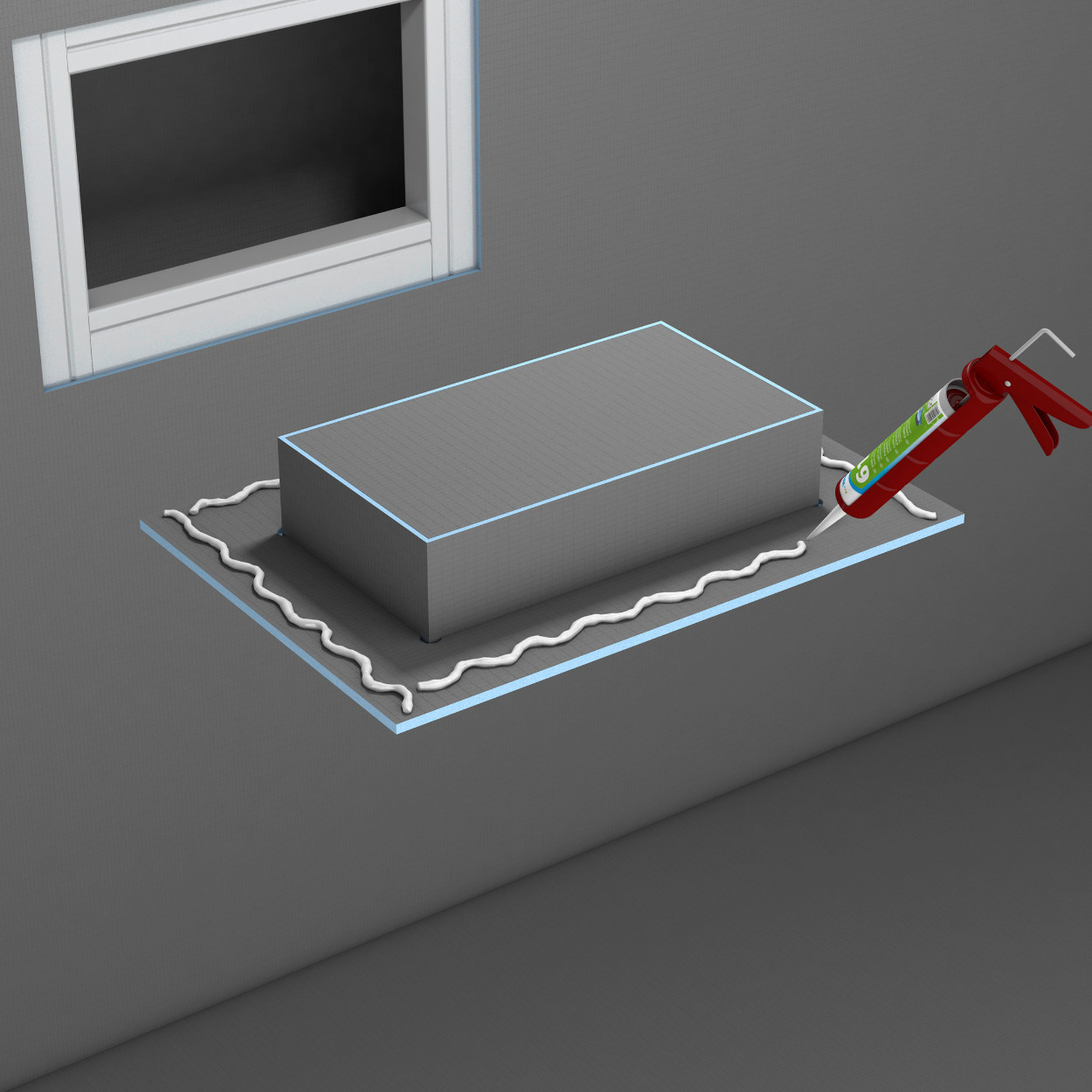

- Installation: Bonding with wedi 610
- Application: Shower, bathroom, wellness and spa

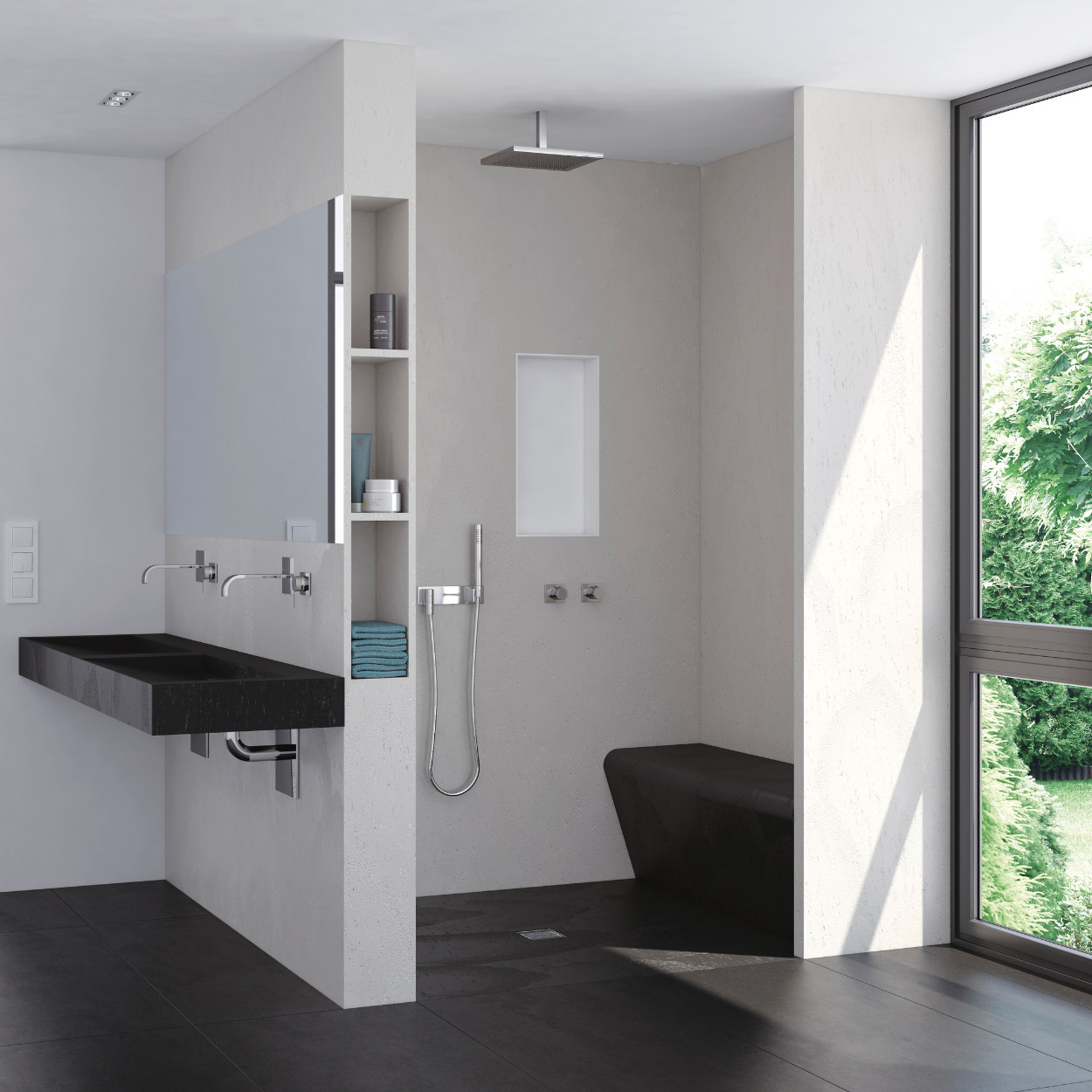

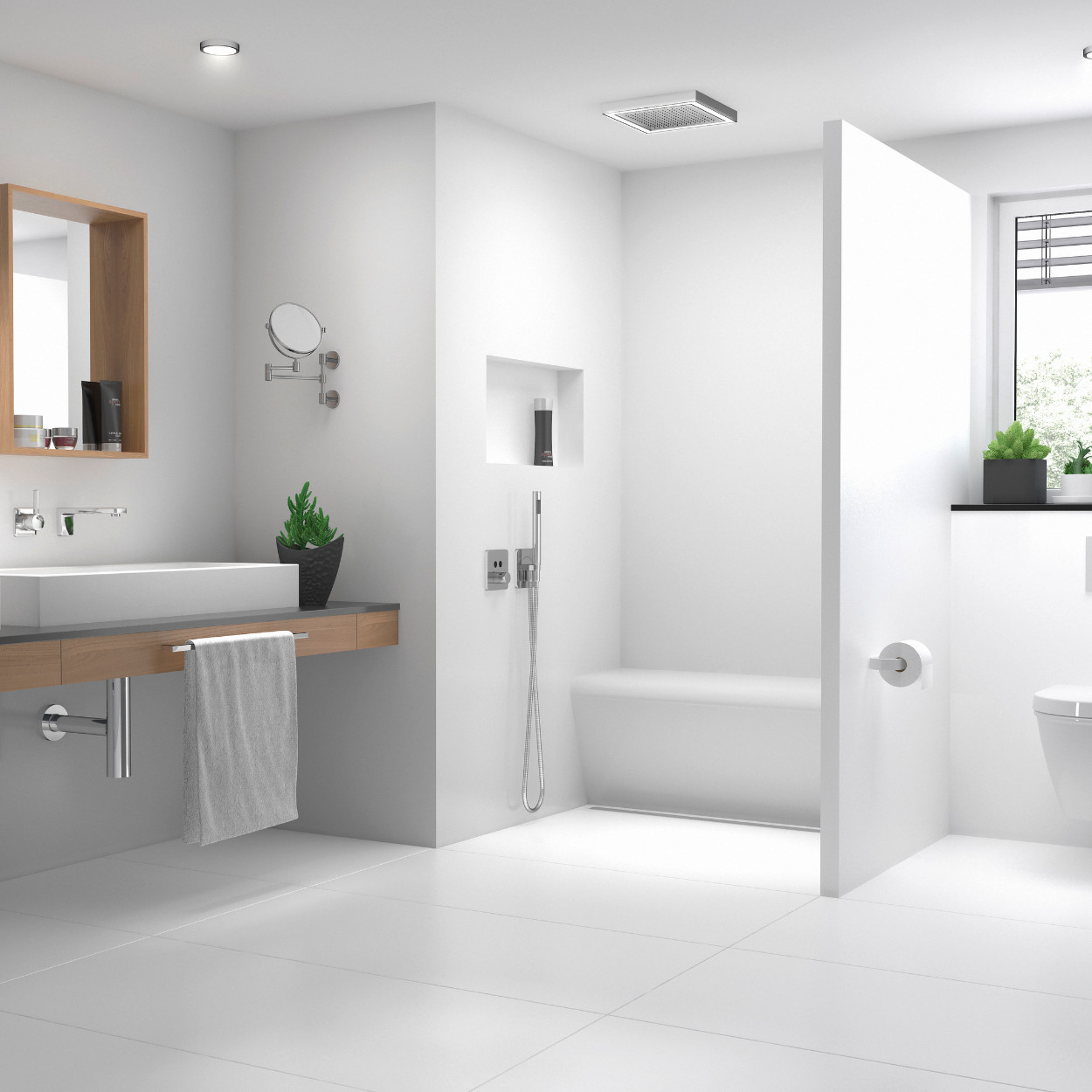

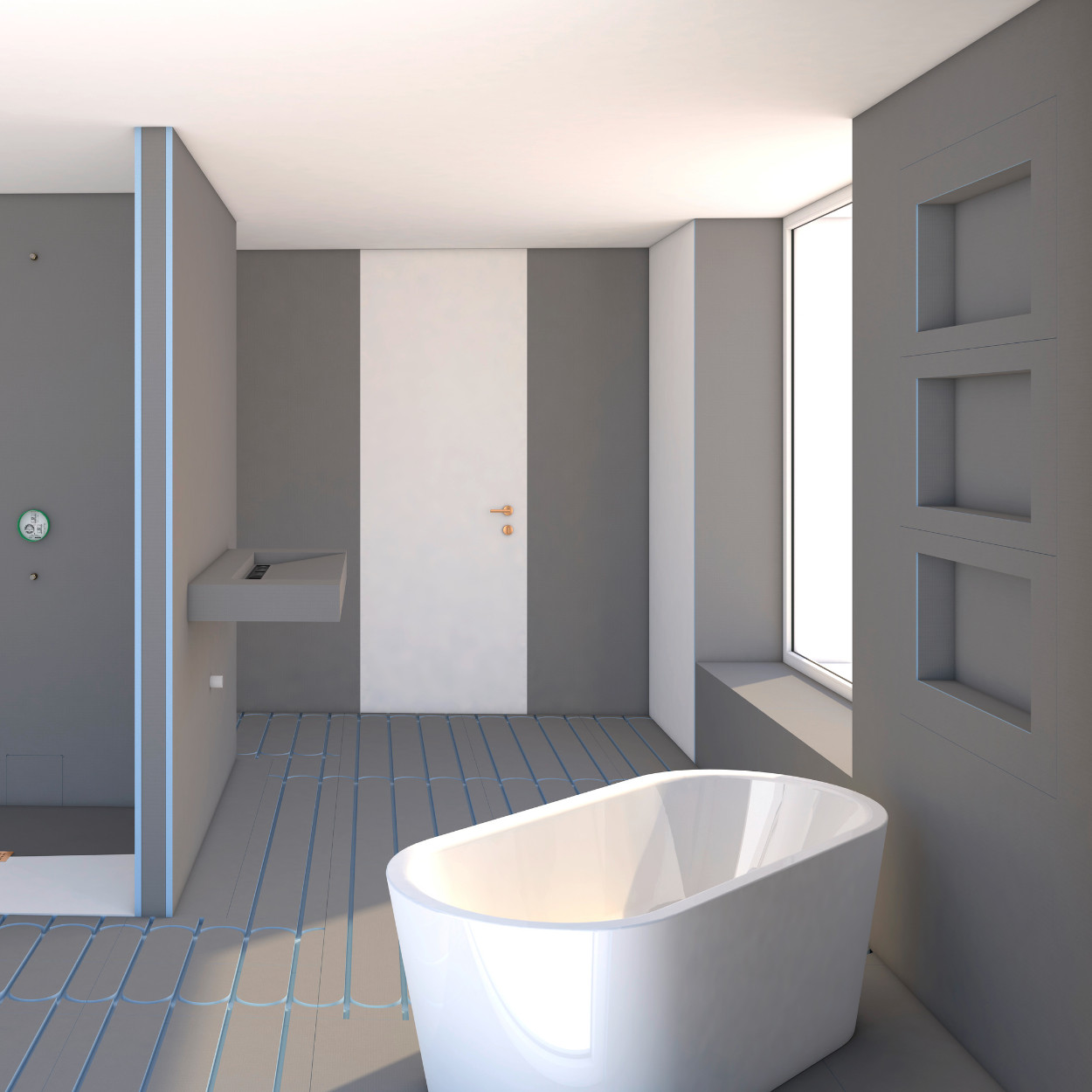

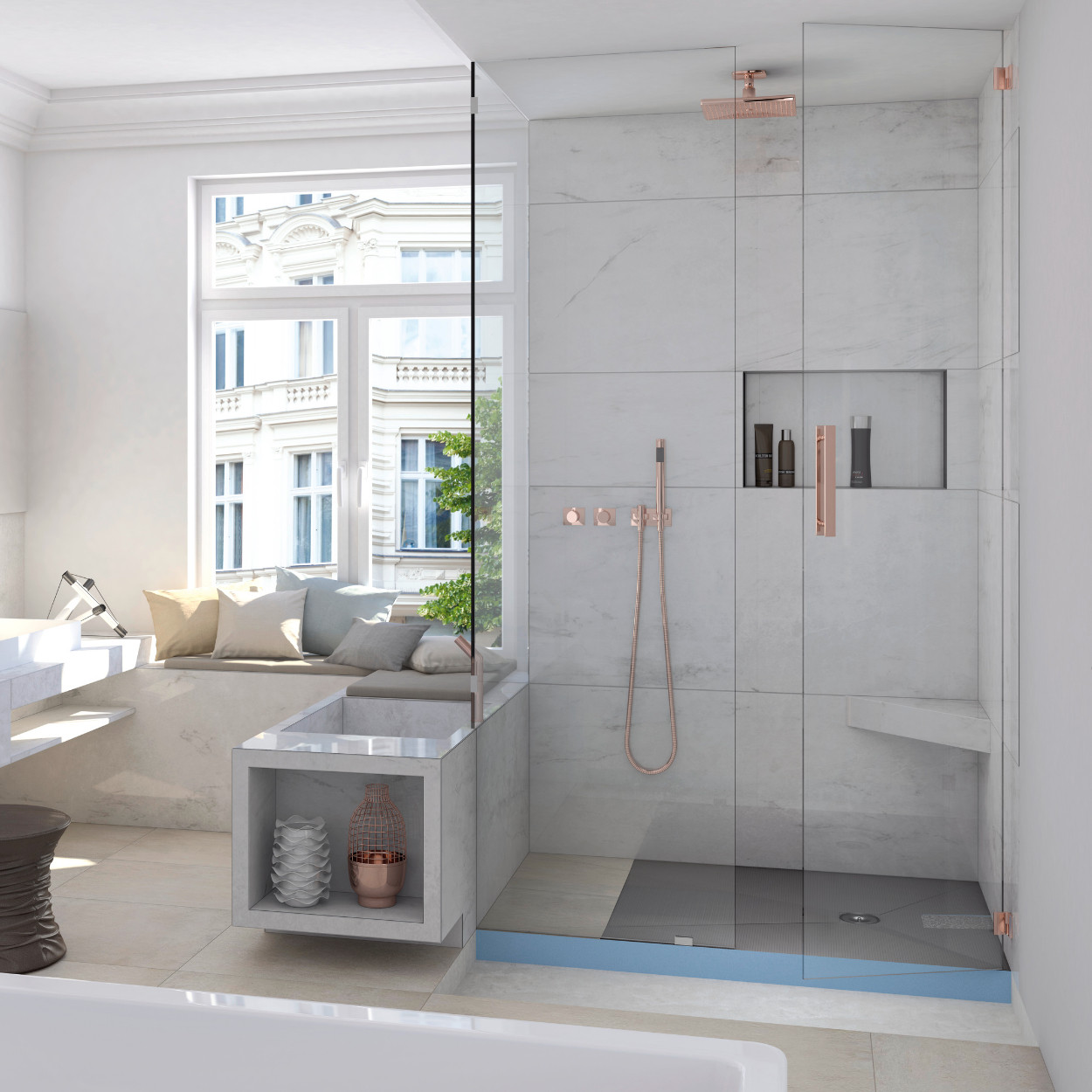

The wedi Sanwell shower niche is ideal as a stylish storage space for shampoo and accessories, but it can also be used as a shelf by the basin, above the bath or in other bathroom walls. Within the wedi Sanwell range, complete wall modules with an integrated niche and Sanwell design tops (with or without LED) are also available for an even faster, seamless finish.
wedi Sanwell shower niche – prefab recessed niche with clear dimensional logic

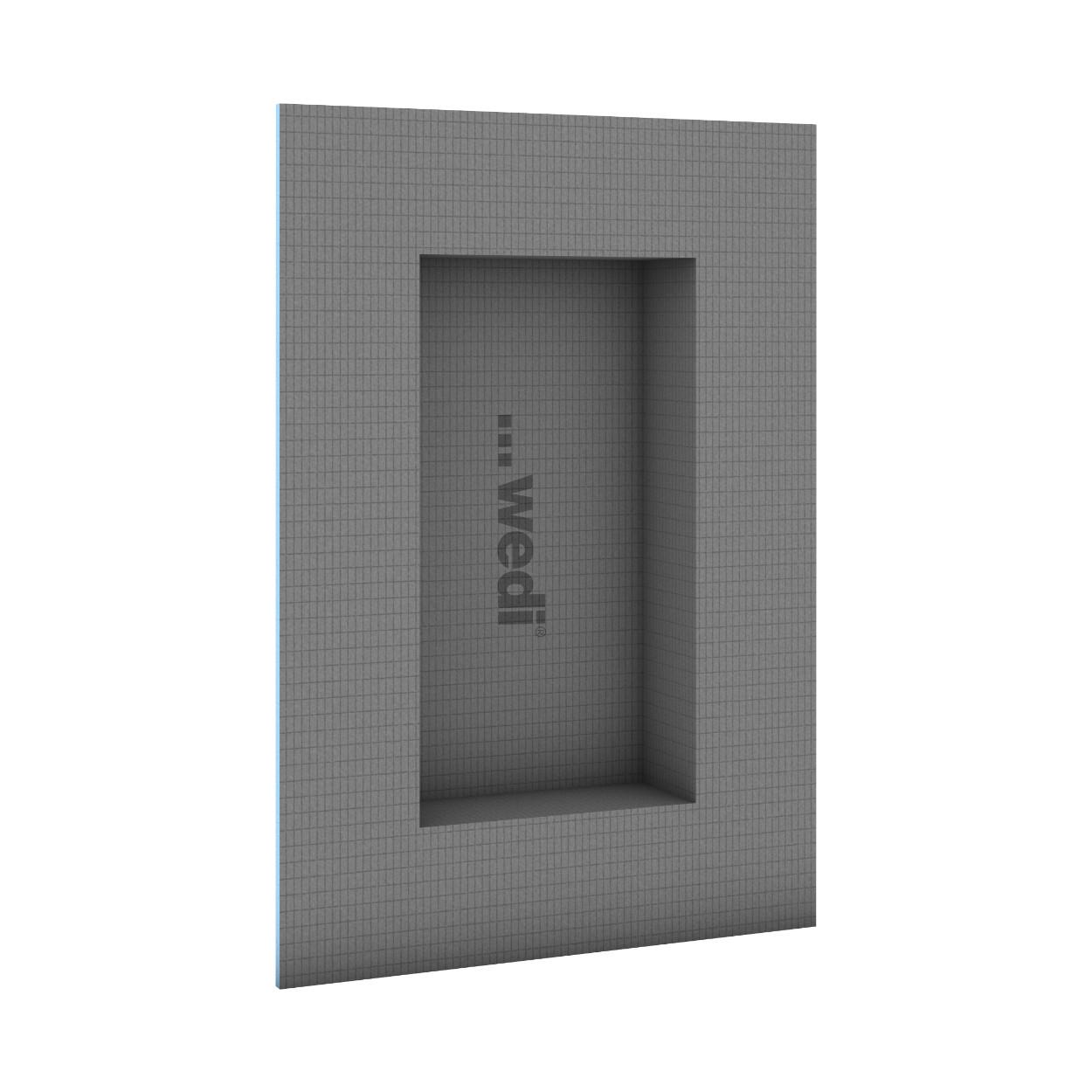

The wedi Sanwell shower niche is a prefabricated recessed niche developed for fast, waterproof and perfectly aligned installation in shower walls and bathroom constructions. Because the niche is delivered as a complete prefab element, it is fully waterproof, precisely square and immediately ready for tiling. This eliminates alignment errors, uneven edges and complex sealing details during installation.
Clear connection between product name and dimensions
On the website, the Sanwell niches are offered under fixed product names such as 20/40 and 30/60, combined with a frame flange thickness of 10 mm or 12.5 mm. These designations directly refer to the exact internal dimensions of the niche:
- Sanwell niche 20/40 → internal dimensions 434 × 234 mm
- Sanwell niche 30/60 → internal dimensions 634 × 334 mm
The total external dimensions consist of the niche body plus the surrounding frame flange. This results in the following fixed and clearly defined external sizes:
- Sanwell niche 20/40 → external dimensions 654 × 454 mm
- Sanwell niche 30/60 → external dimensions 854 × 554 mm
Frame flange 10 mm or 12.5 mm – how to interpret this

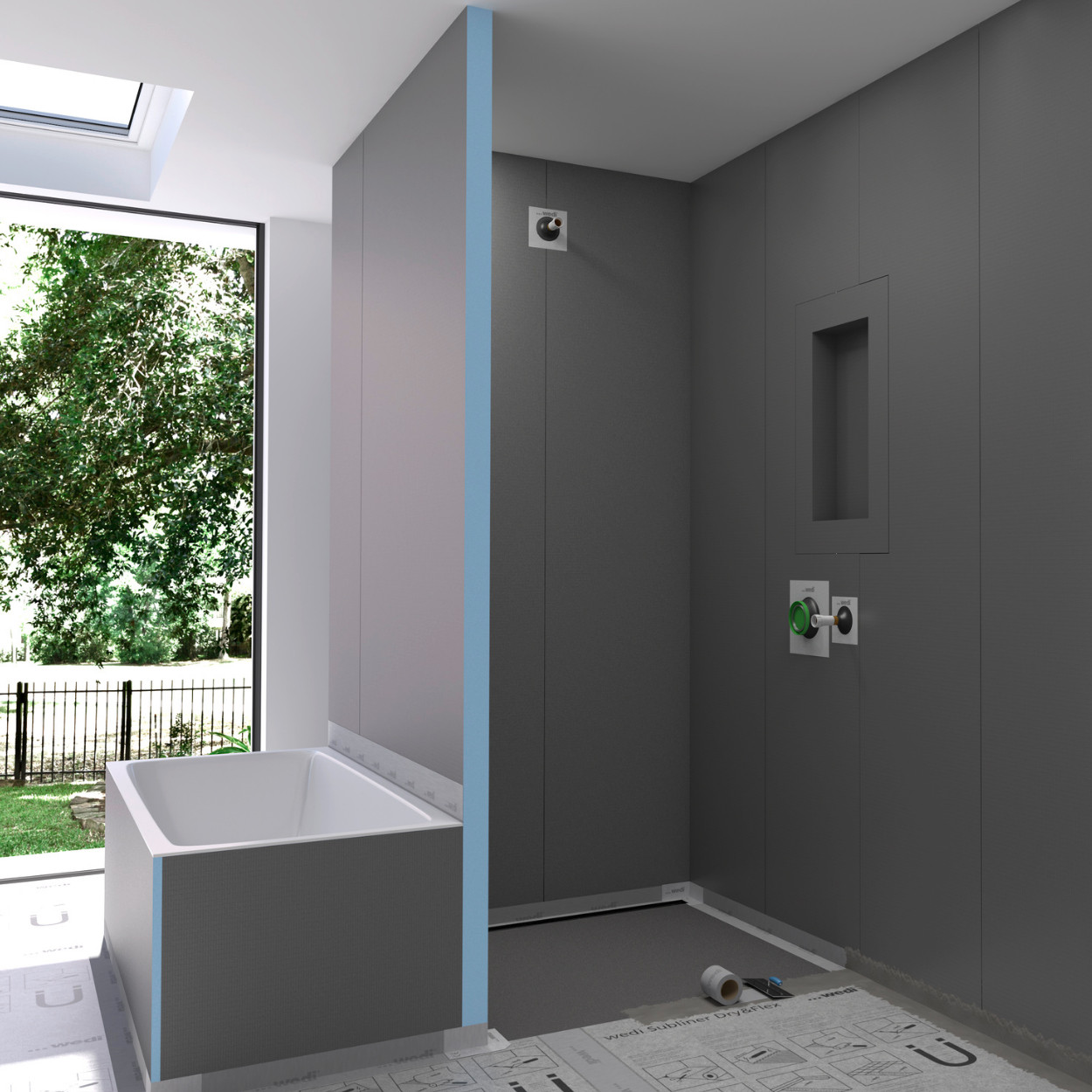

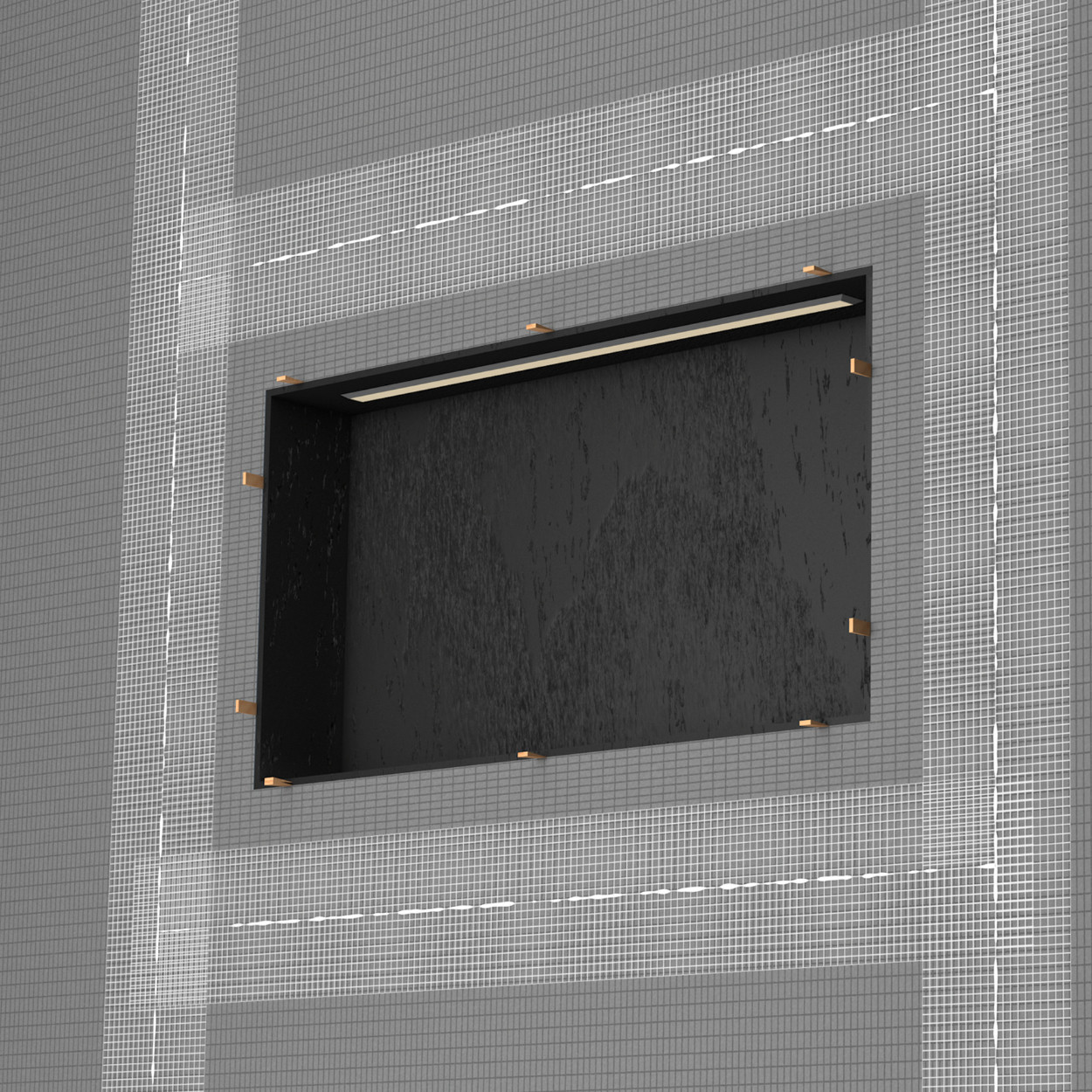

The frame flange is the surrounding edge of the niche that ensures a precise connection to the wall construction. The selected flange thickness directly corresponds to the thickness of the wedi building boards used:
- 10 mm frame flange for wall constructions using 10 mm wedi boards
- 12.5 mm frame flange for wall constructions using 12.5 mm wedi boards
This ensures that the niche sits flush with the finished wall surface after installation, resulting in a clean and professional appearance without additional leveling work.
Installation depth of 70 mm or 100 mm
The wedi Sanwell shower niche is available with an installation depth of 70 mm or 100 mm. This depth determines both the available space inside the wall and the usable depth of the niche. The correct option depends on the wall build-up and the available installation space behind the niche.

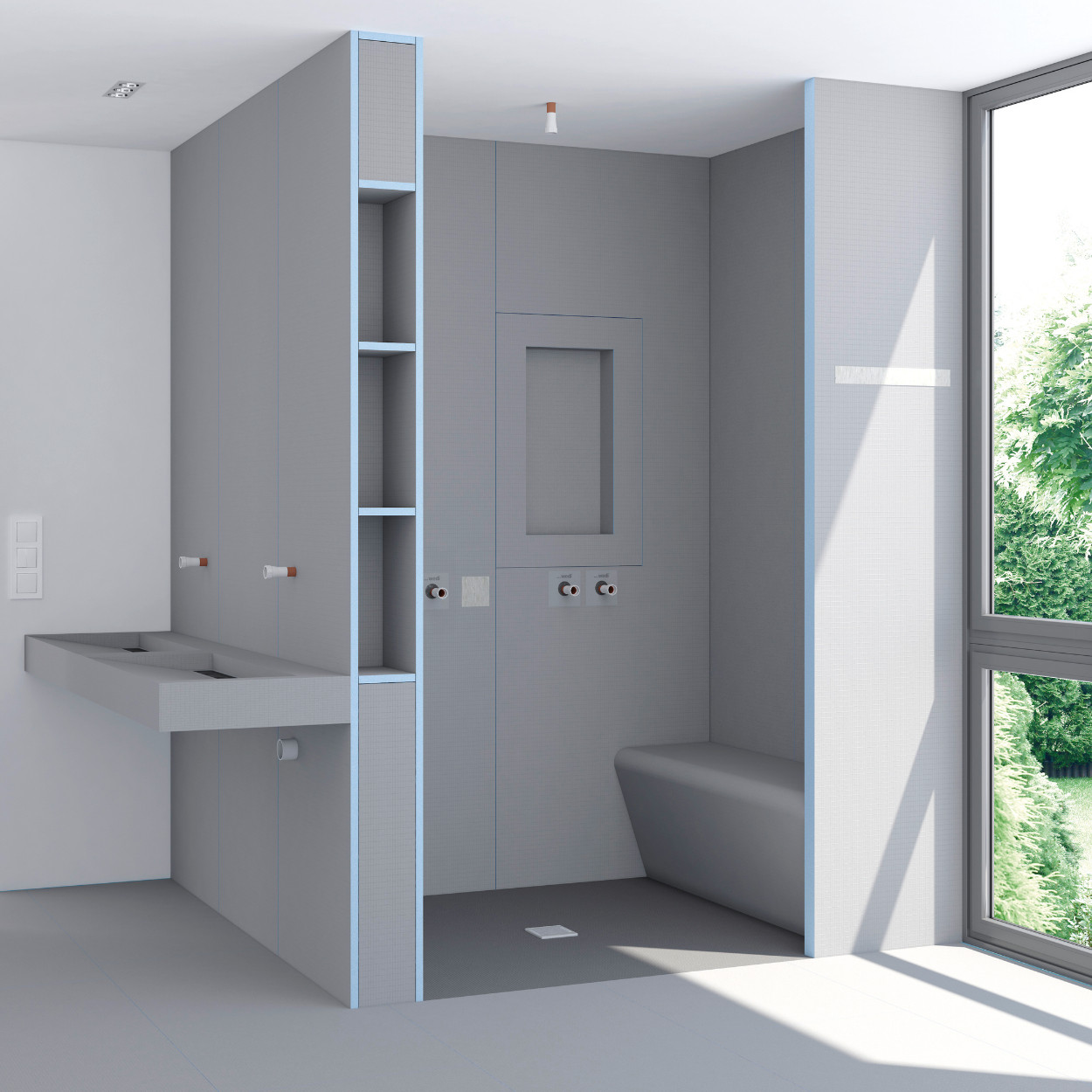

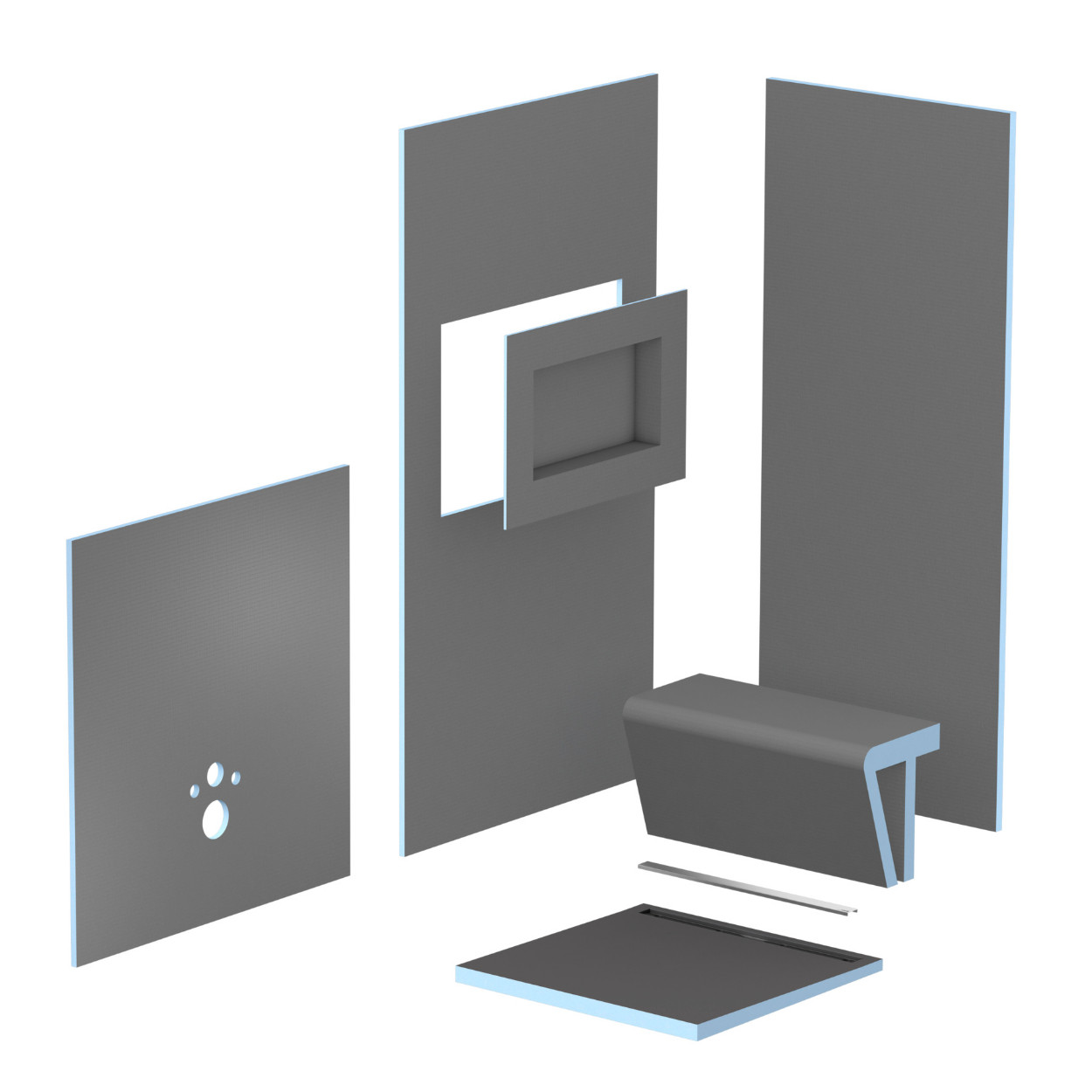

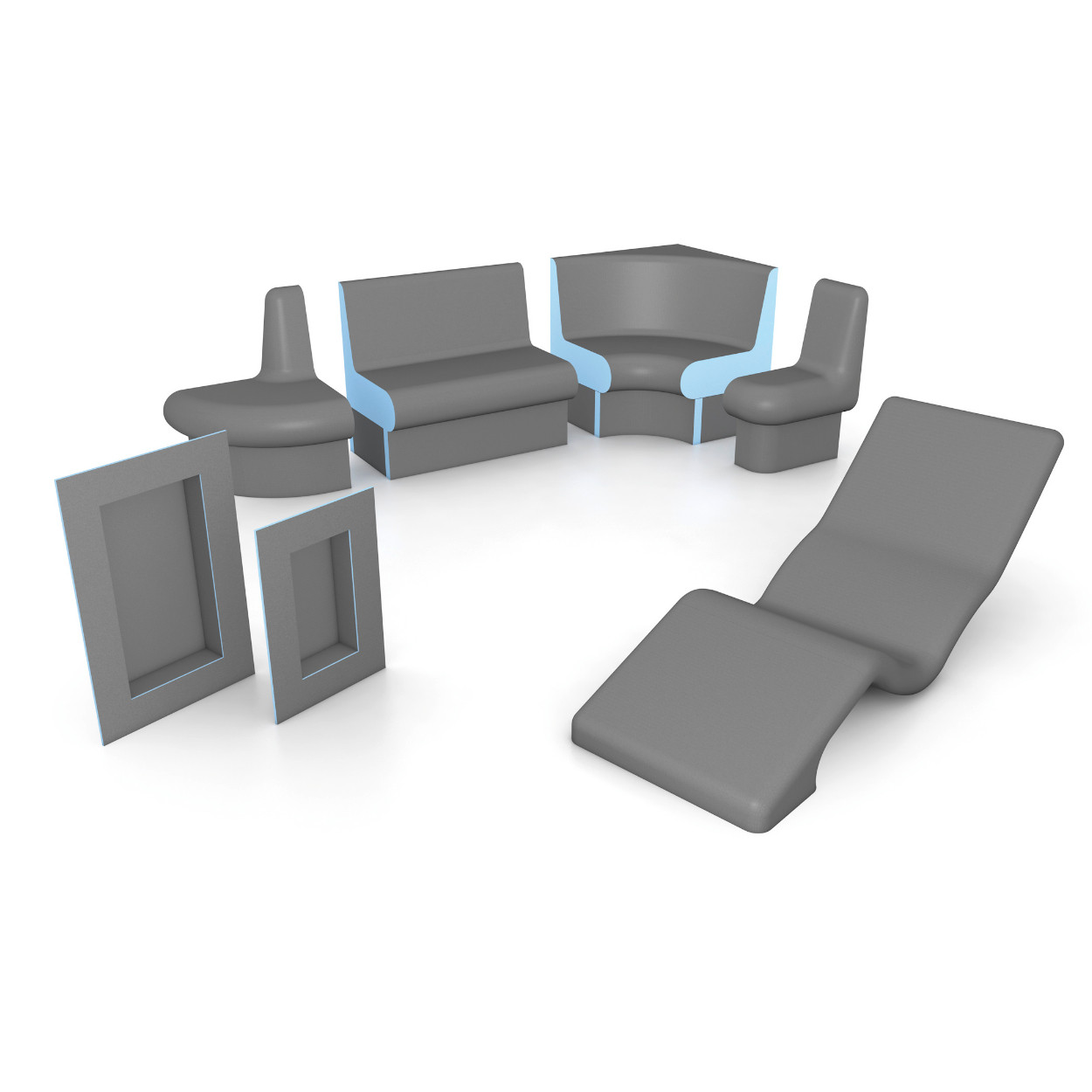

Expandable with wall modules and Sanwell Top finishes

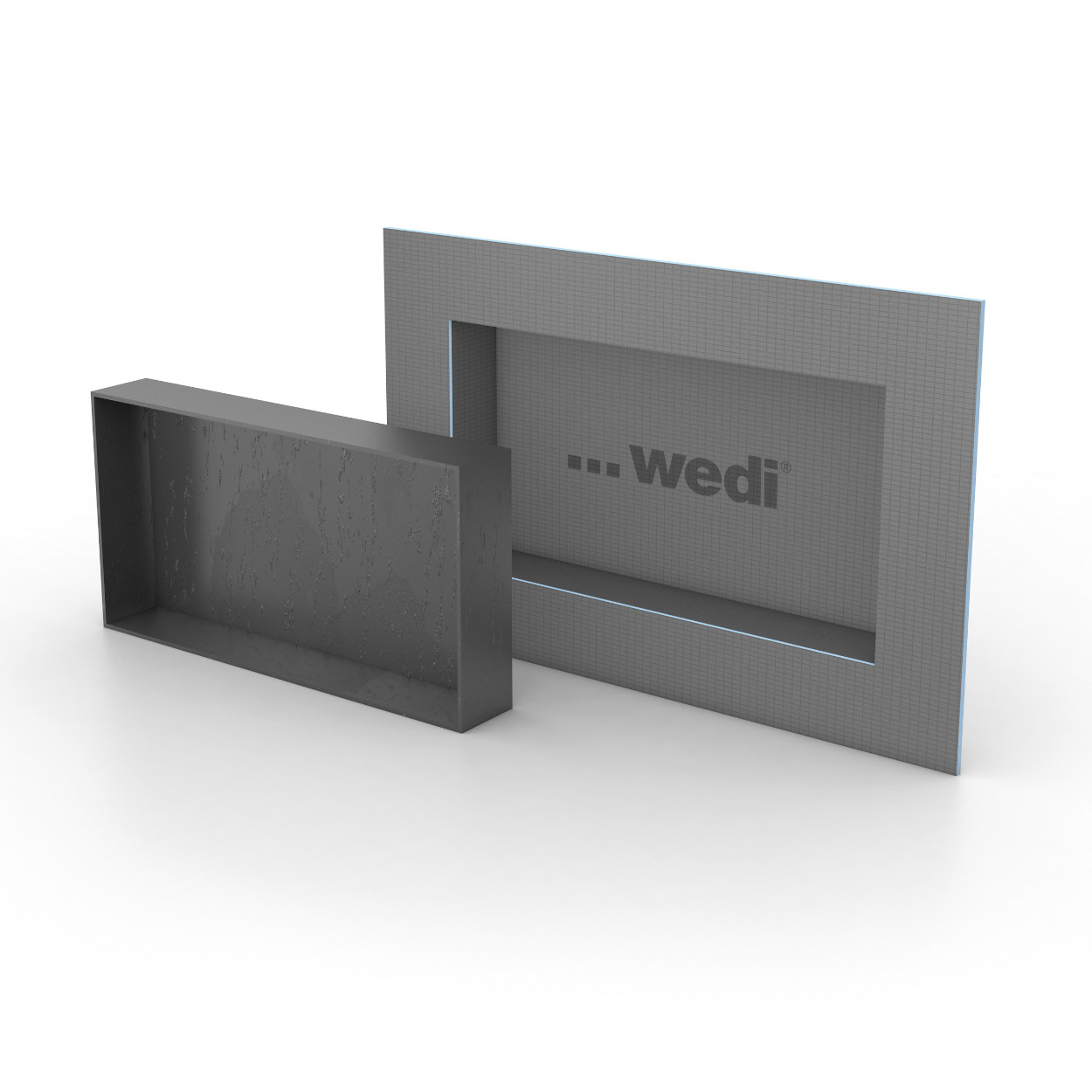

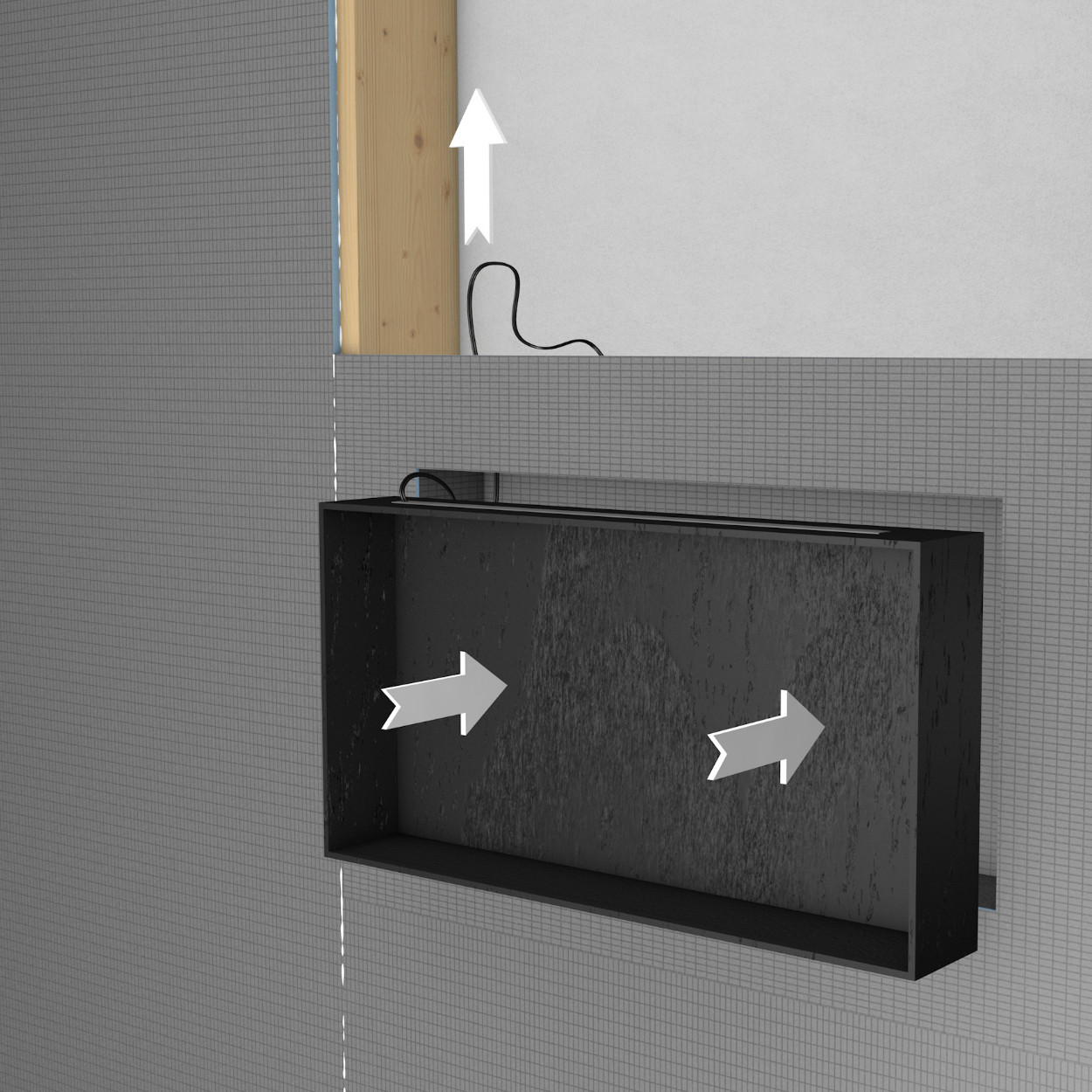

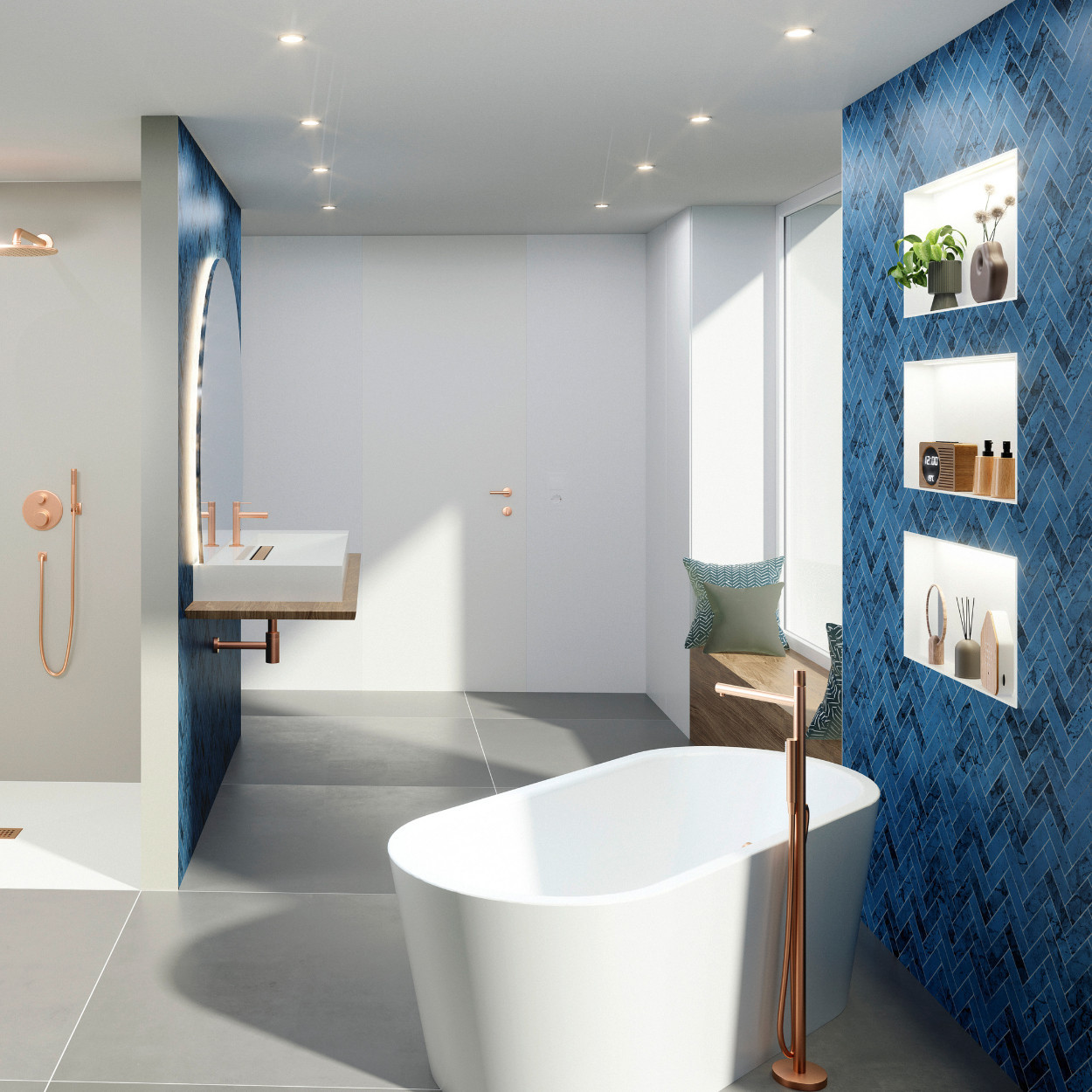

The standalone Sanwell niche can be combined with complete wedi wall modules in which the niche is already prefabricated. In addition, wedi Sanwell Top and Sanwell Top LED finishes are available. These tops provide a seamless, tile-free alternative that offers a refined, low-maintenance and fully waterproof finish inside the niche.
Why choose the wedi Sanwell shower niche?
- Prefabricated recessed niche, perfectly square and fully waterproof
- Exact dimensional logic linked directly to product naming
- Available in 20/40 and 30/60 size variants
- Frame flange matched to 10 mm or 12.5 mm wall constructions
- Ready for tiling or Sanwell Top surface finishes
- Fully compatible with wedi wall modules and installation systems
Specifications – wedi Sanwell shower niche
| Brand | wedi |
| Series | Sanwell |
| Type | Prefabricated recessed niche |
| Variants | 20/40 and 30/60 |
| Internal dimensions 20/40 | 434 × 234 mm |
| External dimensions 20/40 | 654 × 454 mm |
| Internal dimensions 30/60 | 634 × 334 mm |
| External dimensions 30/60 | 854 × 554 mm |
| Frame flange | 10 mm or 12.5 mm |
| Installation depth | 70 mm or 100 mm |
| Material | XPS foam with fiberglass reinforcement |
| Properties | 100% waterproof, lightweight, directly tileable |
| Application | Shower, bathroom, wellness and spa |
Clean, fast and professional results
With the wedi Sanwell shower niche, you choose certainty, clearly defined dimensions and a flawless end result. Thanks to the direct link between product name, internal dimensions and external dimensions, it is immediately clear which niche fits the chosen wall construction and application.
