The wedi Sanwell shower wall module is a high-end prefab solution that combines construction, waterproofing and installation technology in one complete wall element. This innovative module is supplied ready-made, including integrated water pipes and a factory-installed Hansgrohe iBox, ensuring fast, safe and error-free installation.
➕ Prefab shower wall with integrated water supply
➕ Hansgrohe iBox factory-installed and fully sealed
➕ Available with or without an integrated niche
➕ Directly ready for tiling or wedi Top finishing
The wedi Sanwell shower wall module is ideal for projects where speed, reliability and premium finishing are essential. Thanks to the prefab design and integrated technology, installation time is significantly reduced while guaranteeing a fully waterproof result.
The wedi Sanwell shower wall module is a premium prefab solution that allows a complete shower wall to be installed in a single element. This module combines structural strength, waterproof construction and integrated installation technology in one factory-produced wall element. Water pipes and the Hansgrohe iBox are pre-installed and sealed at the factory, eliminating installation errors and significantly reducing on-site work.
The Sanwell shower wall module is based on wedi’s long-standing expertise in custom manufacturing. While these solutions were previously produced exclusively on a project basis, wedi now offers a range of standard configurations. These modules are based on the most commonly requested dimensions while still allowing adjustments on site.

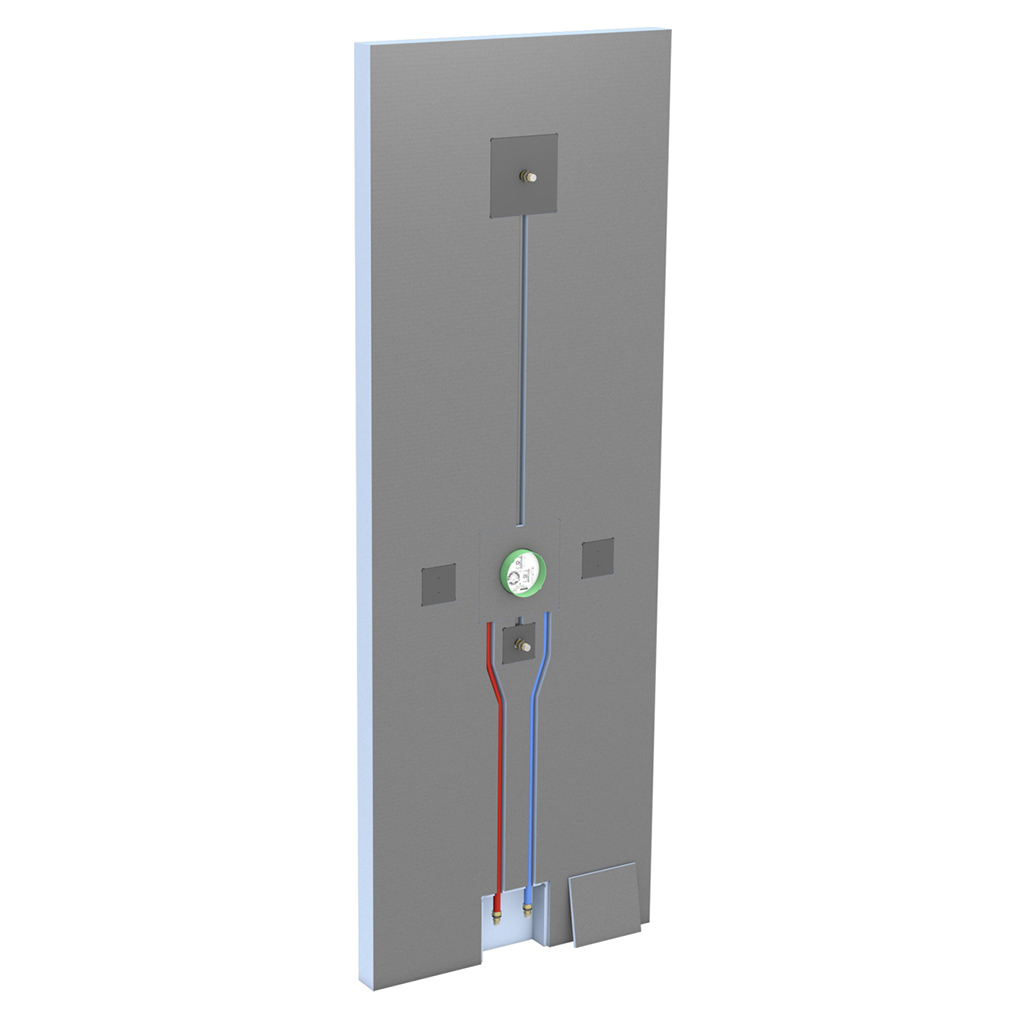

The module is supplied in a fixed height of 2,500 mm, with a choice of two widths and two thicknesses. In addition, the wall can be supplied with or without an integrated niche. Custom-made solutions remain available for special projects.
A key advantage of the wedi Sanwell shower wall module is the fully integrated pipework. All water connections are factory-installed, precisely positioned and permanently sealed. The integrated Hansgrohe iBox is compatible with more than 200 Hansgrohe and AXOR concealed fittings, providing maximum flexibility in fixture selection.
The outlet heights for the shower head and hand shower can be individually defined, allowing the shower layout to be tailored to personal or project-specific requirements.

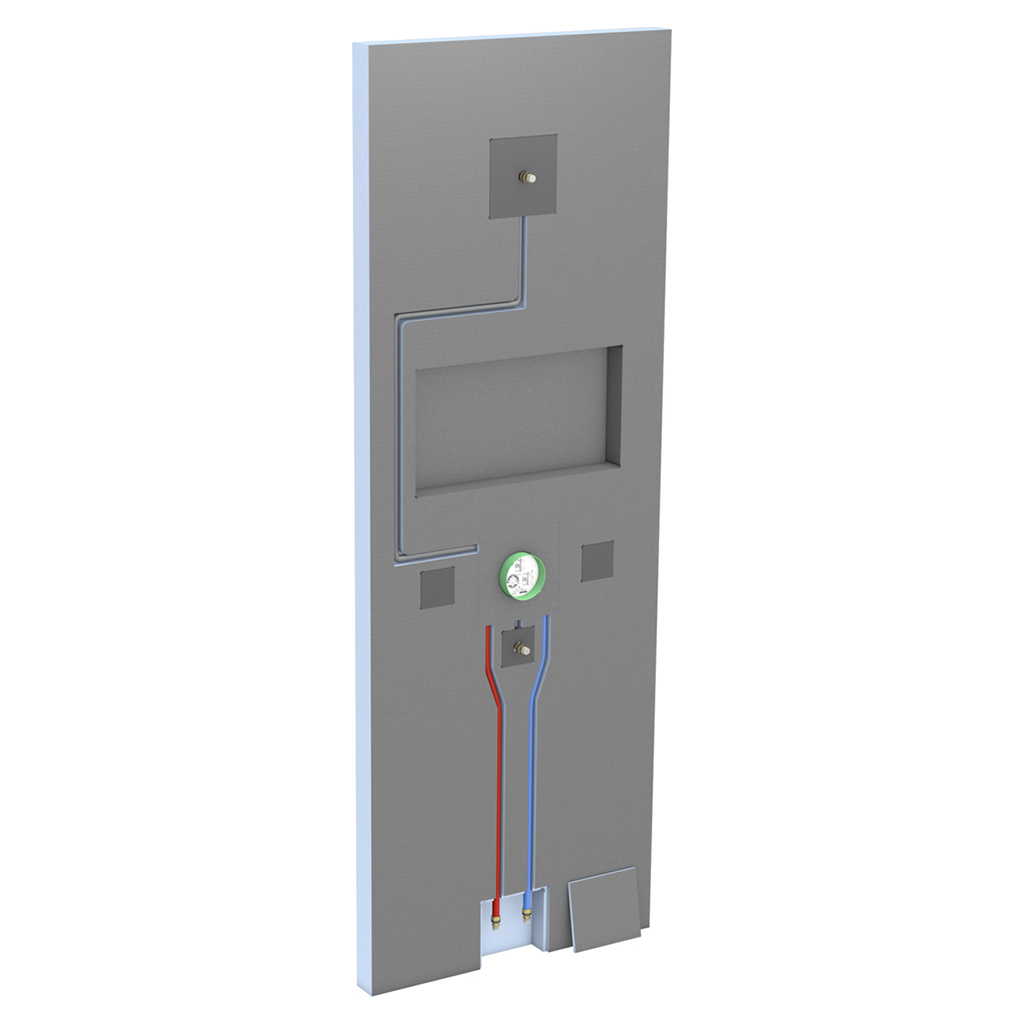

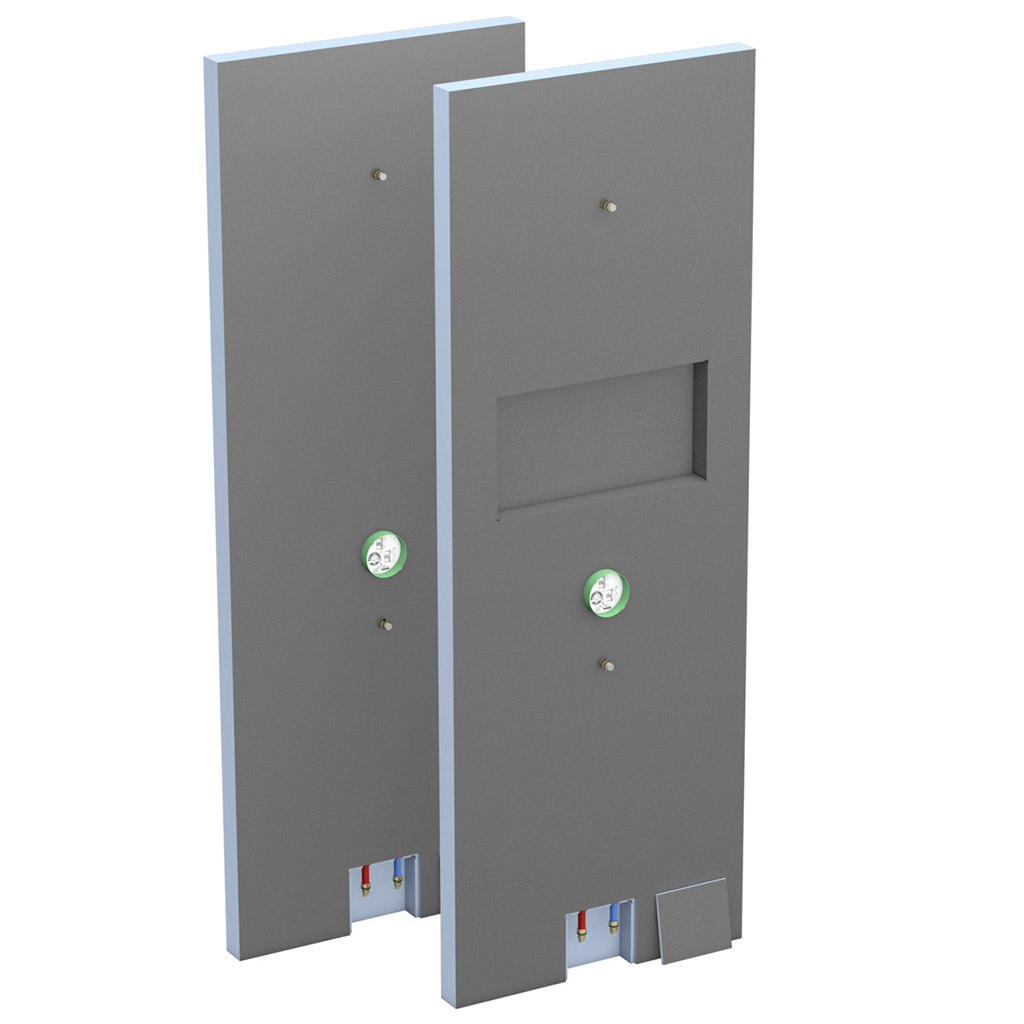

The wedi Sanwell shower wall module is available with or without a prefab integrated niche. The version with niche provides immediate storage space for shower accessories and integrates seamlessly with other Sanwell solutions, such as standalone prefab niches and Sanwell Top or Sanwell Top LED finishes. This ensures a consistent, clean and high-end appearance without additional construction work.
The shower wall module can be used as a rear shower wall or as a free-standing partition wall. Thanks to the prefab construction, the module can still be cut or adjusted on site if required. Installation is carried out by bonding the wall using wedi 610 adhesive and sealing compound, followed by waterproof joint reinforcement with mesh tape. After installation, the wall is immediately ready for tiling or finishing with wedi Top.
| Brand | wedi |
| Series | Sanwell |
| Type | Prefab shower wall module with integrated technology |
| Height | 2,500 mm |
| Width | 900 mm or 1,200 mm |
| Thickness | 80 mm or 100 mm |
| Version | With niche or without niche |
| Pipework | Factory-integrated |
| Integrated system | Hansgrohe iBox |
| Finish | Directly tileable or wedi Top |
| Installation | Bonding with wedi 610 |
| Application | Shower wall, partition wall, bathroom and wellness |
With the wedi Sanwell shower wall module, you choose a complete and innovative solution that simplifies installation, reduces construction time and guarantees a premium finish. The combination of prefab construction, integrated technology and flexible configuration options makes this module ideal for professional projects as well as high-end residential bathrooms.
The wedi Sanwell shower wall module is a prefab shower wall in which installation technology and waterproofing are fully integrated. Depending on the version, the module includes factory-integrated pipework with a Hansgrohe iBox (standard Sanwell) or integrated hot and cold water pipes for exposed mixers (Sanwell XS). The wall is completely waterproof, ready for tiling and designed to significantly speed up shower installation.
The standard wedi Sanwell shower wall module is a full-width prefab shower wall with integrated pipework and a Hansgrohe iBox for concealed mixers. The Sanwell XS is a slim 300 mm wide installation module developed for exposed mixers and situations with limited space, such as renovations or installation between studs. Both solutions offer prefab reliability but differ in width and application.
Because the pipework is factory-installed and fully sealed, no chasing or cutting is required on site. This reduces the risk of installation errors, saves installation time and ensures a reliable, waterproof connection for the overhead shower.
The Sanwell XS is ideal for renovation projects, existing buildings and situations with limited installation space. Thanks to its slim width of just 300 mm, the module can easily be installed between studs or combined with standard wedi Building Boards to create a complete shower wall.
The standard Sanwell shower wall module has a fixed height of 2,500 mm and is available in widths of 900 mm and 1,200 mm, with wall thicknesses of 80 mm or 100 mm and an optional integrated niche. The Sanwell XS has fixed dimensions of 2,500 × 300 × 50 mm and is designed as a compact installation module for exposed mixers.

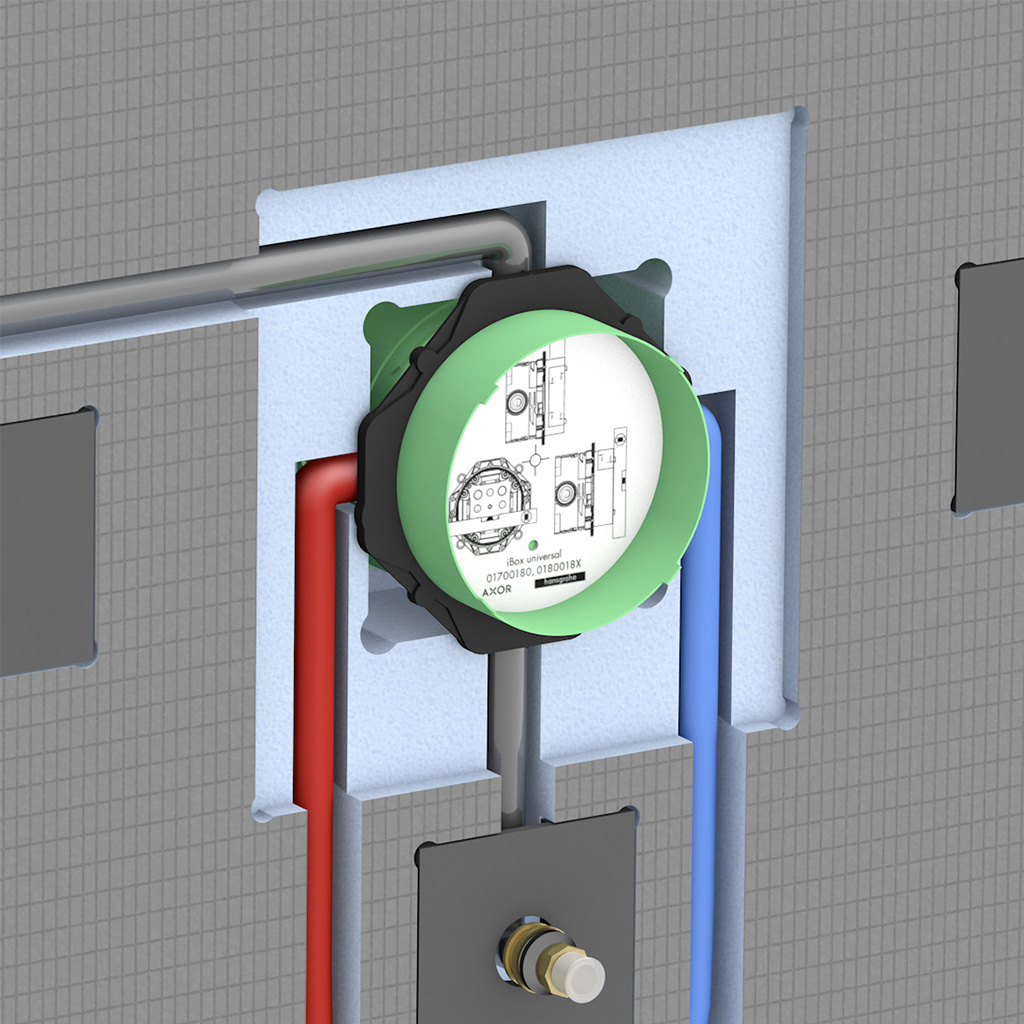

The standard Sanwell shower wall module includes an integrated Hansgrohe iBox and is compatible with more than 200 concealed mixers from Hansgrohe and AXOR. The Sanwell XS is designed for exposed mixers and provides a stable, reinforced base for an overhead shower with exposed fittings.
The delivery includes the prefab shower wall module with factory-integrated pipework. Depending on the version, this includes a Hansgrohe iBox (standard Sanwell) or integrated hot and cold water pipes (Sanwell XS), as well as integrated PVC reinforcement plates for the secure installation of shower fittings and accessories.
Yes, both the standard Sanwell and the Sanwell XS shower wall modules are ready for tiling immediately after installation. Thanks to the waterproof XPS construction and installation with wedi 610 adhesive and sealant, no additional waterproofing layer is required.
