wedi Sanwell wall element XL & XXL – prefab partition wall with integrated niche
The wedi Sanwell wall element XL and XXL is a high-quality prefab wall solution that allows you to create a stable, waterproof partition wall with an integrated niche in a single installation. This system is designed for fast, precise and reliable construction of shower walls, walk-in showers and bathroom partitions, with guaranteed alignment, water tightness and a clean finish.
➕ Complete prefab wall element with integrated Sanwell niche
➕ Perfectly square, stable and 100% waterproof
➕ Directly tileable or suitable for Sanwell Top finishes
➕ Available in XL (900 mm) and XXL (1200 mm) widths
Technical specifications
- Brand: wedi
- Series: Sanwell
- Type: Prefab wall element with integrated niche
- Height: 2500 mm
- Width: 900 mm (XL) or 1200 mm (XXL)
- Thickness: 100 mm
- Niche size: 300 × 600 mm
- Construction: Prefab element with integrated niche
- Finish: Directly tileable or Sanwell Top compatible
- Installation: Bonding with wedi 610 adhesive and sealing compound
- Application: Shower walls, partitions, bathrooms and wellness areas
The wedi Sanwell wall element combines speed, precision and design in one system, making it ideal for both professional installers and high-end private bathroom projects.
wedi Sanwell wall element XL & XXL – complete prefab partition wall with integrated niche

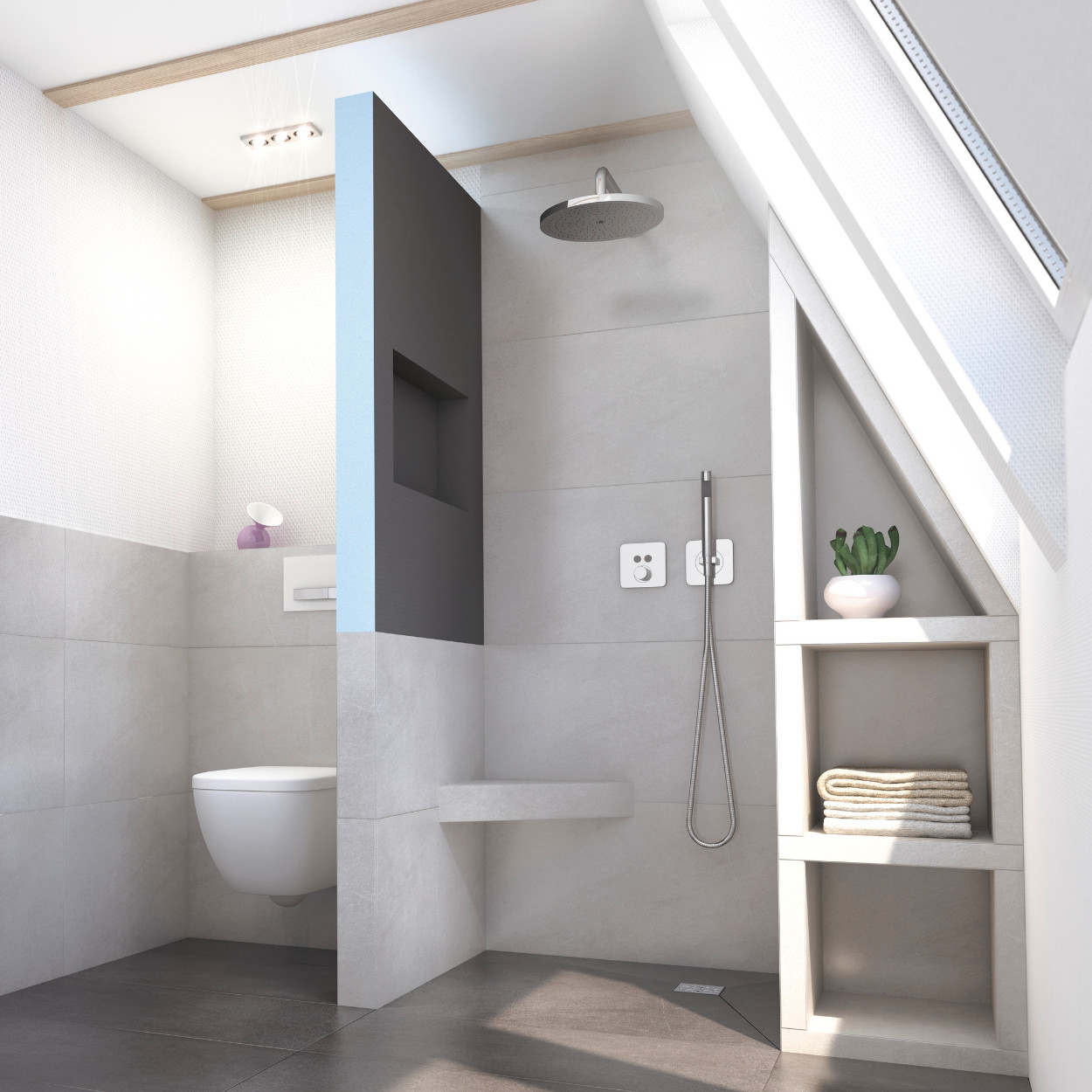

The wedi Sanwell wall element XL and XXL is a premium prefab wall system designed to create a stable, waterproof partition wall with an integrated niche in one single installation. This solution is ideal for modern bathrooms, walk-in showers and wellness areas where speed, accuracy and a flawless finish are essential.
Prefab wall element with factory-integrated Sanwell niche
The Sanwell niche is factory-integrated into the wall element and precisely positioned. This guarantees that the niche is perfectly square, correctly aligned and fully waterproof. On-site measuring, cutting and complex sealing are eliminated, reducing installation time and the risk of errors. The niche has a fixed size of 300 × 600 mm and is suitable for tiling or finishing with Sanwell Top or Sanwell Top LED surfaces.
XL and XXL versions for maximum flexibility

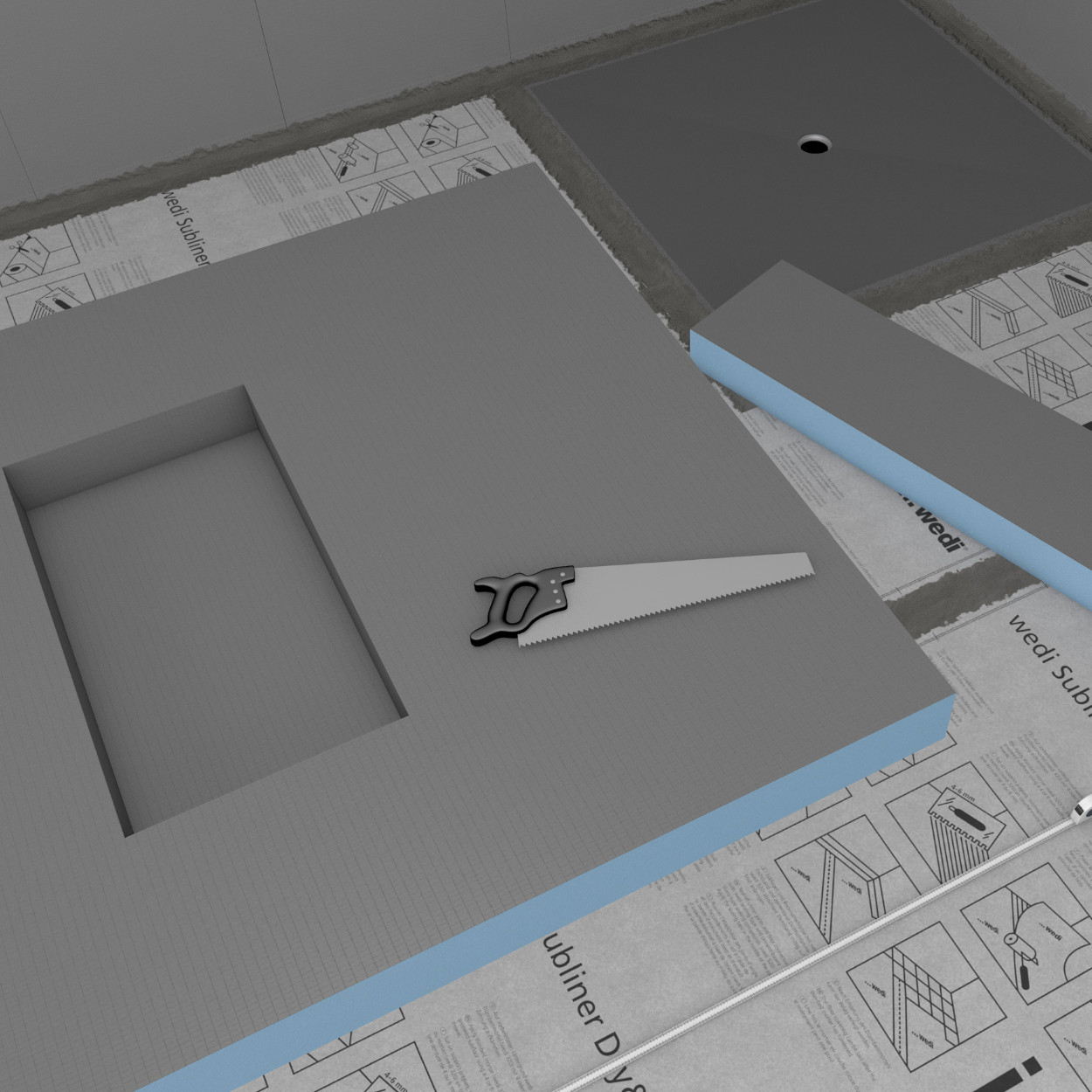

The Sanwell wall element is available in two widths. The XL version has a width of 900 mm, while the XXL version measures 1200 mm. Both versions have a fixed height of 2500 mm and a thickness of 100 mm. If required, the element can easily be cut to size to perfectly fit the space and design requirements.
Fast installation without traditional framing

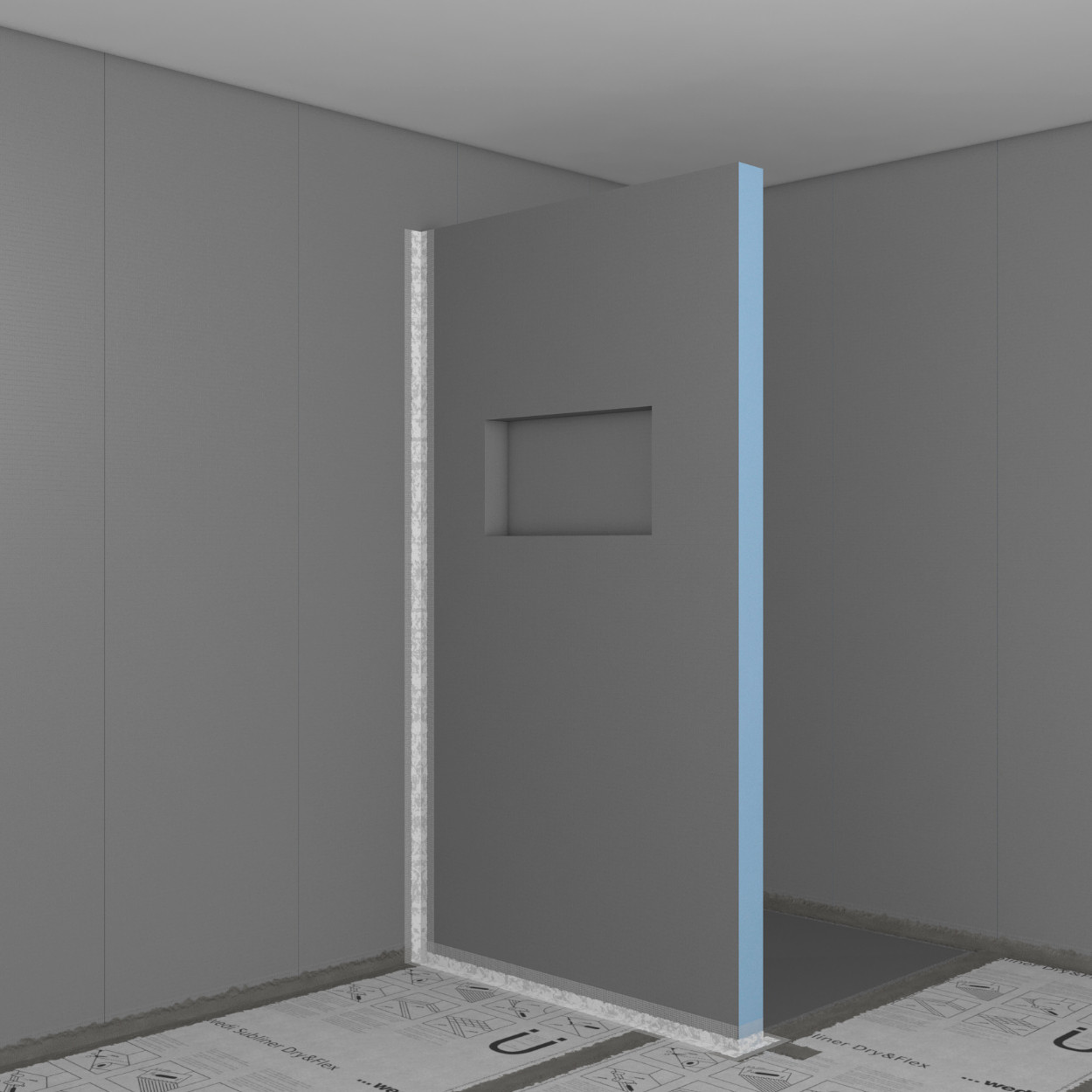

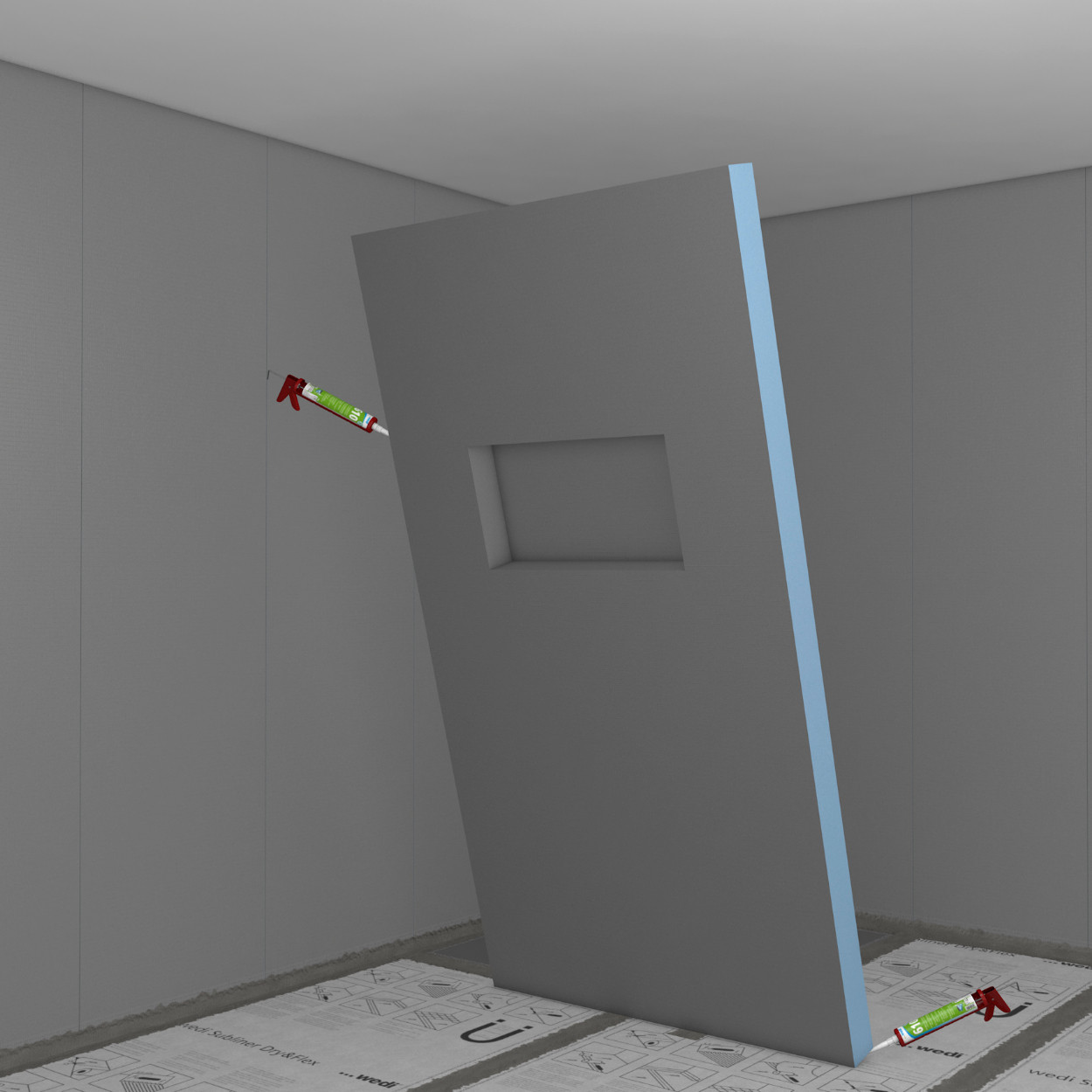

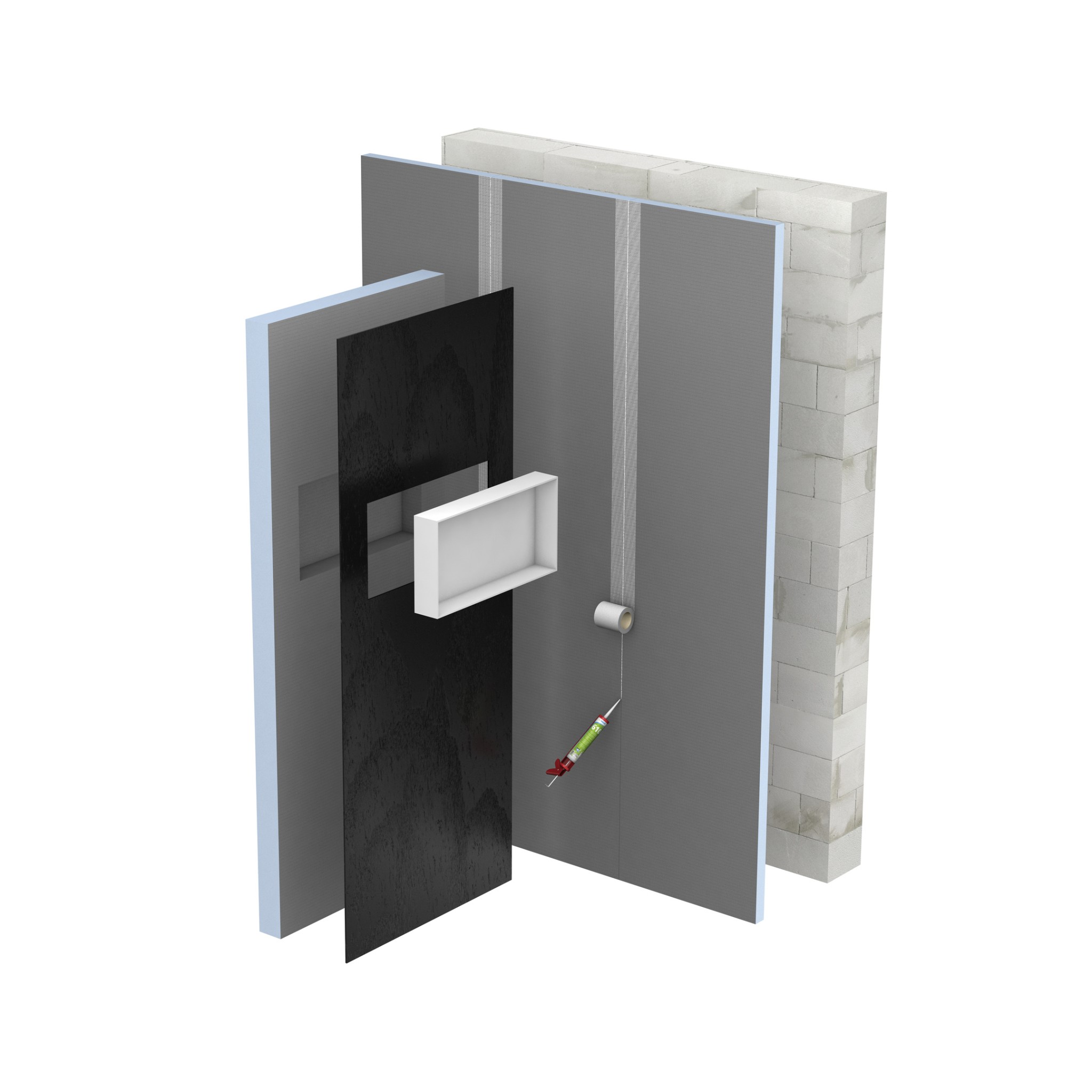

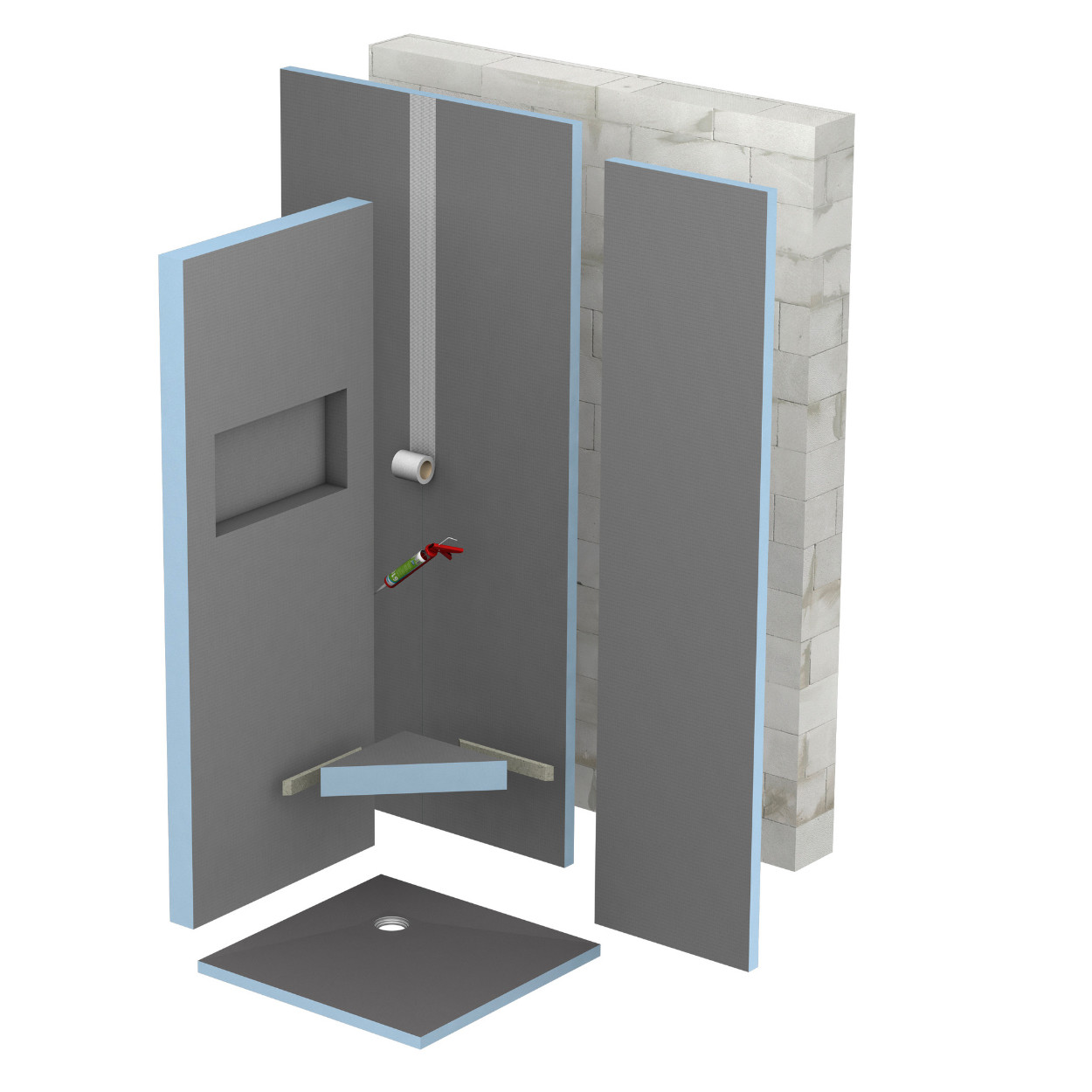

Thanks to its prefab construction, no traditional stud or frame structure is required. The wall element is installed and bonded using wedi 610 adhesive and sealing compound. The supplied building boards allow for flexible adjustment of the niche layout and wall finish. Once installed, the element is fully waterproof and ready for further finishing.
Expandable with Sanwell Top finishes and wall modules

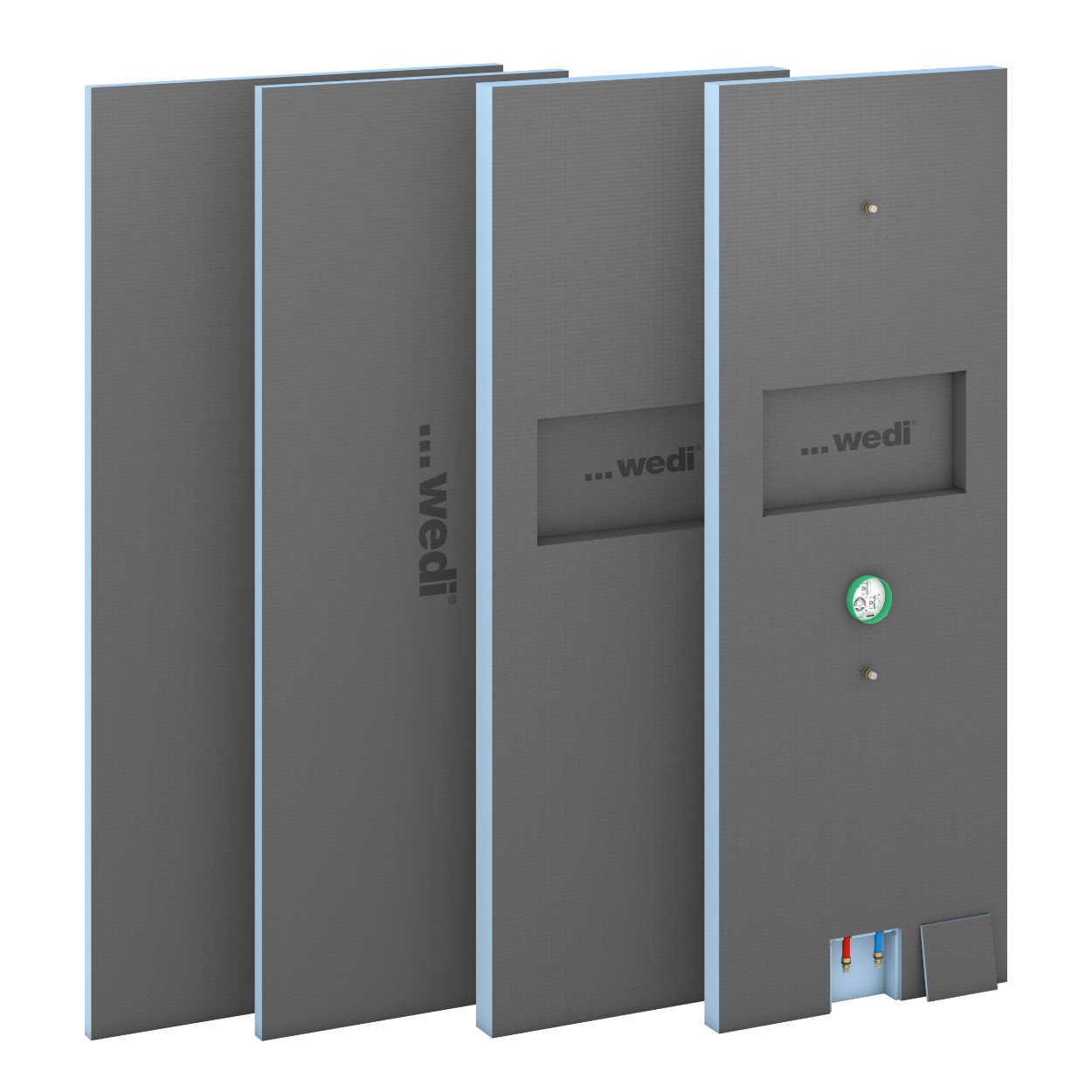

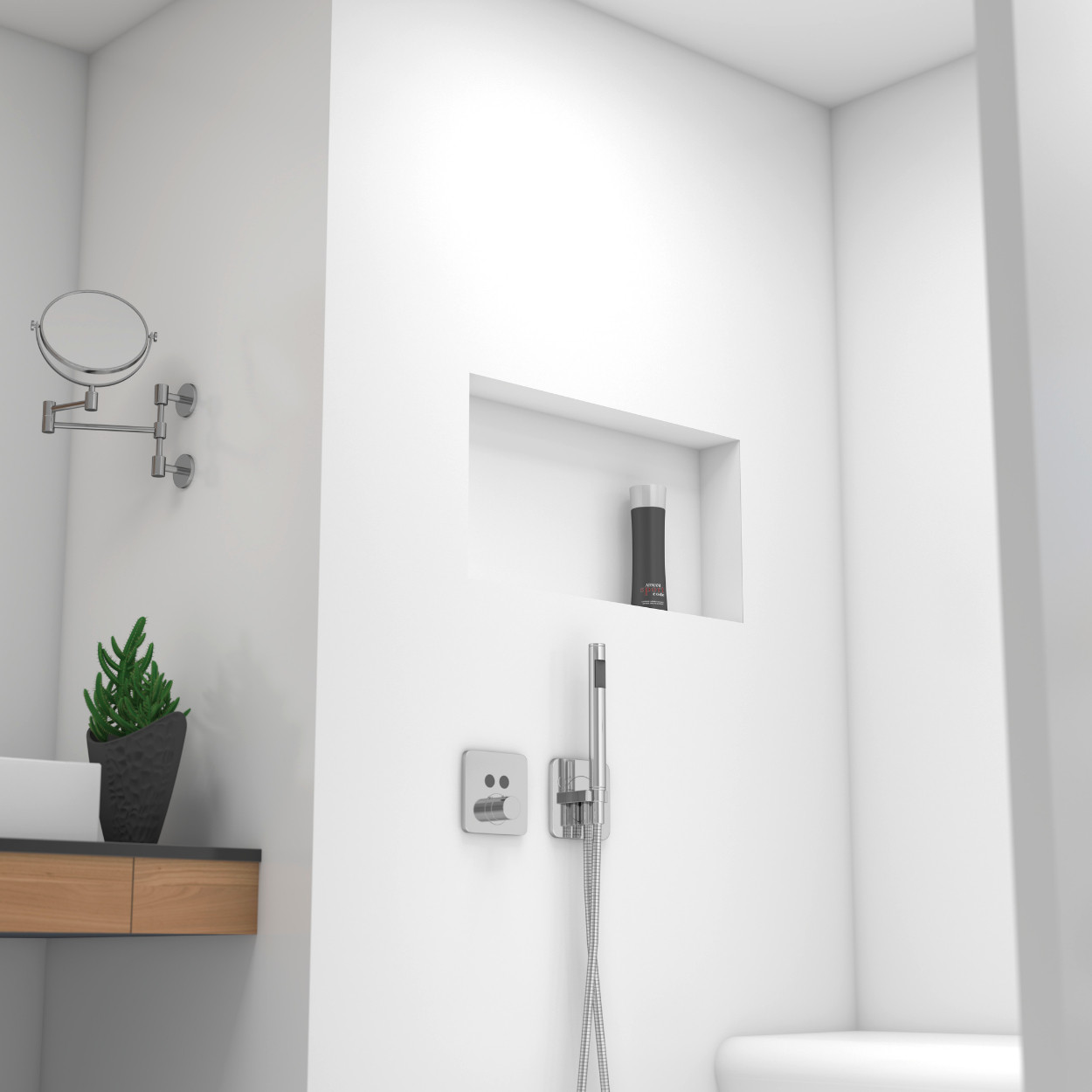

For a seamless and low-maintenance finish, the integrated niche can be completed with a wedi Sanwell Top or Sanwell Top LED. These joint-free design surfaces provide a clean alternative to tiles and integrate perfectly with the Sanwell wall element. The wedi range also includes separate Sanwell niches and complete wall modules with integrated niches.
Why choose the wedi Sanwell wall element?
- Complete prefab partition wall with integrated niche
- Perfectly square, stable and fully waterproof
- Fast installation without traditional framing

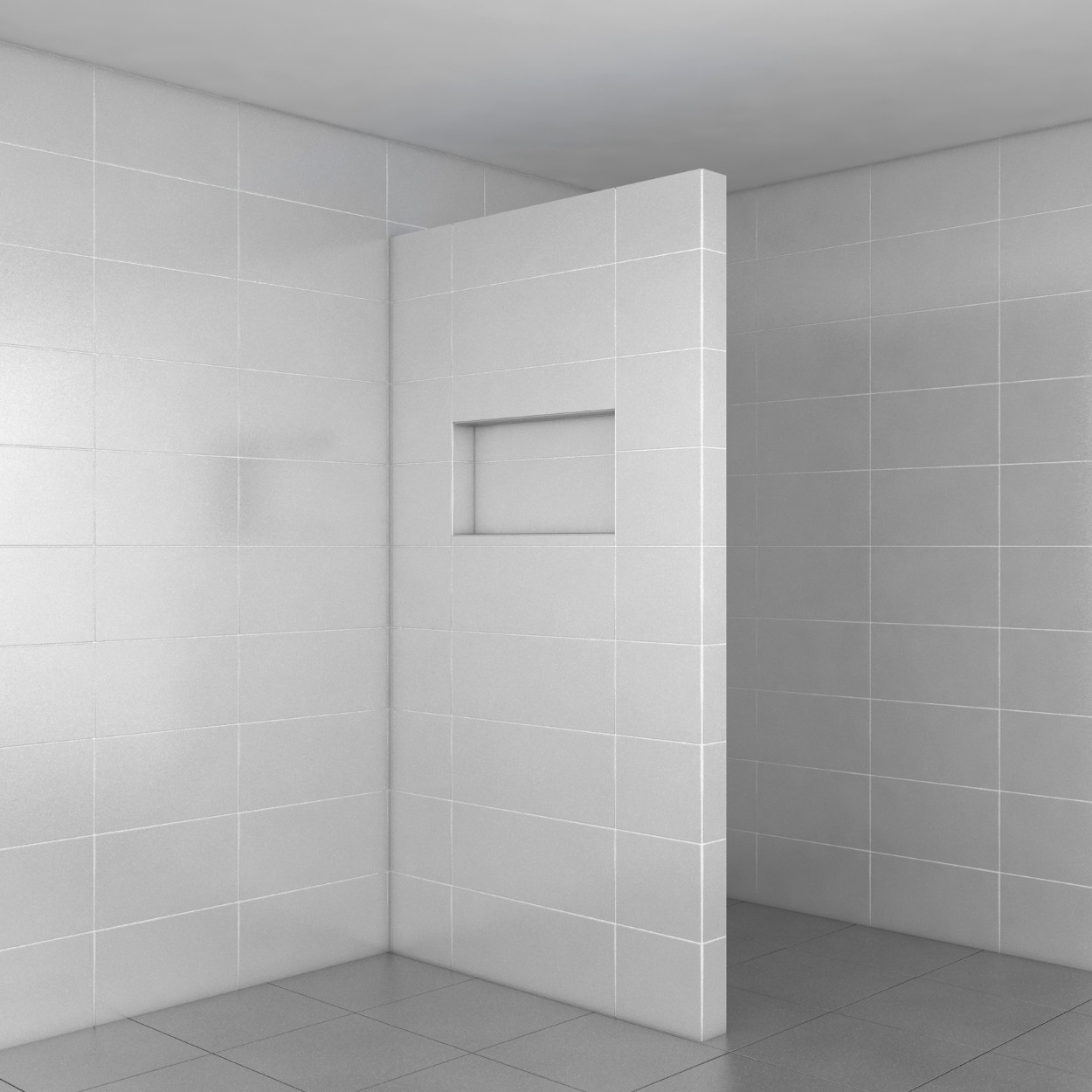

- Directly tileable or compatible with Sanwell Top finishes
- Available in XL and XXL versions
- Suitable for professional and high-end residential projects
Specifications wedi Sanwell wall element XL & XXL
| Brand | wedi |
| Series | Sanwell |
| Type | Prefab wall element with integrated niche |
| Height | 2500 mm |
| Width XL | 900 mm |
| Width XXL | 1200 mm |
| Thickness | 100 mm |
| Niche size | 300 × 600 mm |
| Material | XPS rigid foam with glass-fibre reinforcement |
| Properties | 100% waterproof, lightweight, stable, directly tileable |
| Installation | Bonding with wedi 610 and reinforcing tape |
| Application | Partition walls, walk-in showers, bathrooms and wellness areas |

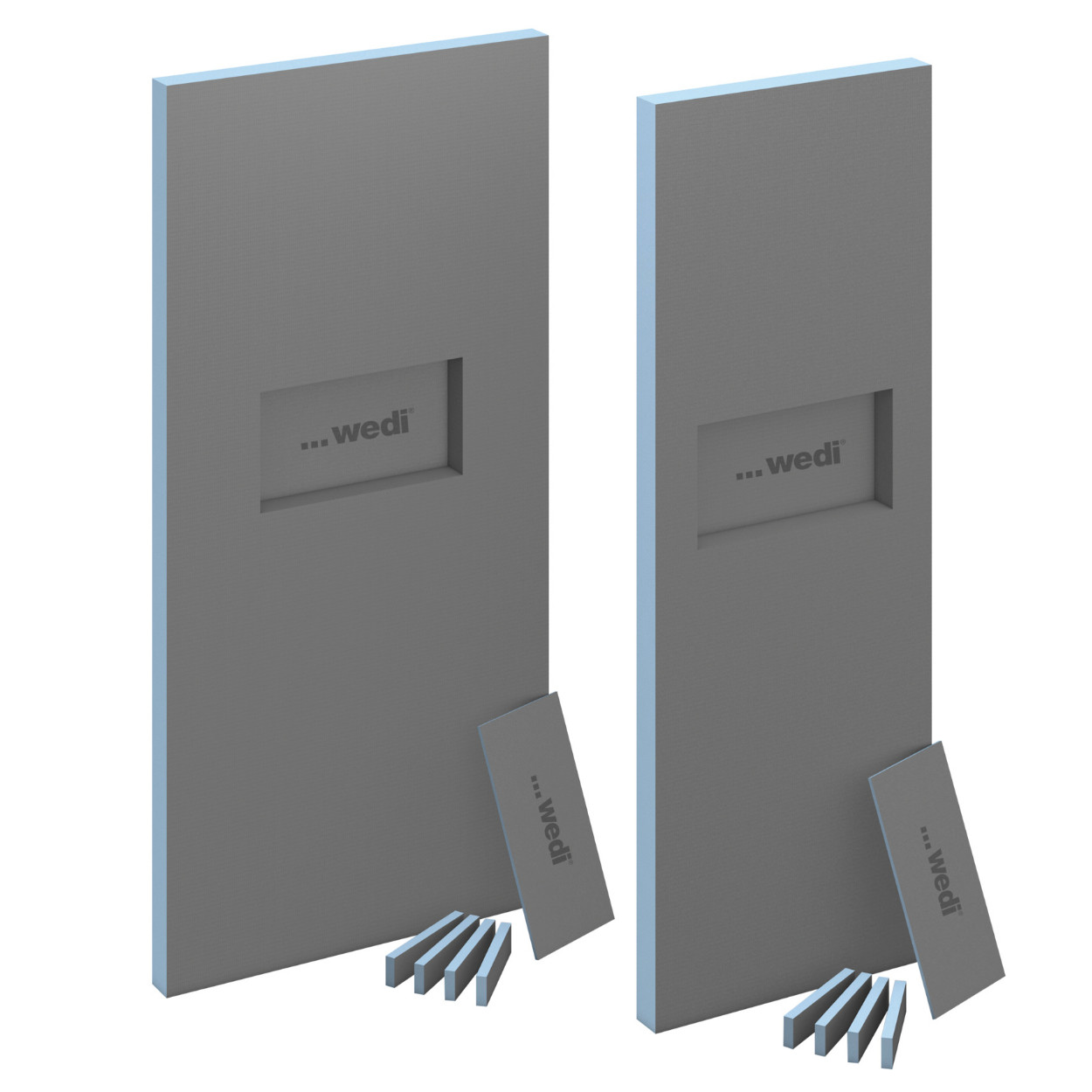

Supplied with each wall element
| Sanwell wall element | 1 × prefab wall element (XL or XXL) |
| Building board | 1 × wedi building board 330 × 630 × 10 mm |
| Building boards | 4 × wedi building board 330 × 76 × 30 mm |
Professional results in one integrated system
With the wedi Sanwell wall element XL and XXL, you achieve a complete partition wall, integrated niche and waterproof construction in a single system. The combination of prefab precision, fast installation and expandable design options makes this solution ideal for contemporary bathroom and wellness projects.
