wedi Fundo Borgo – quadrant shower tray for corner showers

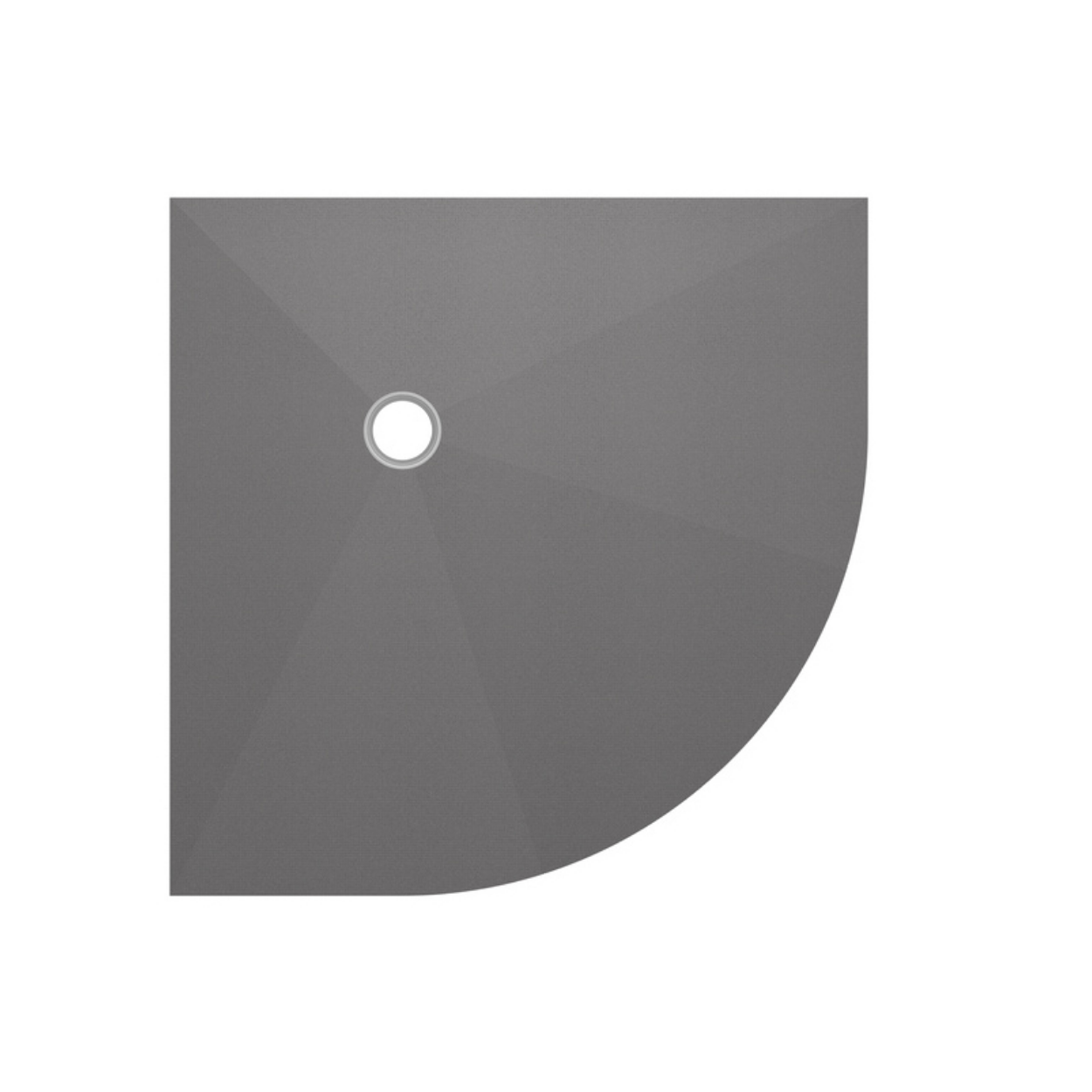

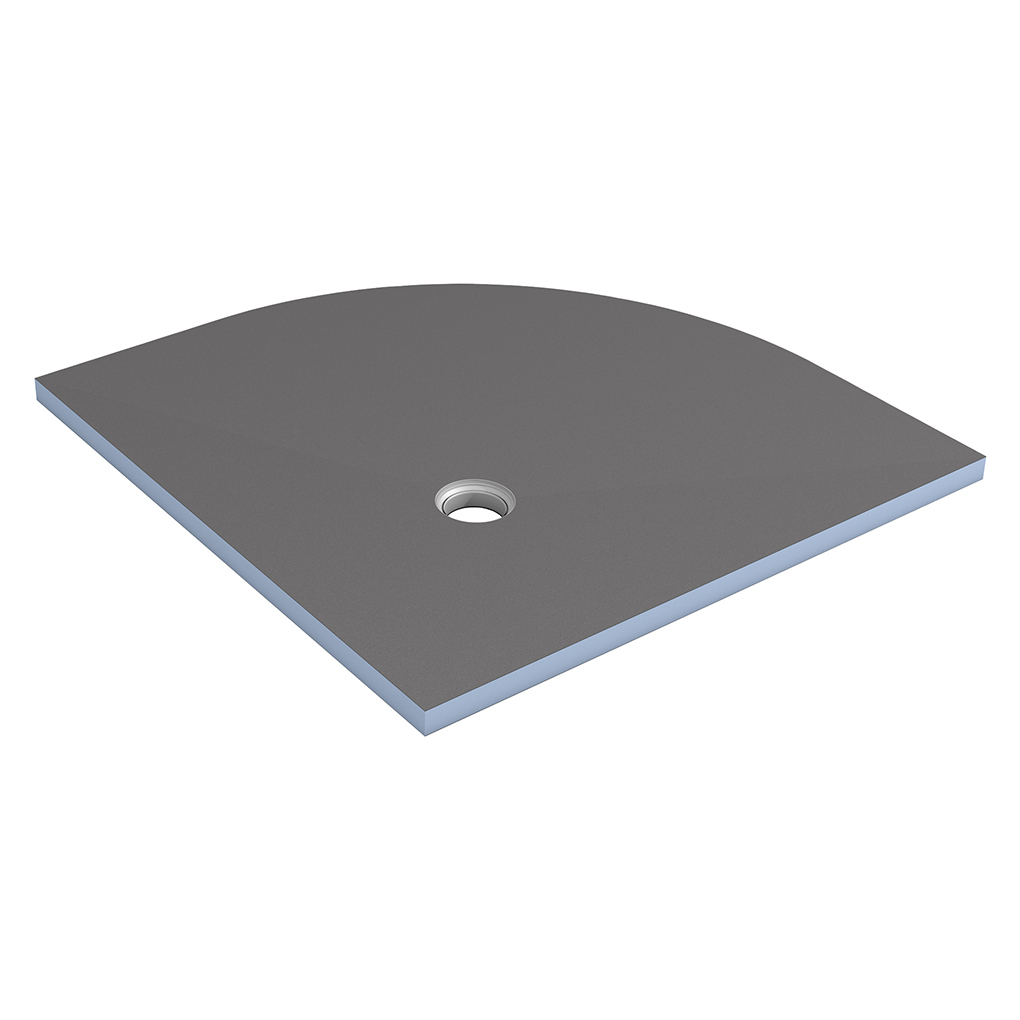

The wedi Fundo Borgo is a prefabricated quadrant walk-in shower tray, specifically designed for corner installations. Its curved shape allows you to make optimal use of available space, making it ideal for compact bathrooms without compromising on waterproofing, drainage performance or ease of installation.
➕ Quadrant shape – perfect for corner showers
➕ Available in 900 × 900 mm and 1000 × 1000 mm
➕ Prefabricated slope for reliable water drainage
➕ 100% waterproof XPS shower tray
➕ Central waste position
➕ Lightweight and easy to install
Technical specifications
- Type: Quadrant walk-in shower tray
- Sizes: 900 × 900 mm or 1000 × 1000 mm
- Thickness: 40 mm
- Waste: Point waste (ordered separately)
- Waste position: Central
- Material: XPS foam with fibre-reinforced cementitious mortar coating
- Supplied with pre-formed slope: Yes
Space-saving solution with proven wedi reliability
The wedi Fundo Borgo combines a smart, space-saving design with the technical reliability of the wedi system. Combine it with a wedi waste, sealing systems and optionally wedi Fundo Top to create a durable, fully waterproof and neatly finished corner shower.
wedi Fundo Borgo – the quadrant shower tray for corner installations
The wedi Fundo Borgo is a prefabricated quadrant walk-in shower tray developed specifically for corner installations. Its rounded shape makes it ideal for compact bathrooms or layouts where efficient use of space is essential. Like all wedi Fundo shower trays, the Borgo features a pre-formed slope and a fully waterproof XPS core.
Designed for corner showers and compact bathrooms

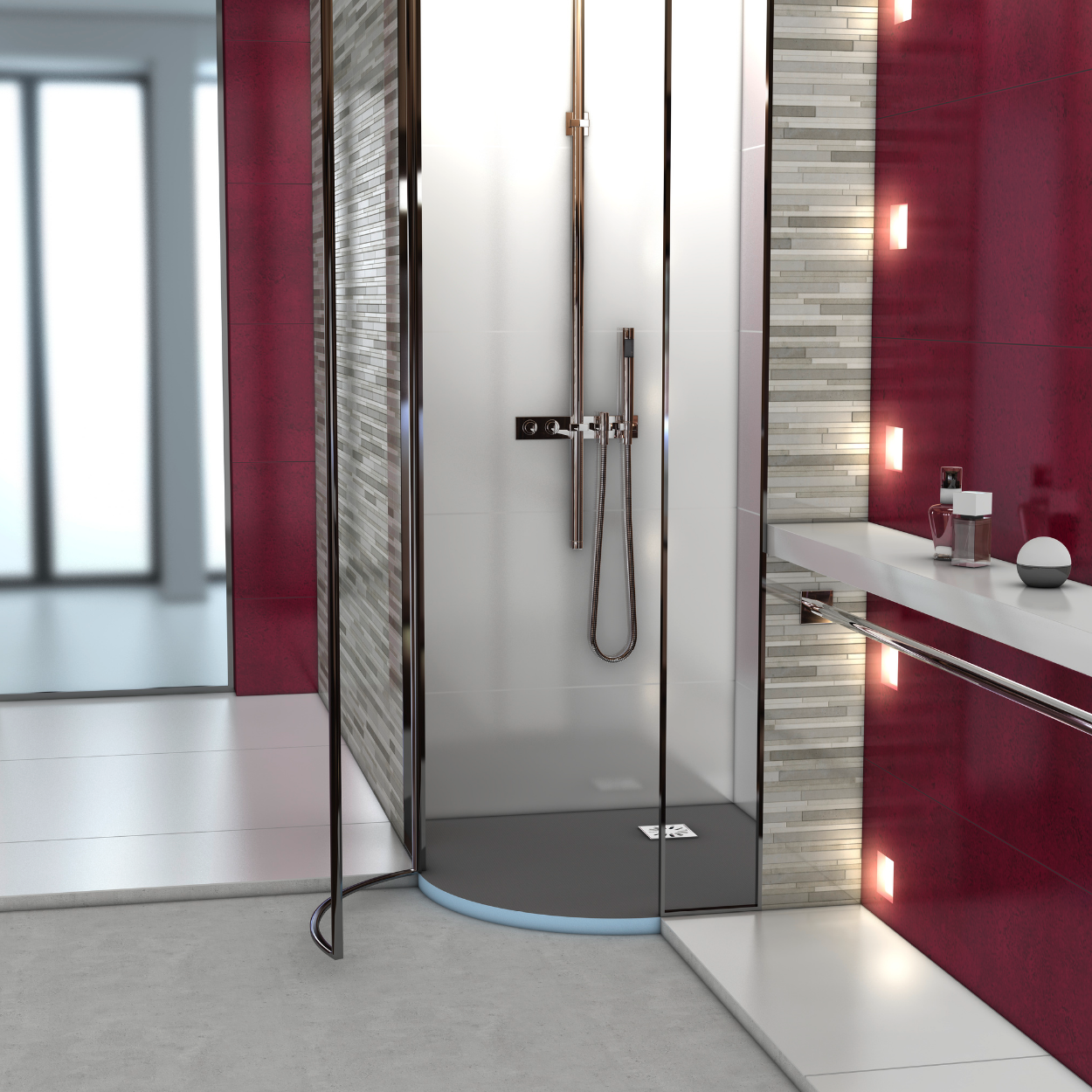

Not every bathroom has space for a large rectangular shower tray. The Fundo Borgo provides a smart solution for corner installations while maintaining comfort, safety and performance. Its quadrant shape integrates perfectly with curved and semi-circular shower enclosures.
- Quadrant shape for corner showers
- Space-saving design
- Perfect match for curved and semi-circular enclosures
- Suitable for renovation and new-build projects
Prefabricated slope and 100% waterproof base
The Fundo Borgo features a factory-formed slope that reliably directs water towards the centrally positioned waste outlet. The core is made from closed-cell extruded polystyrene (XPS), providing a fully waterproof base that does not absorb moisture. The surface is finished with a robust, fibre-reinforced mortar layer and is ready for tiling immediately.
Flexible waste selection
The wedi Fundo Borgo is supplied without a fixed waste, allowing you to choose the most suitable wedi waste for your installation. In most applications, a DN-50 waste is used, either horizontal or vertical. Where installation height is limited, a DN-40 waste can also be applied. The waste position is centrally located for even water drainage.
- Waste not included – ordered separately
- Suitable for DN-50 horizontal or vertical wastes
- DN-40 possible where build-up height is limited
- Central waste position
Quick and easy installation
Thanks to its lightweight construction and prefabricated design, the Fundo Borgo is easy to handle and install. The tray can be adjusted on site if required while maintaining its geometry and slope. Combined with wedi sealing systems, it creates a durable and fully waterproof corner shower.
- Prefabricated shower tray – no wet screed required
- Ready for tiling immediately
- Suitable for residential and professional applications
- Fully compatible with wedi building boards and wall systems
Design freedom with waste covers and wedi Fundo Top
For the visible finish, the Fundo Borgo can be combined with a range of wedi waste covers. It is also compatible with wedi Fundo Top, a ready-made seamless surface that replaces tiles and provides a modern, low-maintenance finish without grout joints.
Specifications
| Manufacturer | wedi |
| Product name | wedi Fundo Borgo |
| Type | Quadrant walk-in shower tray |
| Sizes | 900 × 900 mm or 1000 × 1000 mm |
| Thickness | 40 mm |
| Waste | Not included – ordered separately |
| Waste position | Central |
| Required waste | DN-50 (horizontal or vertical), DN-40 possible |
| Material | XPS foam with cementitious mortar coating |
| Pre-formed slope | Yes |
| Waterproof | Yes – 100% |
| Application | Corner showers and wet rooms |
A detailed technical drawing of the wedi Fundo Borgo shower tray is available on request.
Part of the complete wedi system
The wedi Fundo Borgo forms part of the complete wedi system, including wedi building boards, wedi Tools, sealing systems, wastes and wedi Fundo Top. This allows you to create a fully waterproof bathroom solution, even in compact corner layouts.
