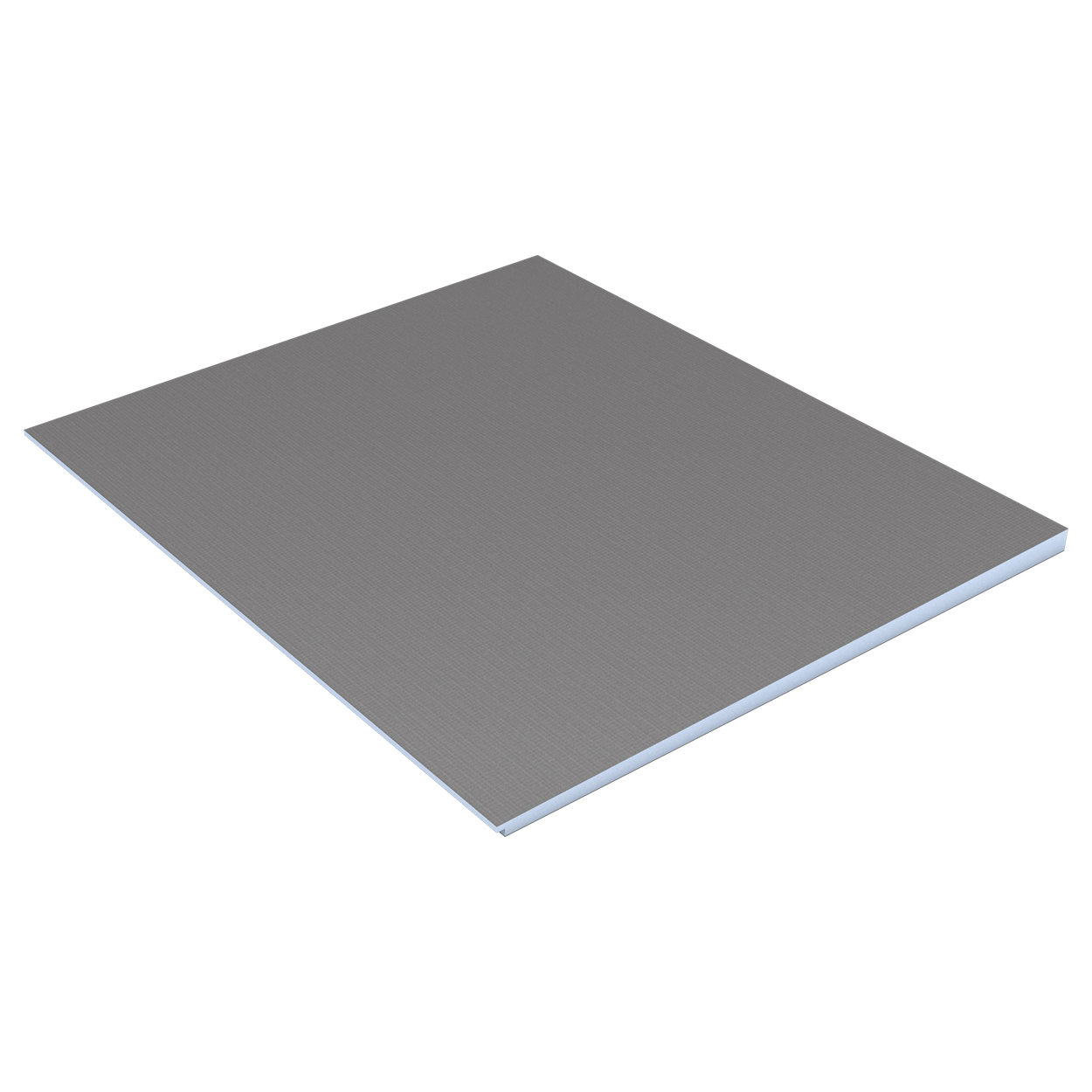

wedi Fundo Flex Sloping Panel with Rebate – flexible sloping solution for linear drains
✔️ Free drain positioning ✔️ Low installation height ✔️ Clean, modern design ✔️ 100% waterproof ✔️ Suitable for timber and concrete floors
The wedi Fundo Flex sloping panel with rebate is part of the modular Fundo Flex system and forms the basis for a modern walk-in shower with a linear drain. This sloping panel offers maximum flexibility when determining the drain position and can easily be adapted to almost any bathroom layout. Thanks to its low installation height and waterproof XPS construction, this element is suitable for both new builds and renovation projects.
When do you use this sloping panel?
This sloping panel is available in different thicknesses and is used in combination with the wedi Fundo Flex channel element. The version with rebate is designed for installation on top of the floor structure, where the rebate ensures a clean and secure connection to the channel element. Use the sloping panel without rebate when the panel is integrated into the floor structure.
The wedi Fundo Flex sloping panel with rebate
Brand: wedi
System: Fundo Flex
Type: Sloping panel with rebate – for installation on top of the floor structure
(Use the sloping panel without rebate when installing within the floor structure)
Size option 1: 1,040 × 1,200 × 38 mm (L × W × T)
Size option 2: 1,040 × 1,600 × 38 mm (L × W × T)
Size option 3: 1,640 × 1,200 × 47 mm (L × W × T)
Minimum panel thickness: approx. 10 mm
Unique feature: Complete freedom in determining the drain position
Completing the wedi Fundo Flex system
wedi Fundo Flex channel element (required)
wedi Fundo Wave drain DN 50 or DN 40 (required)
wedi Fundo linear drain 1.0 stainless steel (required)
wedi medium-bed adhesive mortar (required)
wedi support element for Wave drain (optional)
Additional wedi Fundo Flex sloping panels (optional, depending on the situation)
wedi sealing set and slope profiles (optional)
wedi Fundo Flex – a flexible system solution for shower floors with linear drains
The wedi Fundo Flex is a modular shower floor system that offers maximum design freedom for walk-in showers with a linear drain. Unlike standard shower floors with a fixed drain position, the Fundo Flex allows the drain to be positioned exactly where the design or existing installation requires it. This makes the system particularly suitable for renovations, bespoke solutions and bathrooms with limited installation height.
Maximum freedom in drain positioning
With many shower floors, the drain position is predetermined, which can result in unwanted adjustments to the floor structure or pipework. The wedi Fundo Flex removes this limitation. Thanks to its modular design, the drain can be positioned freely: directly against the wall, at a distance from the wall, or even centrally within the shower area. This allows the system to integrate perfectly with modern bathroom designs and technical constraints.
Free positioning of the linear drain
Ideal for renovations and bespoke bathroom projects
Suitable for both timber and concrete floor constructions
Low installation height possible
wedi Fundo Flex sloping panel with rebate
The wedi Fundo Flex sloping panel with rebate forms the basis for correct and reliable water drainage towards the channel element. This version is designed for installation on top of the floor construction. The rebate ensures a precise and watertight connection to the Fundo Flex channel element. For installation within the floor construction, a sloping panel without rebate is available.
Sloping panel with rebate for installation on the floor structure
Prefabricated slope for reliable water drainage
Can be cut to size while maintaining the slope
Part of the complete Fundo Flex system
100% waterproof system – part of the wedi system
Like all wedi Fundo solutions, the Fundo Flex is constructed from the well-known XPS core with a closed-cell structure. This material is completely waterproof and does not absorb moisture. When combined with wedi sealing systems, it creates a safe, durable and standards-compliant shower solution without wet construction processes or long drying times.
Components required for a complete Fundo Flex shower solution
The Fundo Flex is a modular system and is assembled from multiple components. Depending on the application, the following parts are required:
wedi Fundo Flex channel element (required)
wedi Fundo Flex sloping panel with rebate (this product)
wedi Wave drain DN 50 or DN 40 (required)
wedi Fundo shower channel 1.0 stainless steel (required)
wedi medium-bed mortar for bonding (required)
wedi sealing set and slope profiles (optional)
wedi support element for Wave drain (optional)
Specifications
Manufacturer
wedi
Product name
wedi Fundo Flex sloping panel with rebate
System
wedi Fundo Flex
Type
Sloping panel for shower floors with linear drain
Application
Installation on top of the floor construction
Material
XPS rigid foam with mortar coating
Minimum thickness
approx. 10 mm
Available dimensions
1,040 × 1,200 × 38 mm
1,040 × 1,600 × 38 mm
1,640 × 1,200 × 47 mm
Pre-sloped
Yes
Waterproof
Yes – part of the wedi system
A detailed technical drawing of the wedi Fundo Flex sloping panel is available on request.
Part of the complete wedi system
The wedi Fundo Flex sloping panel with rebate, together with the channel element, Wave drain, sealing systems and optionally wedi Fundo Top, forms a complete, flexible and technically reliable building system for modern, fully waterproof walk-in showers.
What is the wedi Fundo Flex?
The wedi Fundo Flex is a modular shower floor system that offers maximum freedom when positioning the shower drain. Unlike standard shower trays with a fixed drain location, the Fundo Flex allows you to determine the drain position yourself. This makes the system particularly suitable for renovations, bespoke solutions and bathrooms with complex floor constructions.
Why choose the Fundo Flex instead of a standard Fundo shower tray?
With standard Fundo shower trays, the drain position is fixed. The wedi Fundo Flex removes this limitation by allowing free positioning of the shower channel. This means existing pipework or floor joists do not need to be altered, and the bathroom design can remain the leading factor. The result is greater technical flexibility and design freedom.
Can the wedi Fundo Flex be used on timber floors?
Yes, the wedi Fundo Flex is suitable for both timber and concrete floor constructions. Thanks to its lightweight, waterproof XPS material and low system build-up height, it is particularly well suited for timber joist floors and renovation projects where structural load and installation height are critical factors.
What is the installation height of the wedi Fundo Flex?
The installation height of the Fundo Flex system is low and depends on the selected components and installation situation. Factors such as the type of slope panels, the chosen Wave drain (DN-40 or DN-50) and the use of a support element all play a role. This flexibility allows the system to be used even where installation height is limited.
Which components are required for a complete Fundo Flex installation?
The wedi Fundo Flex is a modular system consisting of several components. Depending on the installation requirements, the following elements are needed:
wedi Fundo Flex channel element – forms the basis for free positioning of the shower channel
wedi Fundo Flex slope panels – provide a correct and reliable slope towards the drain
wedi Fundo Flex stainless steel shower channel 1.0 – cut-to-length design channel for flexible placement
wedi Wave drain DN-50 or DN-40 – low-maintenance drain with integrated trap
wedi support element for the Wave drain – ensures stable and precise installation without using cement
wedi medium-bed mortar – for bonding the system components
wedi sealing set and slope profiles (optional)
What is the advantage of the wedi support element for the Wave drain?
The wedi support element ensures stable and accurate positioning of the Wave drain. This eliminates the need to build up the drain with cement or mortar, making installation faster and more straightforward. The support element increases installation reliability and contributes to a technically sound and durable drainage solution.
How does the wedi Fundo Flex differ from other walk-in shower systems?
The unique combination of freely positionable drainage, low installation height and a fully waterproof, tested system sets the Fundo Flex apart. It offers maximum design freedom without compromising on technical reliability or waterproofing performance.
Should the wedi Fundo Flex be combined with wedi building boards?
Combining the Fundo Flex with wedi building boards is not mandatory, but it is highly recommended. Wedi building boards provide a stable, waterproof and well-insulated substrate and allow a complete, integrated wedi system to be used throughout the entire shower area.
Is the wedi Fundo Flex easy to maintain?
Yes, the shower channel features a removable cover with an integrated hair catcher, making cleaning easy. The Wave drain is designed for optimal flow performance and ease of maintenance and includes an integrated odour trap.
For which situations is the wedi Fundo Flex most suitable?
The Fundo Flex is ideal for:
Renovation projects where existing pipework or floor joists cannot be relocated
Bathrooms with limited installation height
Designs featuring long or freely positioned shower channels
Timber and concrete floors requiring a lightweight, waterproof solution
Where can I get advice on the wedi Fundo Flex?
Each Fundo Flex product page lists the compatible accessories and system components. If you need advice on the correct system build-up for your project, our specialists are happy to assist you.
Discover the wedi Fundo Flex system through our short product videos. Learn more about the Wave Drain, Shower Channel, Sloping Board, Channel Element and other key components for a fast, reliable and waterproof walk-in shower installation.
