wedi Fundo Primo – flexible walk-in shower tray with free waste selection
The wedi Fundo Primo is a versatile walk-in shower tray designed for projects where maximum flexibility is required. The tray is supplied with a factory-formed slope but allows you to choose the waste solution yourself – horizontal or vertical, central or offset. Thanks to its wide range of available sizes, the Fundo Primo can be used in almost any bathroom, from compact layouts to spacious walk-in showers.
➕ Available in a wide range of sizes (80 × 80 up to 200 × 100 cm)
➕ Free choice of waste: horizontal or vertical
➕ Suitable for central or offset waste positions
➕ Prefabricated slope for reliable drainage
➕ 100% waterproof XPS shower tray
➕ Can be extended with slope boards for optimal floor drainage
Technical specifications
- Type: Walk-in shower tray with flexible waste configuration
- Thickness: 40 mm
- Waste: To be ordered separately (DN50 or DN40)
- Waste position: Central or offset
- Material: XPS rigid foam with fibre-reinforced mortar coating
- Supplied with slope: Yes
Maximum freedom in design and installation
The wedi Fundo Primo is ideal when you want full control over the waste layout and maximum flexibility in size and installation. Combine the tray with a wedi waste, sealing systems and optionally wedi Fundo Top to create a safe, waterproof and cleanly finished walk-in shower.
wedi Fundo Primo – the flexible walk-in shower tray with free waste selection
The wedi Fundo Primo is a prefabricated walk-in shower tray with an integrated slope, offering complete freedom in waste selection. By choosing your own horizontal or vertical wedi waste, the tray can be perfectly adapted to the site conditions and pipe layout. As part of the complete wedi system, the Fundo Primo provides a reliable, waterproof and tile-ready base for a wide range of bathroom designs.
Freedom in size and waste positioning

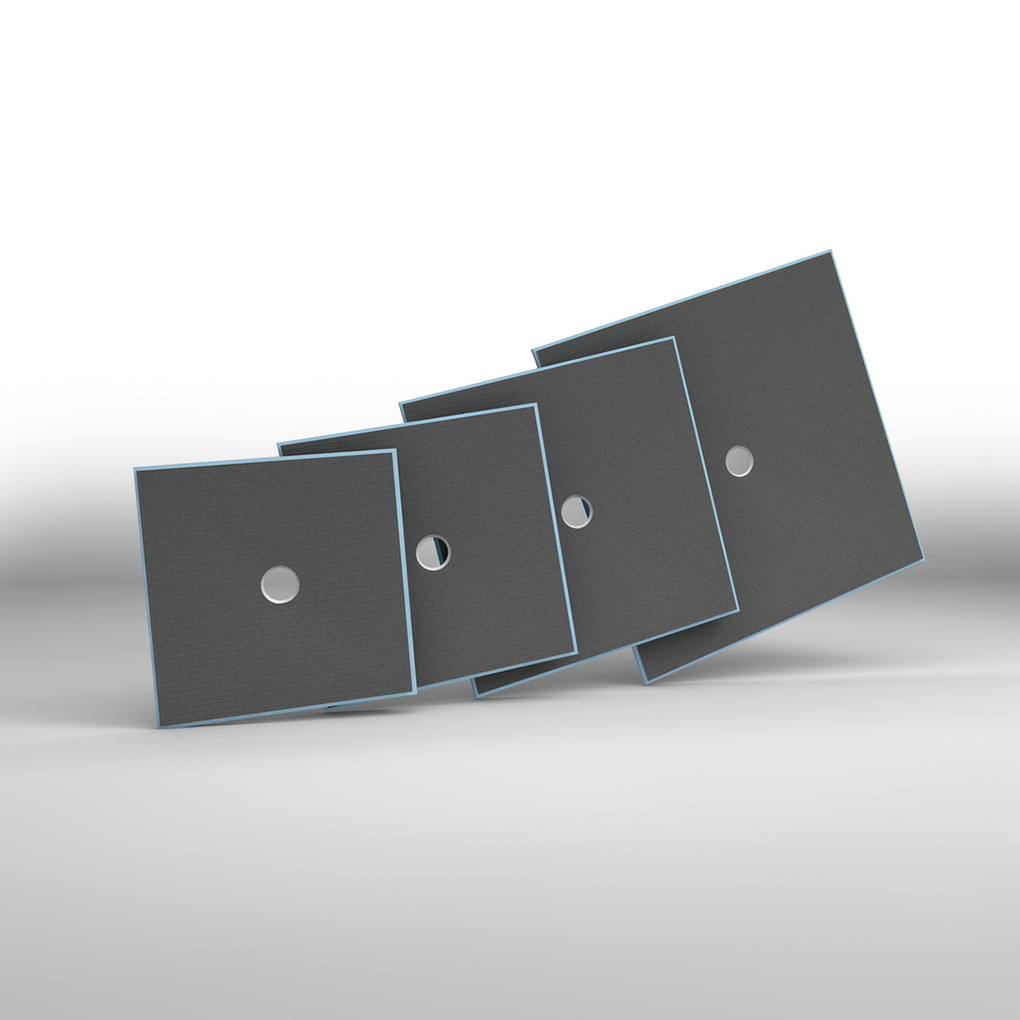

Every bathroom is different. That is why the wedi Fundo Primo is available in a very wide range of sizes, from compact shower layouts to extra-large walk-in showers. In total, more than 20 size variations are available, in both square and rectangular formats. The waste can be positioned centrally or offset, depending on the chosen waste and installation requirements.
- Available in many sizes from 80 × 80 to 200 × 100 cm
- More than 20 size variations available
- Free choice of central or offset waste position
- Suitable for a wide range of bathroom layouts
Prefabricated slope and 100% waterproof base

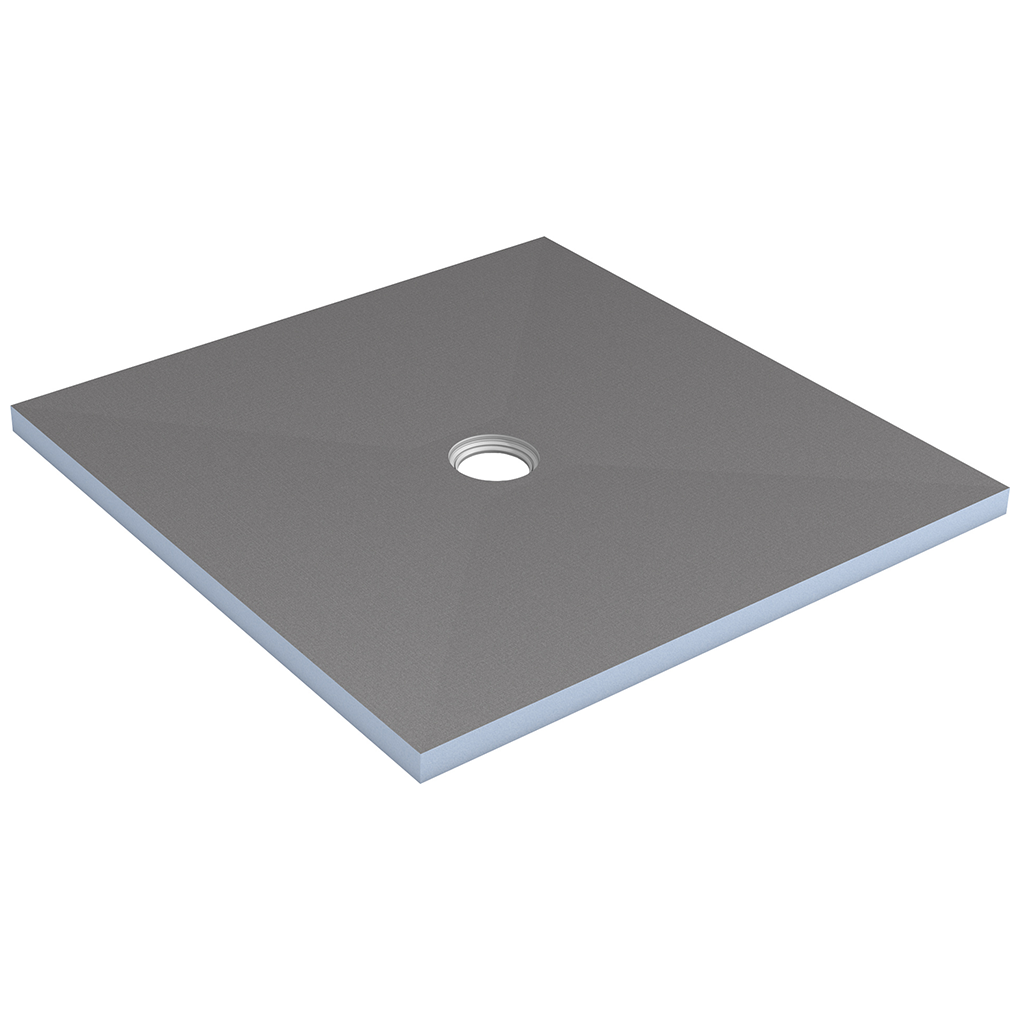

Like all wedi Fundo shower trays, the Primo features a factory-formed slope that ensures reliable water drainage towards the waste. The core is made from extruded polystyrene (XPS) with a closed-cell structure, creating a fully waterproof base that does not absorb moisture. The surface is finished with a robust, fibre-reinforced mortar layer and is ready for tiling immediately.
Waste selected separately – horizontal or vertical

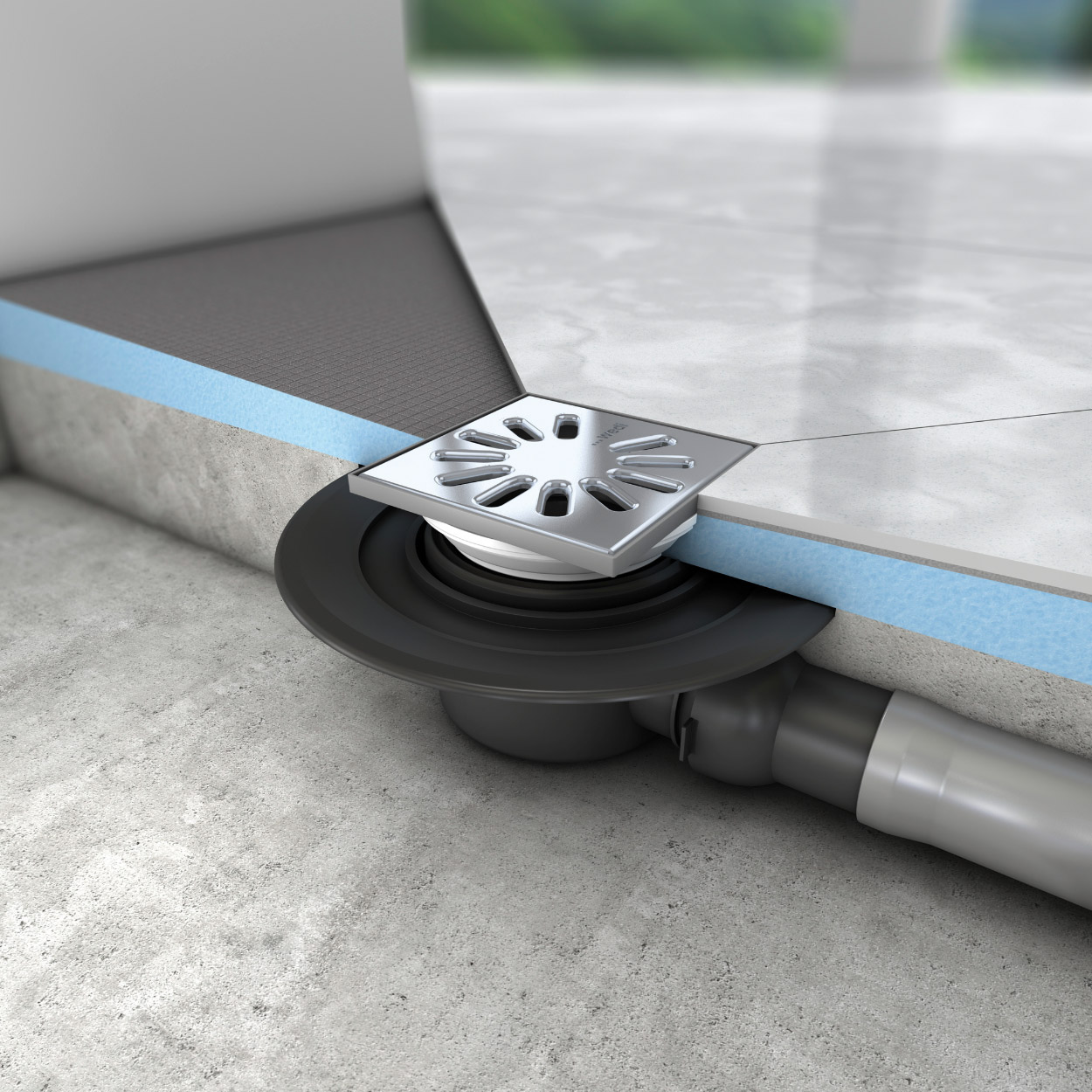

The wedi Fundo Primo is supplied without a fixed waste, giving you full freedom to select the most suitable wedi waste solution. In most installations, a DN50 waste is used, either horizontal or vertical. Where installation height is limited, a DN40 waste can also be applied. Both round and square waste covers are available, depending on the selected waste.
- Waste not included – to be ordered separately
- Suitable for DN50 waste (horizontal or vertical)
- DN40 possible where installation height is limited
- Compatible with a wide range of waste covers
Extendable with slope boards for floor drainage

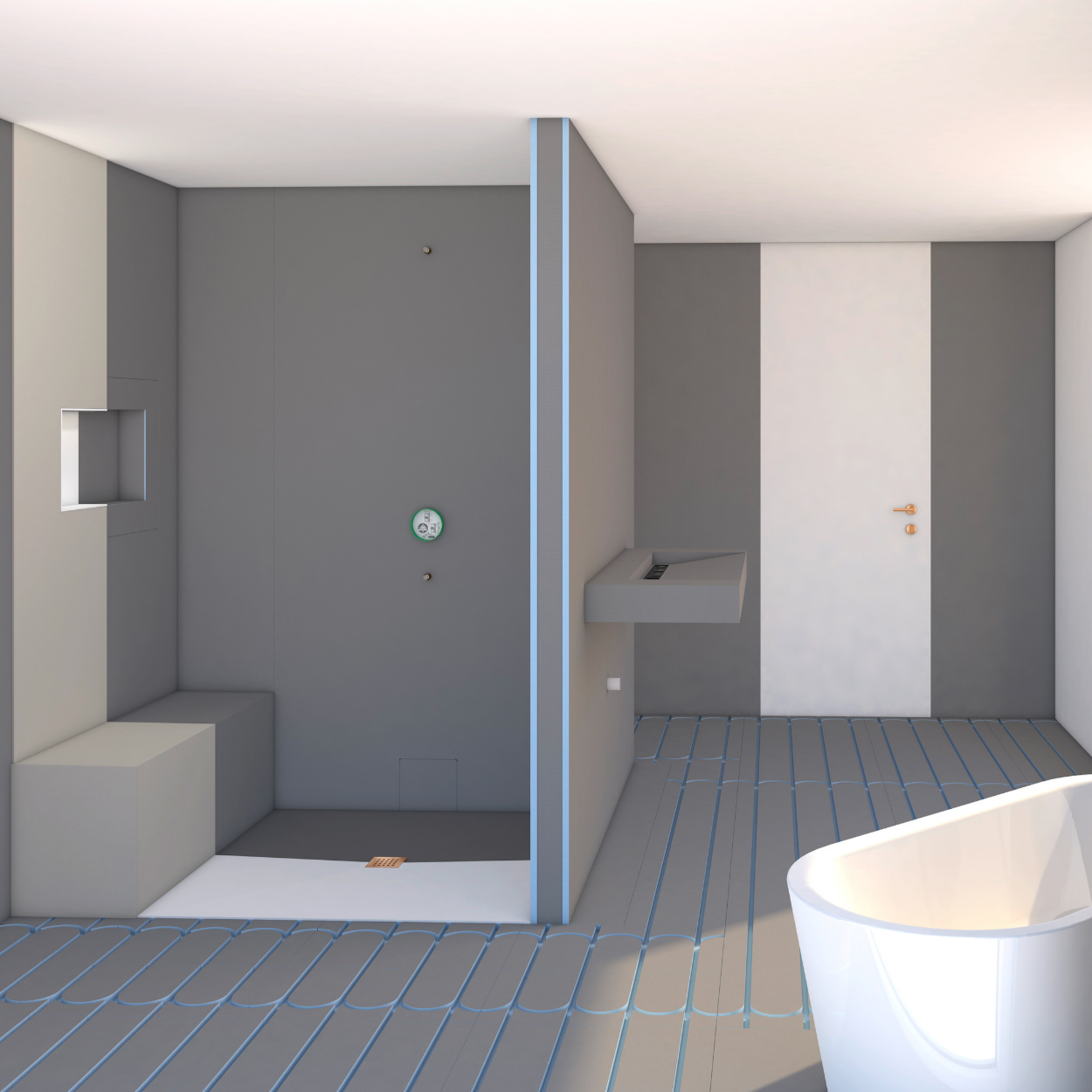

A key advantage of the Fundo Primo is the option to extend the shower tray with matching wedi slope boards. This allows the surrounding bathroom floor to be integrated into the slope towards the shower area, creating optimal water management and a clean, threshold-free finish.
Fast installation for renovation and new builds

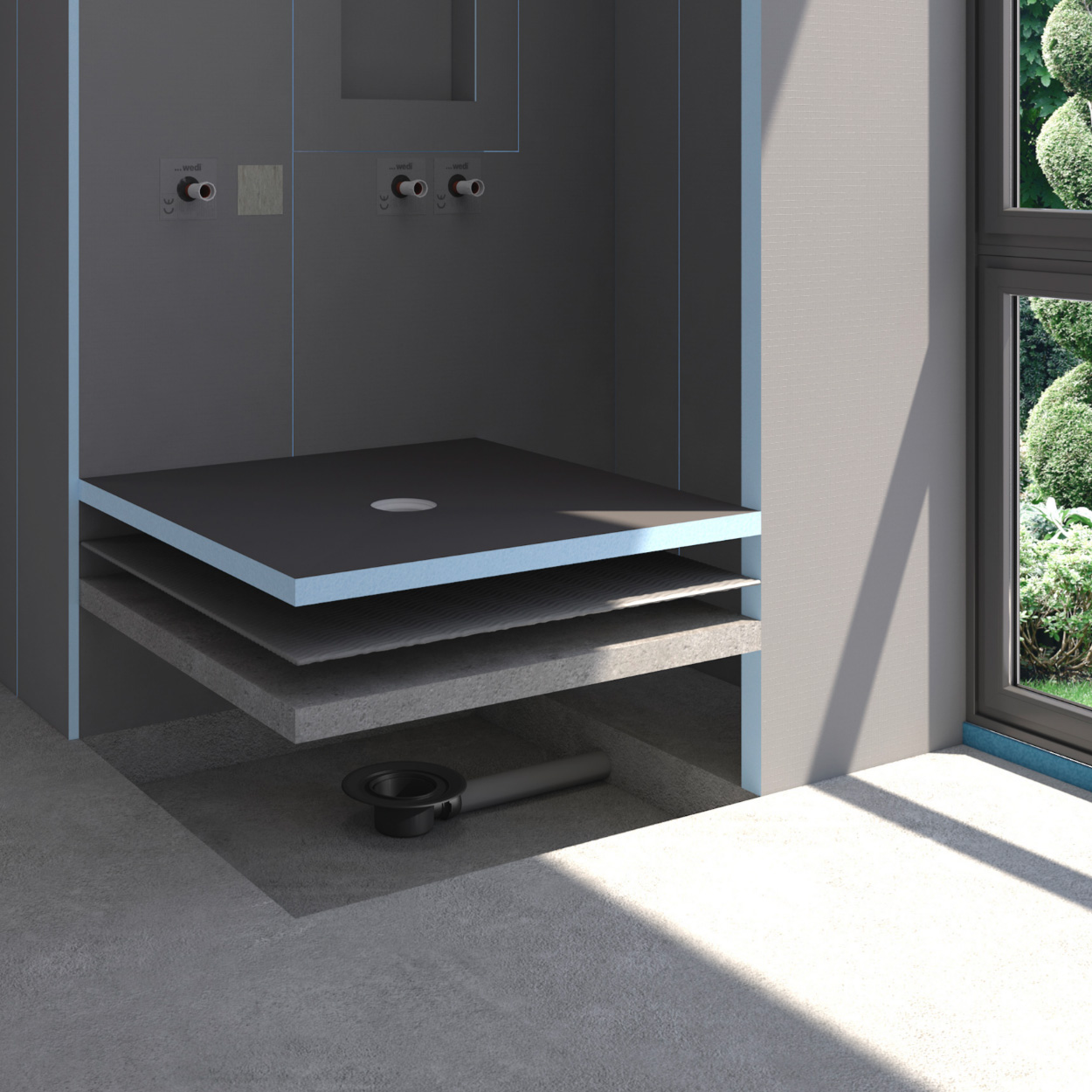

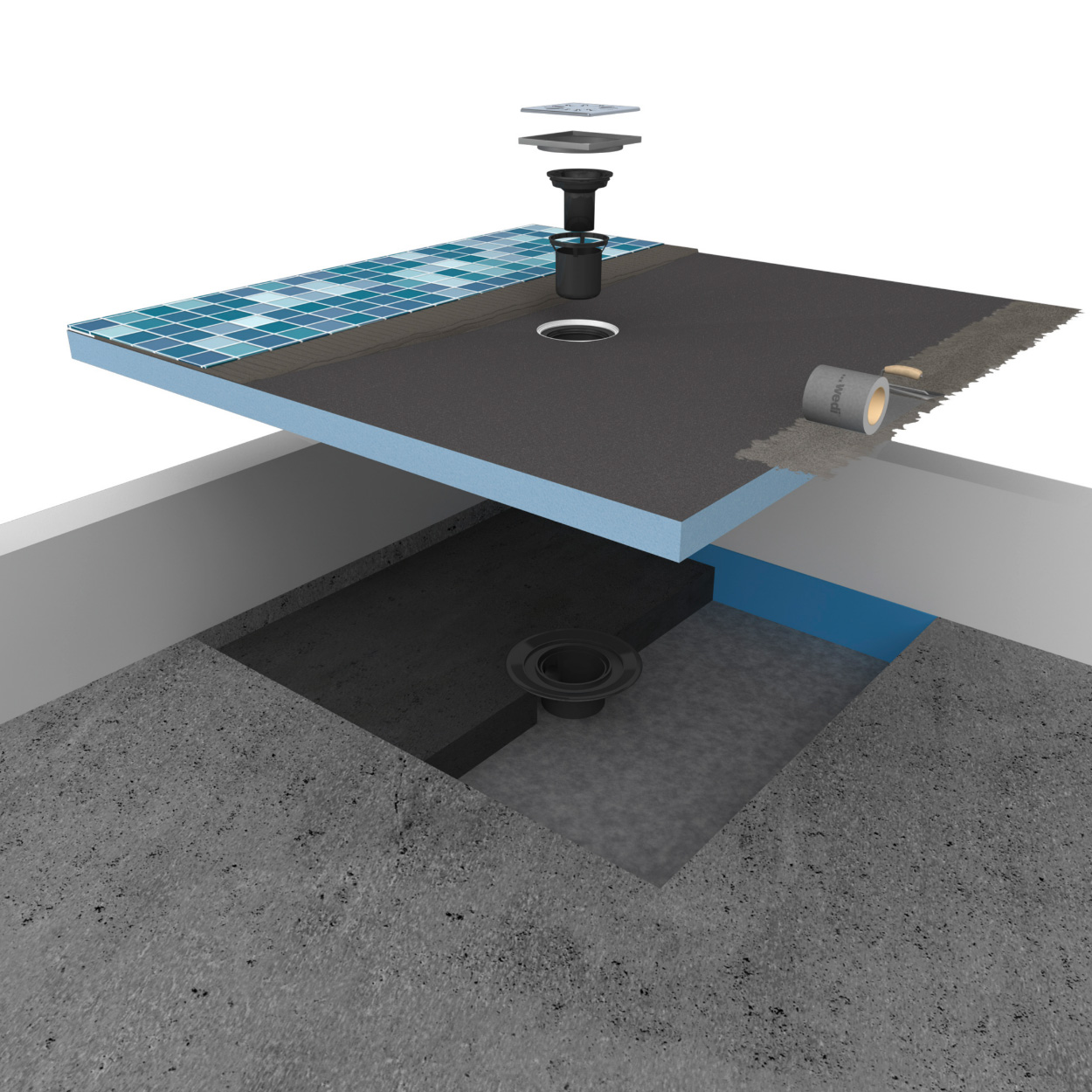

The Fundo Primo is lightweight and easy to handle. It can be installed on almost any load-bearing substrate and trimmed on site if required, while maintaining geometry and slope. When combined with wedi sealing systems, it forms a durable and fully waterproof shower solution for both renovation and new-build projects.
- Prefabricated shower tray – no wet screeds required
- Ready for tiling immediately
- Suitable for renovation and new builds
- Seamlessly compatible with wedi building boards and wall systems
Design freedom with waste covers and wedi Fundo Top
For the visible finish, the Fundo Primo can be combined with a range of wedi waste covers and optionally with wedi Fundo Top. This seamless surface replaces tiles in the shower area and creates a modern, low-maintenance, grout-free finish.
Specifications
| Manufacturer | wedi |
| Product name | wedi Fundo Primo |
| Type | Walk-in shower tray with flexible waste configuration |
| Available sizes | Multiple sizes available – see size options |
| Thickness | 40 mm |
| Waste | Not included – to be ordered separately |
| Waste position | Central or offset |
| Required waste | DN50 (horizontal or vertical), DN40 possible at low build-up height |
| Material | XPS rigid foam with mortar coating |
| Supplied with slope | Yes |
| Waterproof | Yes – 100% |
| Application | Walk-in showers and wet rooms |
A detailed technical drawing of this wedi Fundo Primo shower tray is available on request.
Part of the complete wedi system
The wedi Fundo Primo works seamlessly with wedi building boards, wedi Tools, sealing systems, slope boards and wedi Fundo Top to create a flexible and technically reliable system for waterproof bathrooms. Ideal when custom sizing, freedom of design and full control over the waste configuration are required.
