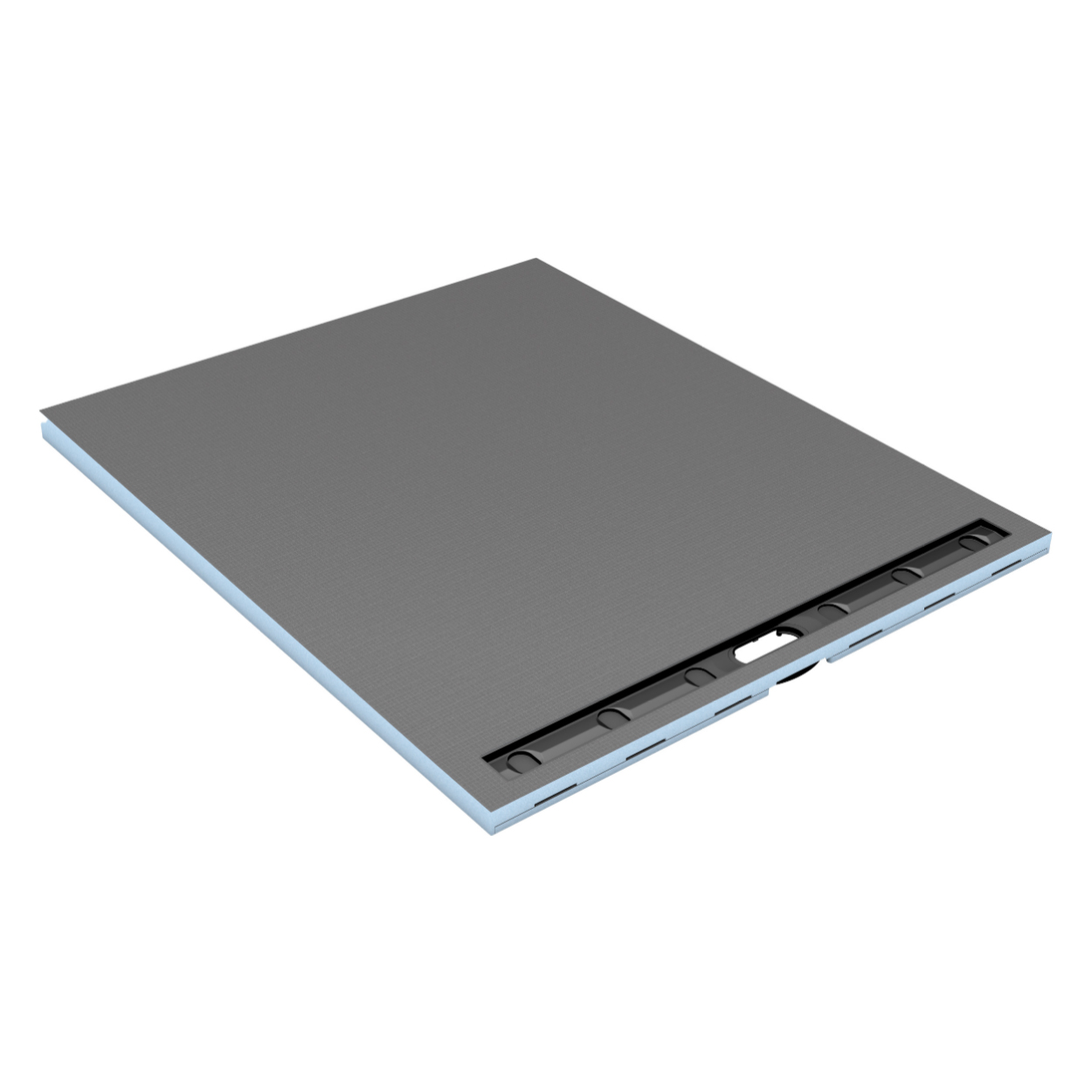

wedi Fundo Riolito Neo – Shower tray with linear drain positioned close to the wall
The wedi Fundo Riolito Neo is a prefabricated shower tray with a linear drain positioned close to the wall, designed for a clean, minimalist shower layout. Supplied with a factory-formed slope and a fully waterproof XPS core, this shower tray offers a reliable and flexible solution for modern walk-in showers in both renovation and new-build projects.
➕ Linear drain positioned close to the wall for a sleek appearance
➕ 100% waterproof XPS shower tray
➕ Prefabricated slope for reliable water drainage
➕ Drain and cover to be selected separately
➕ Lightweight and easy to cut to size
➕ Suitable for tiles or wedi Fundo Top seamless surface
Technical specifications
- Type: Shower tray with linear drain
- Thickness: 50 mm (60 mm for selected sizes)
- Drain: Linear drain (not included)
- Drain position: Off-centre, close to the wall
- Material: XPS rigid foam with reinforced mortar coating
- Supplied with slope: Yes
Clean design with maximum installation flexibility
The wedi Fundo Riolito Neo combines modern aesthetics with proven wedi system reliability. By choosing the drain, cover and optional accessories yourself, you can tailor the shower tray perfectly to your project while maintaining full control over design and performance.
wedi Fundo Riolito Neo – shower tray with wall-adjacent linear drain
The wedi Fundo Riolito Neo is a prefabricated walk-in shower tray featuring a linear drain positioned close to the wall. It was developed as a refined evolution of the original Riolito, offering a cleaner visual transition between floor and wall while maintaining the same proven wedi performance and reliability.

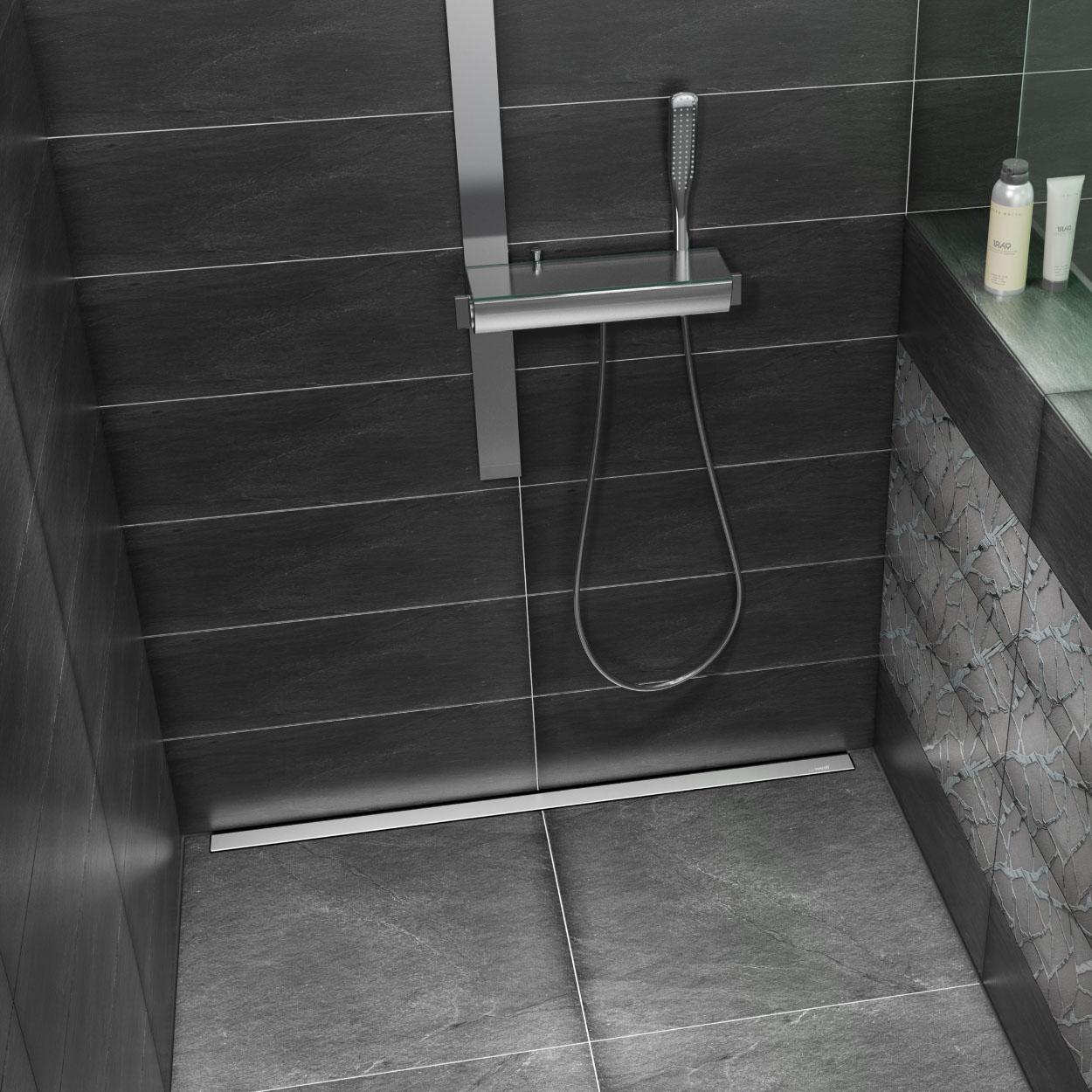

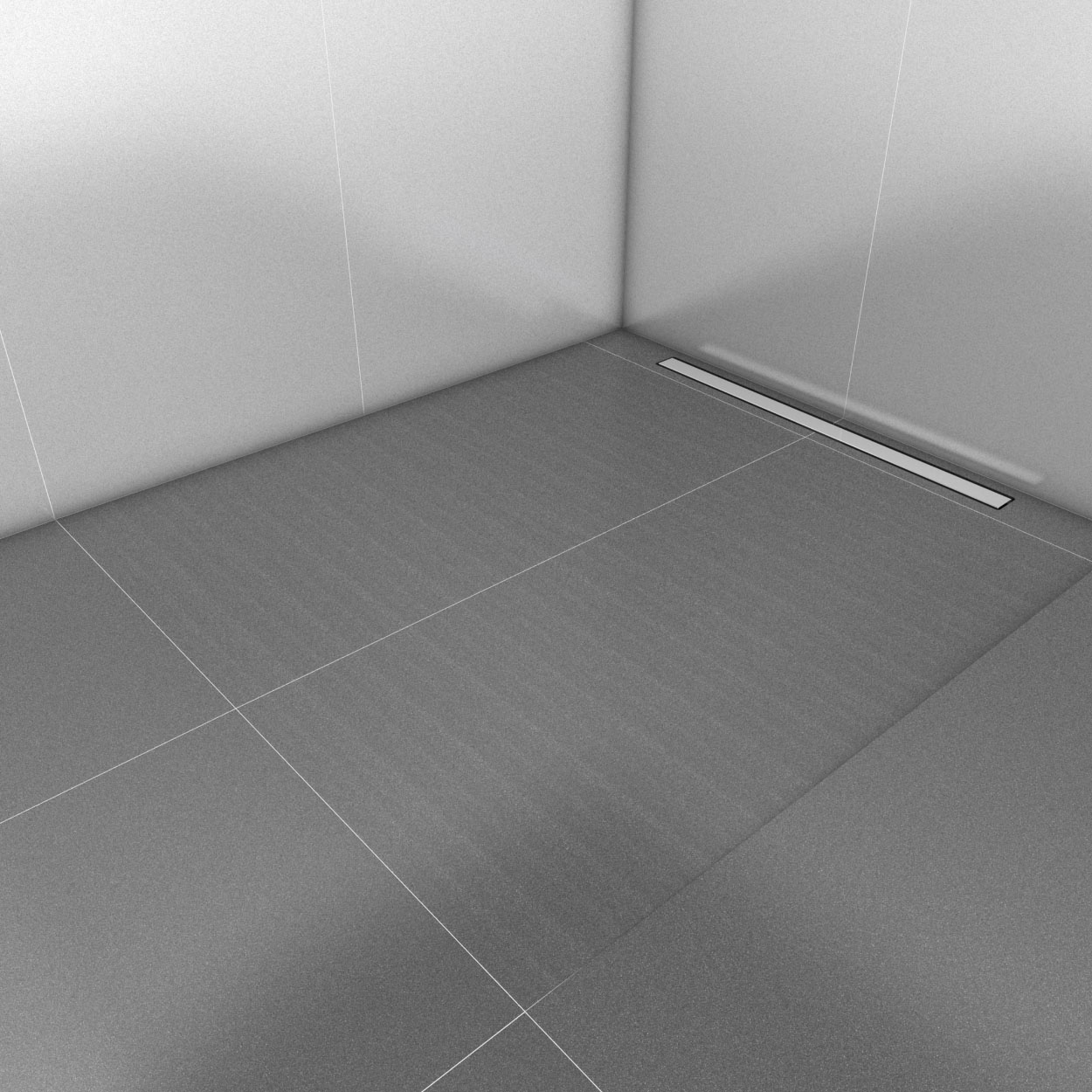

Minimalist design with a wall-adjacent drain
Placing the drain close to the wall creates a calm, uninterrupted shower floor and enhances the overall design of the bathroom. Unlike the standard Riolito, the Riolito Neo has no raised transition towards the drain, resulting in a sleek, modern appearance that is especially popular in high-end residential and wellness projects.
- Linear drain positioned close to the wall
- Clean, minimalist shower floor design
- No raised transition in the shower surface
- Ideal for modern bathrooms and wellness spaces

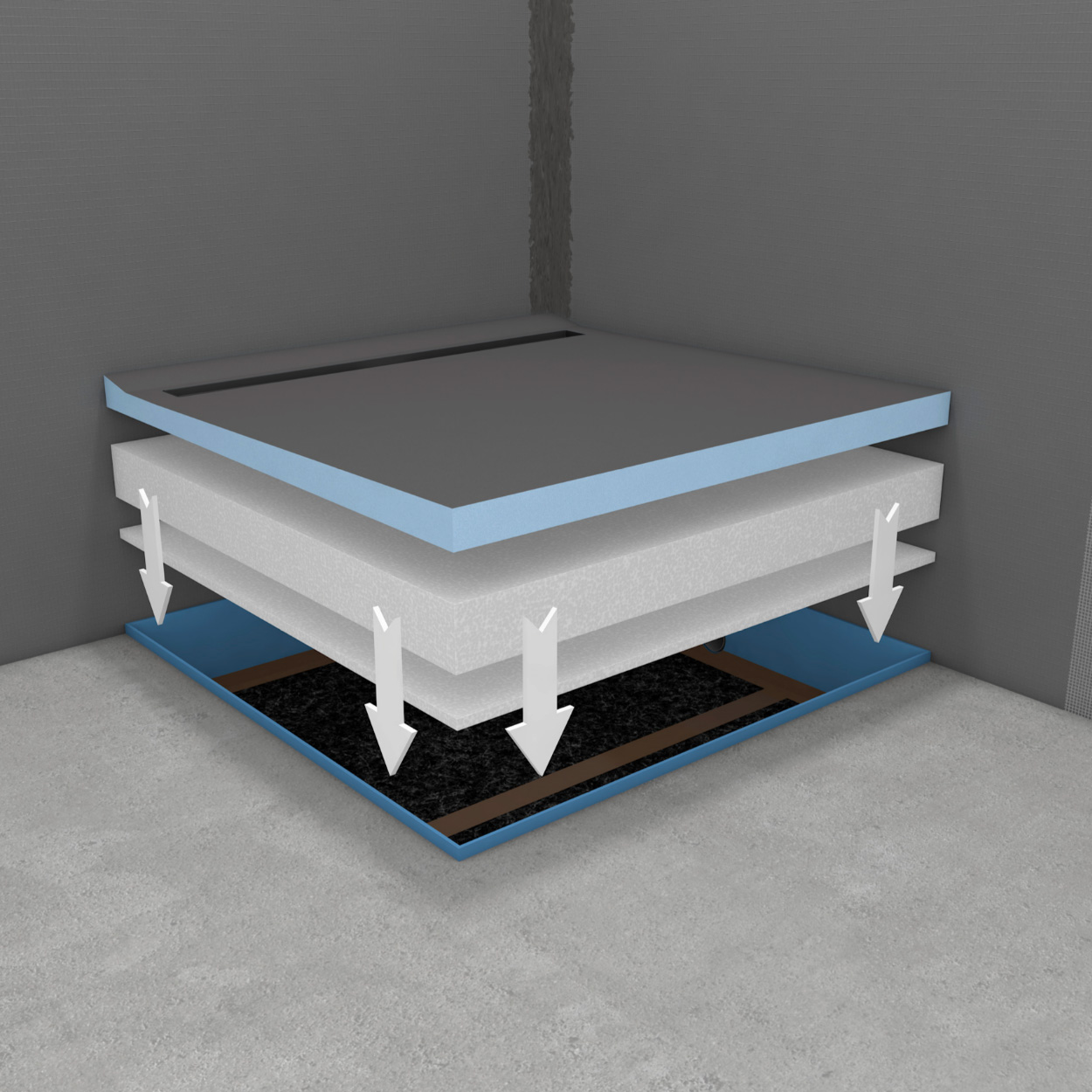

Prefabricated slope and 100% waterproof base
Like all wedi Fundo shower trays, the Riolito Neo is manufactured with a precise, factory-formed slope that ensures reliable drainage towards the linear drain. The core is made from closed-cell extruded polystyrene (XPS), which is fully waterproof and does not absorb moisture. The reinforced mortar surface is ready for direct tiling or for finishing with wedi Fundo Top.

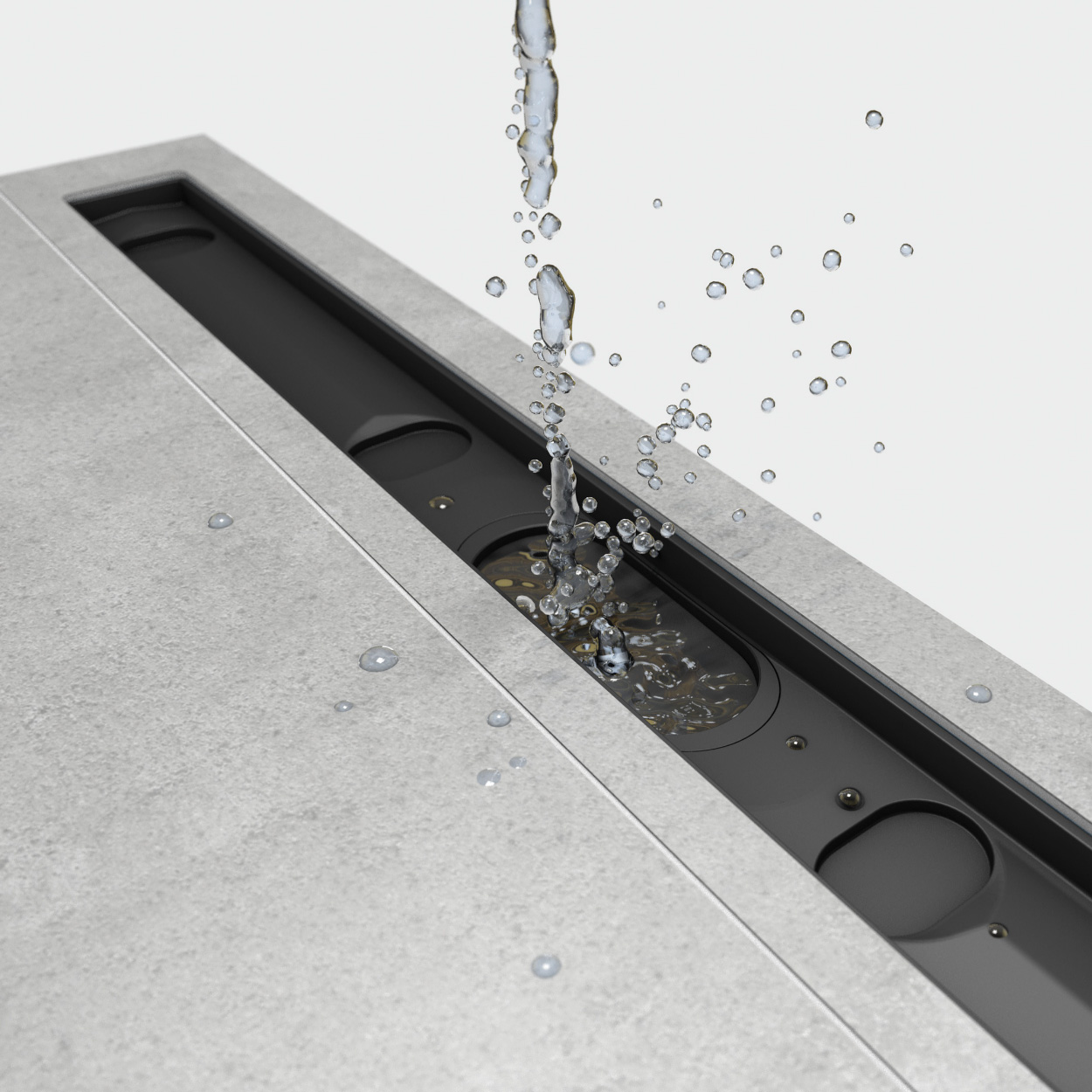

Drain and accessories selected to suit your project
The wedi Fundo Riolito Neo is supplied without a fixed drain, allowing you to choose the most suitable wedi linear drain and cover for your installation. A DN 50 drain is typically used, while a DN 40 drain can be selected where installation height is limited. Optional accessories such as slope profiles, sealing sets or a channel frame allow for a perfectly finished result.
- Drain and cover not included
- Suitable for DN 50 drains (DN 40 possible with limited build-up height)
- Optional slope profiles and sealing accessories
- Compatible with wedi Fundo Top seamless surfaces

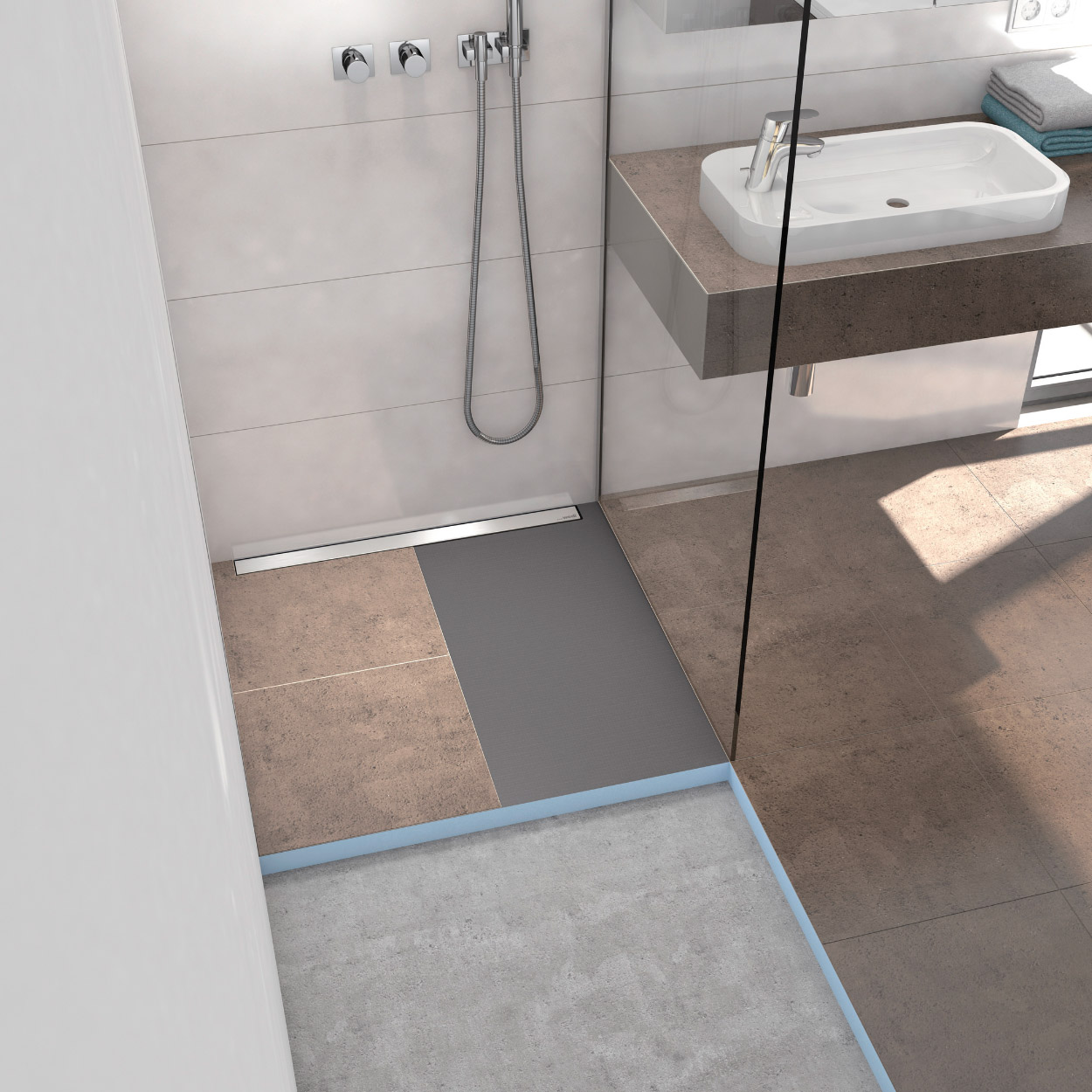

Easy installation for renovation and new build
The Riolito Neo is lightweight, easy to handle and can be cut to size on site while maintaining the slope geometry. When installed in combination with wedi sealing systems, it forms a fully waterproof shower solution that meets the highest technical and design standards.
- Prefabricated shower tray – no wet screeds
- Directly tileable
- Suitable for renovation and new construction
- Fully compatible with the wedi building system
Specifications
| Manufacturer | wedi |
| Product name | wedi Fundo Riolito Neo |
| Type | Shower tray with linear drain |
| Available sizes | Multiple sizes available – see selection |
| Thickness | 50 mm (60 mm for selected sizes) |
| Drain | Linear drain (not included) |
| Drain position | Off-centre, close to the wall |
| Material | XPS rigid foam with mortar coating |
| Supplied with slope | Yes |
| Waterproof | Yes – 100% |
| Application | Walk-in showers and wet rooms |
A detailed technical drawing of the wedi Fundo Riolito Neo shower tray is available on request.
Part of the complete wedi system
The wedi Fundo Riolito Neo integrates seamlessly with wedi building boards, sealing systems, drains and wedi Fundo Top surfaces, forming a complete and reliable system for waterproof bathroom construction with maximum design freedom.
