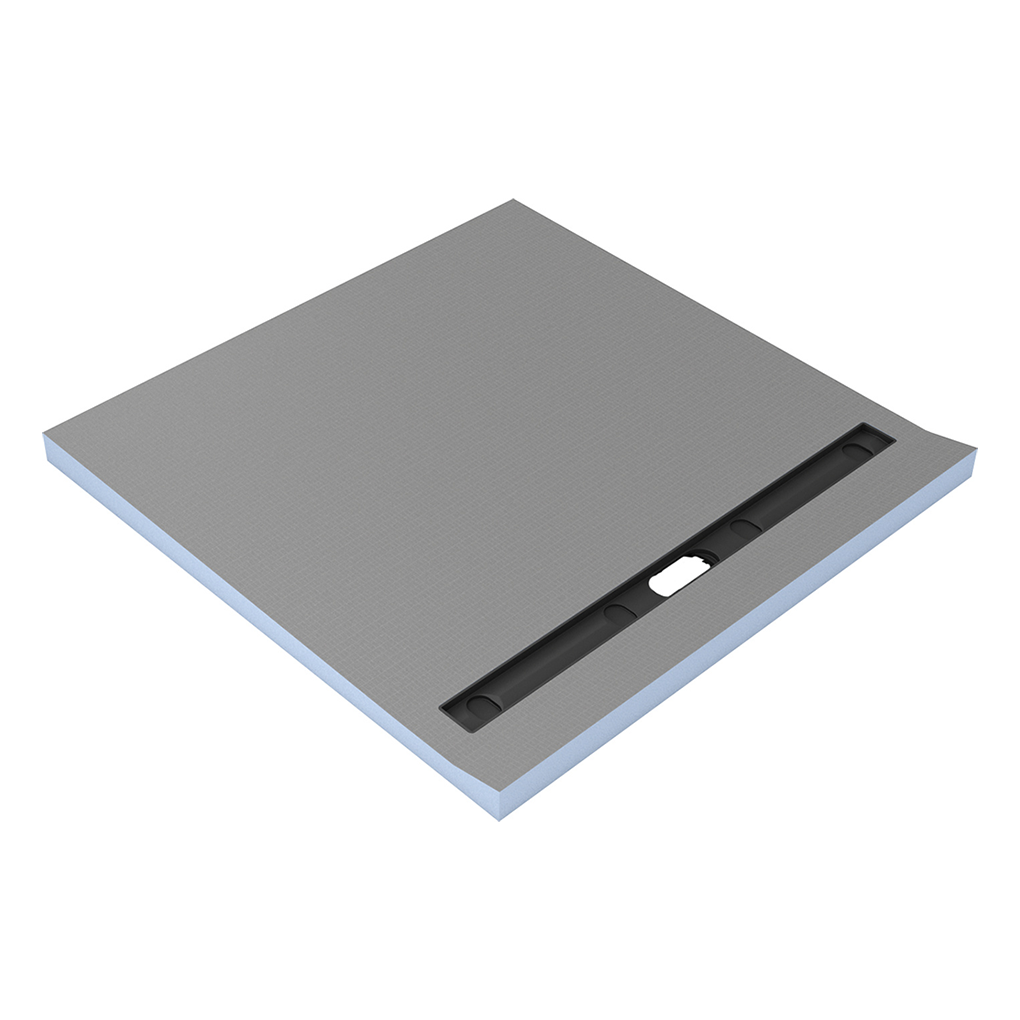

wedi Fundo Riolito – Shower tray with linear drain and integrated upstand
The wedi Fundo Riolito is a prefab shower tray with a linear drain and a subtle raised section between the wall and the drain. This distinctive design detail creates a clean visual separation while ensuring reliable water guidance. With a total installation height of just 50 mm, the Riolito is ideal for modern walk-in showers in both renovation and new-build projects.
➕ Linear drain with refined, integrated upstand
➕ 100% waterproof XPS shower tray
➕ Prefabricated slope for reliable drainage
➕ Suitable for tiling or wedi Fundo Top
➕ Cut-to-size on site
➕ Ideal for contemporary, design-led bathrooms
Technical specifications
- Type: Walk-in shower tray with linear drain
- Installation height: 50 mm (60 mm for 180 × 90 cm)
- Drain: Linear drain (separate drain body required)
- Drain position: Off-centre, close to the wall
- Material: XPS rigid foam with reinforced mortar coating
- Prefabricated slope: Yes
Design and performance combined

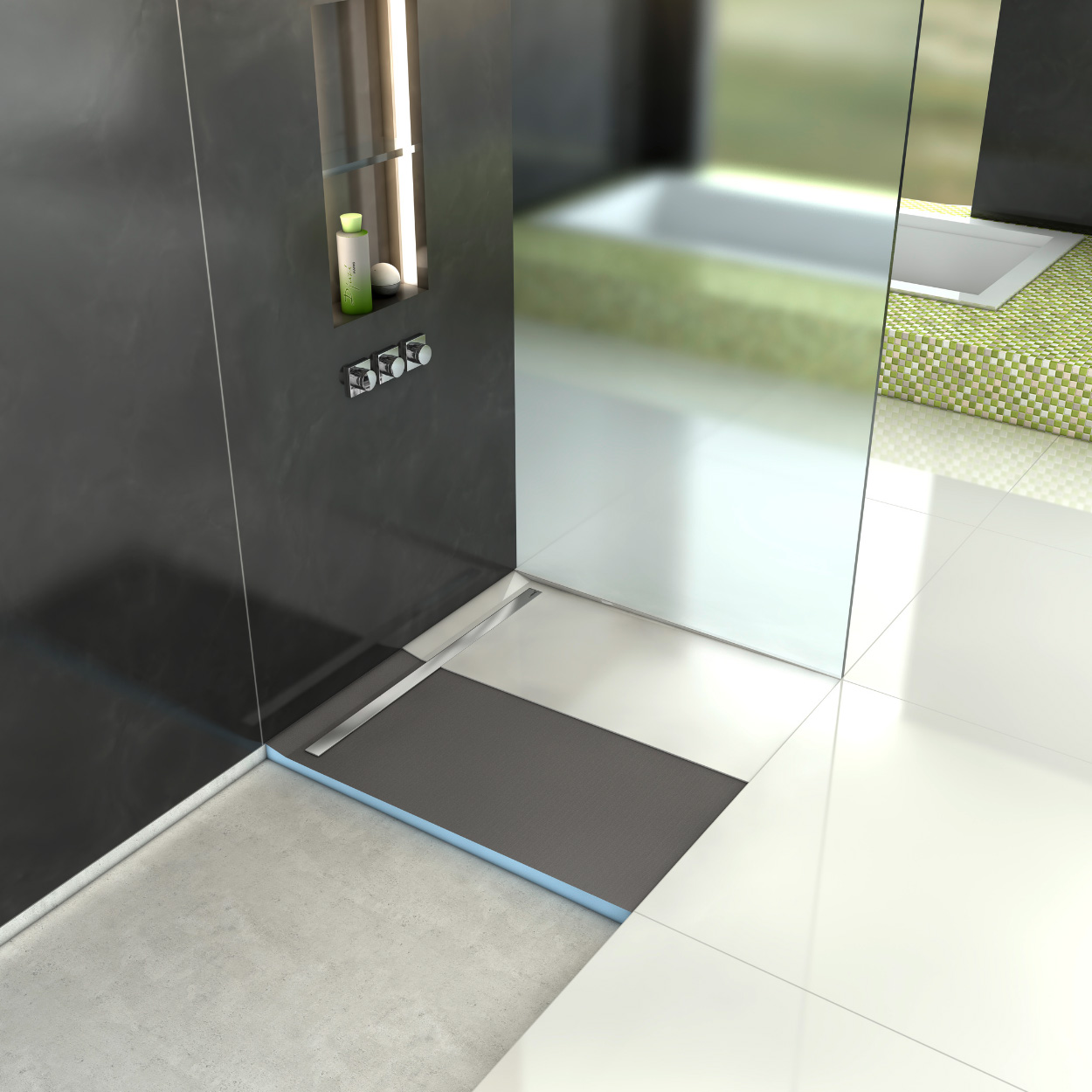

The wedi Fundo Riolito combines technical reliability with a distinctive architectural look. By integrating a gentle raised section between the wall and the drain, this shower tray offers both visual depth and functional water control — a premium solution for high-end bathrooms.
wedi Fundo Riolito – linear-drain shower tray with integrated design detail
The wedi Fundo Riolito is a prefabricated walk-in shower tray with a linear drain and a characteristic raised section between the wall and the drain channel. This design element sets the Riolito apart from other linear-drain shower trays and creates a clean, architectural transition at the wall side. As part of the complete wedi system, the Riolito provides a safe, waterproof and tile-ready base for modern bathrooms.
Distinctive design with functional benefits
Unlike fully wall-flush drain solutions, the Fundo Riolito features a gently rising section between the wall and the drain. This detail enhances visual depth and ensures controlled water flow towards the drain, while maintaining a minimalist and high-end appearance. It is an ideal choice for designers and installers looking for a balance between aesthetics and proven construction logic.
- Linear drain positioned close to the wall
- Integrated raised section for visual structure
- Perfect for design-oriented walk-in showers
- Suitable for residential and wellness applications
Waterproof core and prefabricated slope
The core of the Fundo Riolito consists of closed-cell extruded polystyrene (XPS), which is completely waterproof and does not absorb moisture. The surface is finished with a robust, fibre-reinforced mortar layer, allowing direct tiling or installation of wedi Fundo Top. The factory-made slope reliably guides water towards the linear drain.

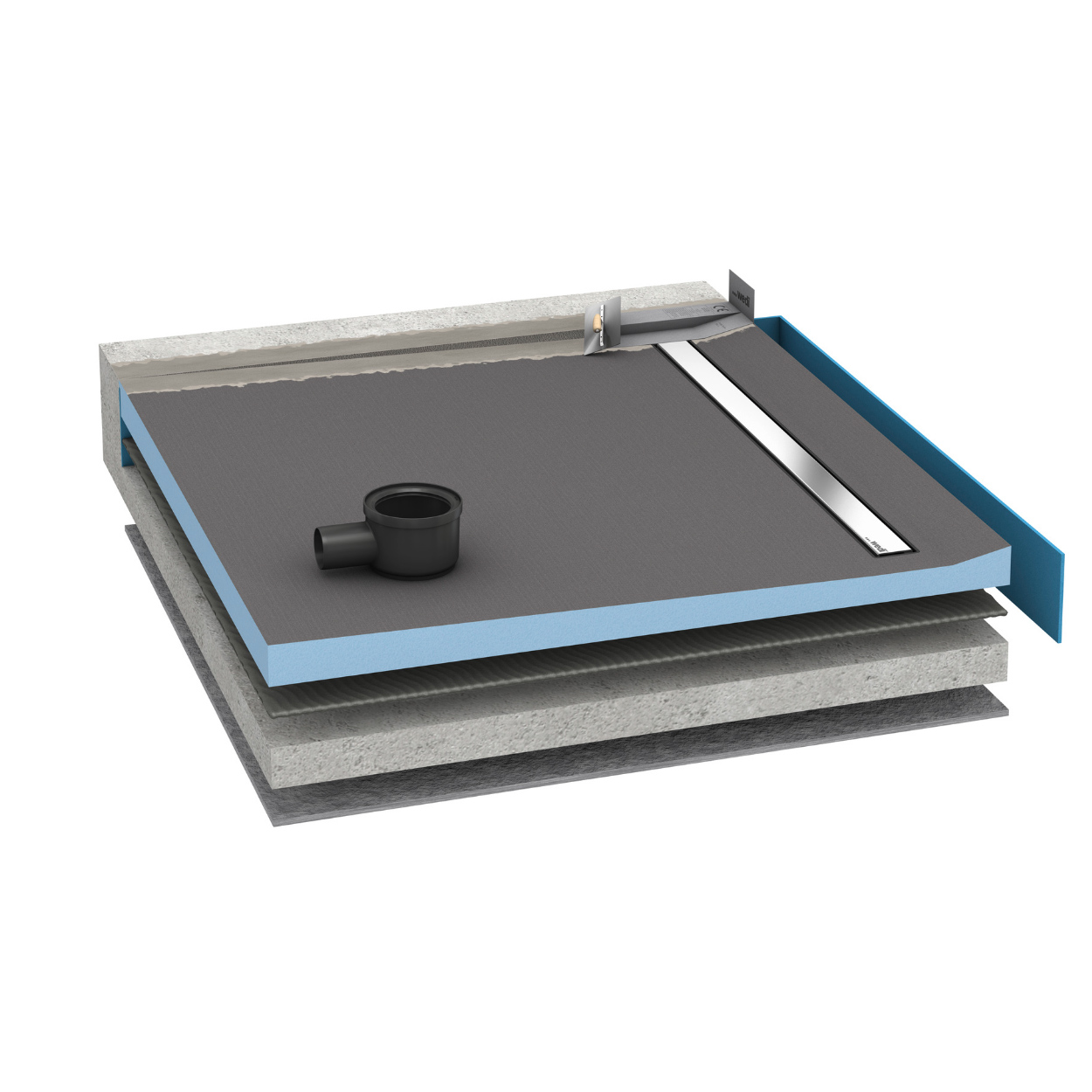

Flexible drain selection
The Fundo Riolito is supplied without a fixed drain body, allowing you to choose the appropriate wedi linear drain system for your installation. In most cases, a DN 50 drain is used, with DN 40 available for situations with limited installation height. The adjustable stainless steel drain cover enables precise height alignment with tiles or surface finishes.
- Drain body not included – order separately
- Compatible with wedi linear drain systems
- DN 50 recommended, DN 40 possible for low build-ups

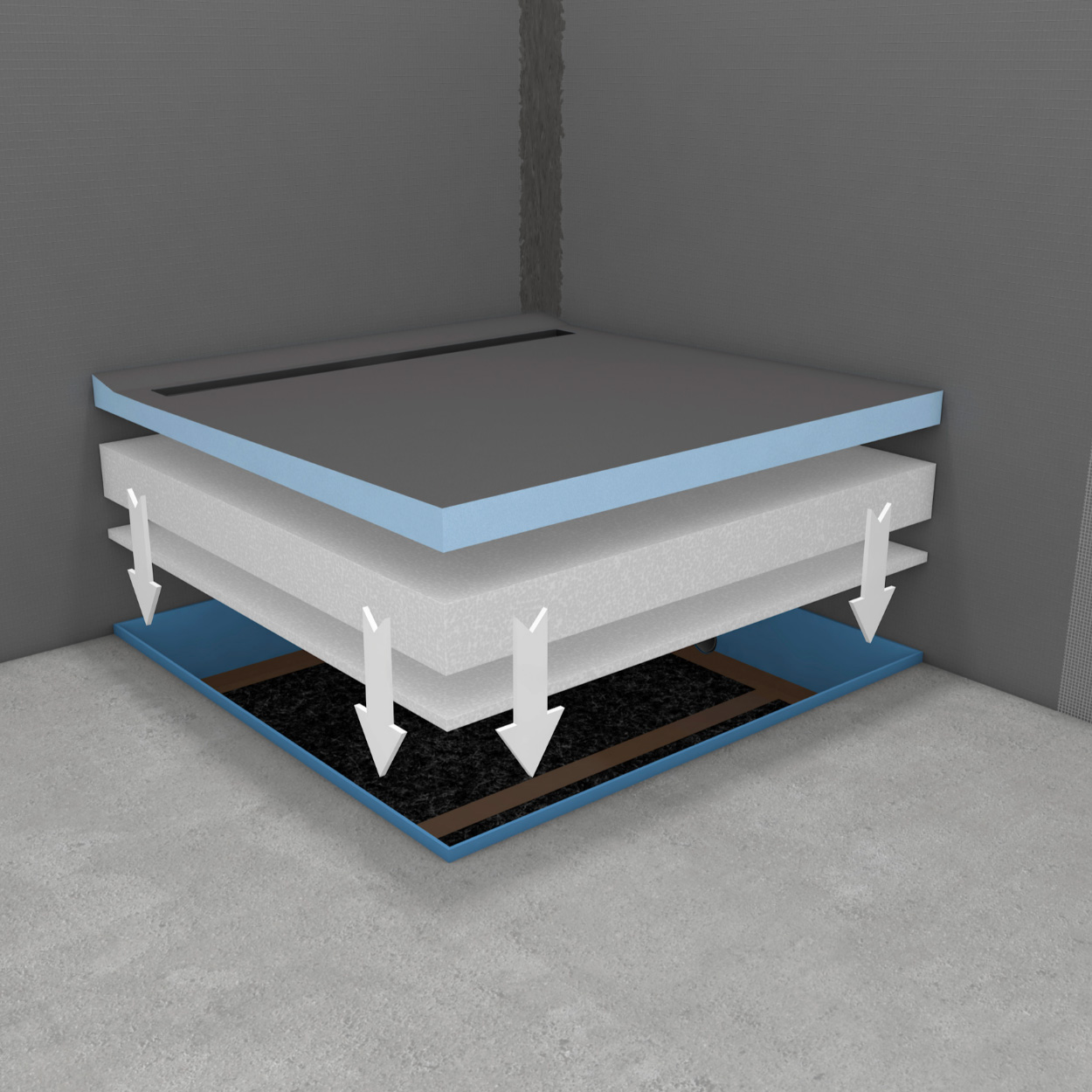

Fast installation for renovation and new build
The Fundo Riolito is lightweight, easy to handle and can be cut to size on site while maintaining its geometry and slope. When combined with wedi sealing systems, it forms a fully waterproof shower solution that meets the highest standards for durability and safety.
- Prefab shower tray – no wet screeds
- Tile-ready surface
- Suitable for renovation and new construction
- Seamlessly compatible with wedi building boards
Specifications
| Manufacturer | wedi |
| Product name | wedi Fundo Riolito |
| Type | Walk-in shower tray with linear drain |

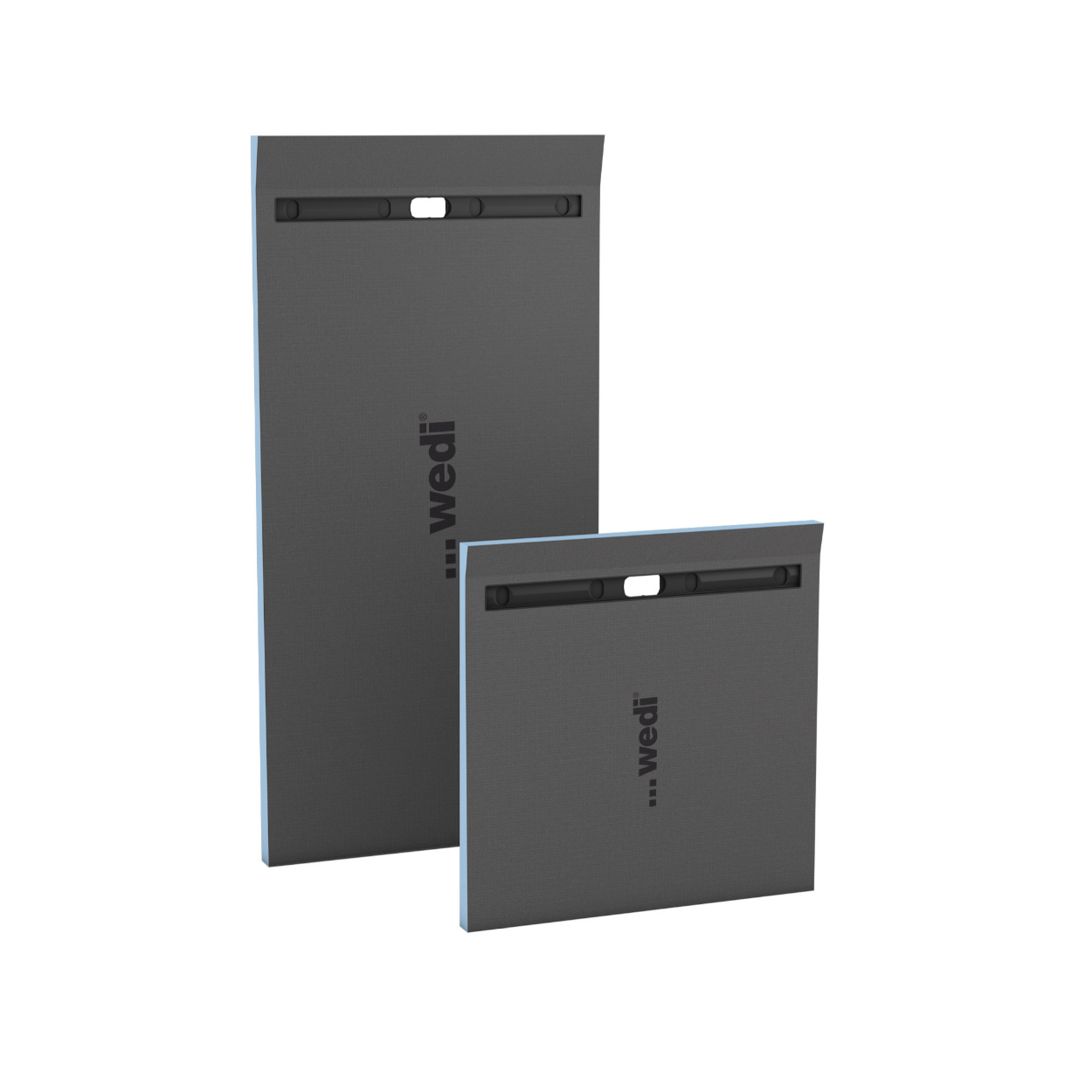

| Available sizes | Multiple sizes available – see selection list |
| Installation height | 50 mm (60 mm for 180 × 90 cm) |
| Drain | Linear drain (not included) |
| Drain position | Off-centre, near the wall |
| Material | XPS rigid foam with mortar coating |
| Prefabricated slope | Yes |
| Waterproof | Yes – 100% |
Detailed technical drawings of the wedi Fundo Riolito are available on request.
Part of the complete wedi system
The wedi Fundo Riolito integrates seamlessly with wedi building boards, sealing systems, linear drains and wedi Fundo Top, creating a complete, reliable system for modern, waterproof bathrooms.
