wedi Subliner Flex – Decoupling Membrane 30m

wedi Subliner Flex – Decoupling membrane for stress-free tiled floors

✔️ Decoupling and crack-bridging   ✔️ Reduces stress between substrate and tiles   ✔️ Ideal for renovation and indoor applications

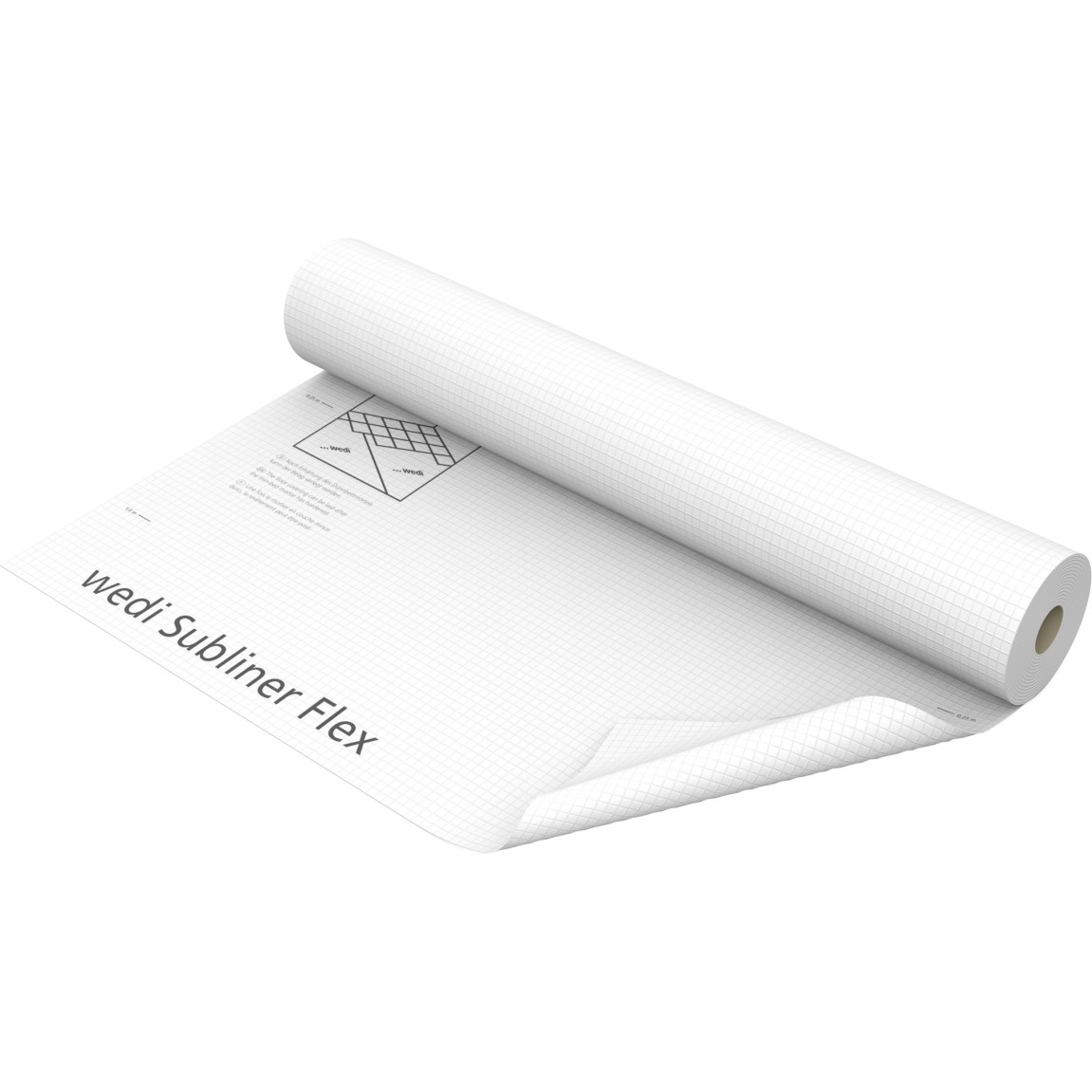

The wedi Subliner Flex is a stable, crack-bridging decoupling membrane that absorbs movement and stress between the substrate and tiled surface. It prevents cracks in tile adhesive or screed layers caused by thermal expansion or substrate movement. Reinforced with a glass fibre mesh and coated on both sides, it provides strong adhesion and a reliable bond.

➕ Size: 1,000 mm × 30 m
➕ Thickness: approx. 0.85 mm
➕ Material: polypropylene fleece with glass fibre reinforcement
➕ Decoupling and crack-bridging
➕ For floors and walls (indoor use)
➕ Apply with wedi 320 beneath and wedi 520 on top of the membrane

The stress-free solution within the wedi range

The Subliner Flex is designed for use where waterproofing is not required but stress absorption is essential. Unlike the Subliner Dry or Dry & Flex, the Flex focuses exclusively on decoupling and substrate stability for tiled surfaces.

Ideal for renovation and underfloor heating

With its minimal thickness and flexibility, the Subliner Flex is perfect for renovation projects or floors with underfloor heating. It reduces tension and provides long-term stability while maintaining a low installation height.

wedi Subliner Flex – Decoupling membrane for tiled floors and walls

The wedi Subliner Flex is a fibre-reinforced decoupling membrane that reduces stress between the substrate and tiled surface. It prevents cracks and detachment of tiles caused by thermal or structural movement. Its low thickness makes it ideal for renovation and refurbishment projects.

Stress absorption and crack prevention

The Subliner Flex absorbs stresses caused by temperature changes, moisture or differing material expansion rates between substrate and tiles. The glass fibre mesh distributes pressure evenly across the surface, ensuring a long-lasting and stable tiled finish.

Perfect for renovation and underfloor heating

At just 0.85 mm thick, the Subliner Flex is ideal for low build-up floors and renovation projects. It can be used on cement screeds, anhydrite, wood substrates and existing tiled floors. The membrane is also suitable for underfloor heating systems, ensuring even heat distribution and stress relief.

Use with wedi system components

For best results, apply wedi 320 adhesive beneath the membrane and wedi 520 waterproofing slurry above it before applying the tile adhesive. This ensures a stable, secure bond between the substrate and the tile finish.

Differences between Subliner versions

The Subliner Flex provides only decoupling and crack-bridging. The Subliner Dry is fully waterproof, while the Subliner Dry & Flex combines both waterproofing and decoupling functions. Each version is designed for a specific application within the wedi system.

Advantages of wedi Subliner Flex

• Decoupling and crack-bridging membrane
• Reduces stress between substrate and tile covering
• Ideal for renovation and underfloor heating
• Low build-up height (0.85 mm)
• Glass fibre reinforcement for surface stability
• Easy to install with wedi 320 and wedi 520

Specifications
